Cables and other parts

	Cables for PC/104 I/O Modules
	Cables for Single Board Computers
	Get an online quote

top

Cables for PC/104 I/O Modules

FEATURES

	Easy protyping and system hookup
	All cables 18 inches long
	34-pin IDC to IDC
	40-pin IDC to IDC
	50-pin IDC to IDC
	Dual serial port cable

These ribbon cables have standard IDC connectors for mating with many of our I/O modules. Standard length is 18 inches. Select 34-pin cable for Diamond-32 digital I/O. Select 40-pin cable for Sapphire and Pearl. Select 50-pin cable for Diamond-32, Diamond-16, Diamond, Ruby, and Onyx. Call for other widths or lengths.

C-40-18 dual connector

C-50-18 dual connector

C-DB9M-2 for EMM boards

C-DB9M-4 for EMM boards

top

Cable list by board

Each board uses different types and different quantities of cables:

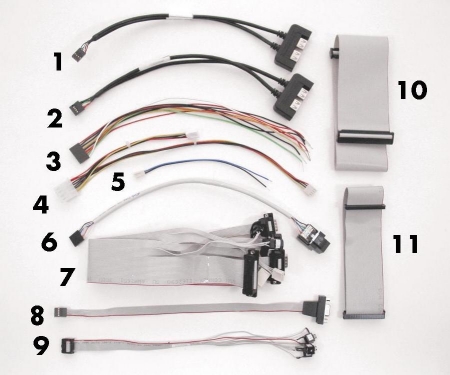

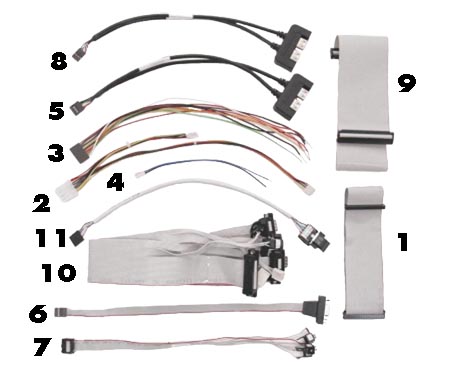

Athena and Athena II

Key	Part No.	Description
1	6981032	USB cable, ports 2 & 3
2	6981012	USB cable, ports 0 & 1
3	6981009	Power input cable
4	6981006	Power output cable
5	6981011	External battery cable
6	C-PRZ-02	Ethernet cable
7	C-PRZ-01	Breakout cable: serial, parallel, PS/2, utility
8	6981030	VGA cable
9	6981031	Audio cable
10	C-50-18	Data acquisition, 50 conductor .1" ribbon cable
11	6981004	IDE, 44 conductor 2mm ribbon cable

The above are also available as a kit, C-ATH-KIT:

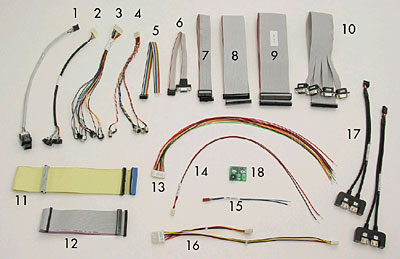

Hercules II

Item	Qty	Part No.	Description
1	1	698002	Ethernet cable
2	1	6981022	Dual-port PS/2 cable
3	1	6981025	Audio I/O cable
4	1	6981017	TV output cable
5	1	6981018	Speaker output cable
6	1	6981024	VGA output cable
7	1	C-20-18	20-conductor ribbon cable
8	1	C-40-18	40-conductor ribbon cable
9	1	C-50-18	50-conductor ribbon cable
10	1	C-DB9M-4	4-port serial port cable
11	1	6981026	40-conductor UDMA-100 IDE cable
12	1	6981004	44-conductor IDE cable
13	1	6981015	Power input cable, 10 conductors
14	1	6981016	High-power input cable, 2 conductors
15	1	6981011	External battery cable
16	1	6981006	Output power cable
17	2	6981012	Dual-port USB cable
18	1	861002	Utility features assembly

The above are also available as a kit, C-HRCEBX-KIT:

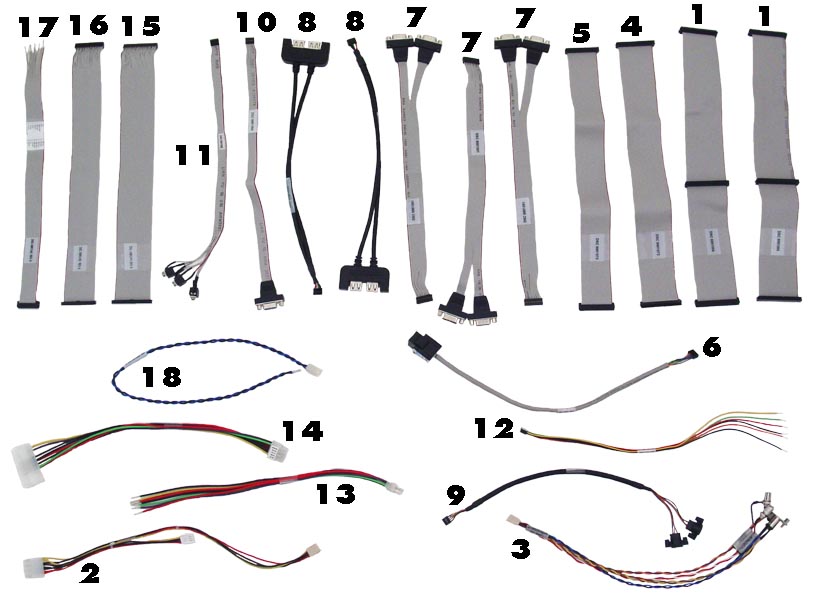

Neptune

Key	Part No.	Description
1	6981072	2mm IDC40 to 2mm IDC40
2	6981073	2mm IDC34 to 2mm IDC34
3	6981081	2mm 2x10 crimp to 2x DB9M
4	6981082	2mm 2x5 crimp to dual USB A
5	6981090	2x4 high power to flying leads
6	6981091	2x4 high power to ATX 2x10
7	6981092	1x6 .156" to flying leads
8	6801020	Mounting hardware kit
9	6981093	PS-5V-04 transition to DB9
10	6981094	2mm 2x4 crimp to power switch
11	PNL-NPT-01	Panel I/O board

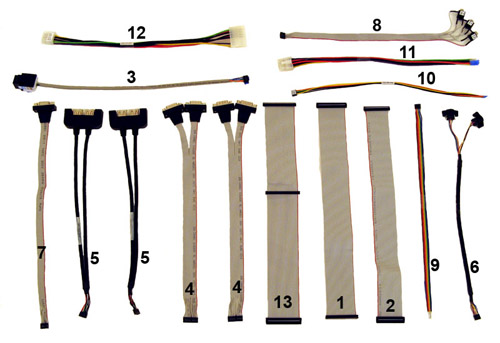

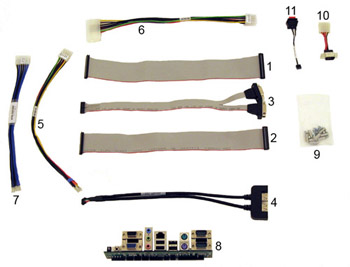

Poseidon

Key	Part No.	Description
1	6981072	Analog I/O, 2mm IDC40 to 2mm IDC40
2	6981073	Digital I/O, 2mm to 2mm IDC34
3	6981081	Dual Serial, 2mm to 2x DB9M
4	6981082	Dual USB, 2mm to dual USB A
5	6981090	Power input, 2x4 high power to flying leads
6	6981091	Power input ATX, 2x4 high power to ATX 2x10
7	6981092	Power out to P/S module, 1x6 .156" to flying leads
8	PNL-PSD-01	Panel Board I/O
9	6801020	Mounting hardware kit
10	6981093	Power adaptor, PS-5V-04 transition to DB9
11	6981094	Power switch, 2mm 2x4 crimp to power switch

Prometheus

Key	Part No.	Description
1	6981012	USB cable
2	C-PRZ-01	Breakout cable
3	C-50-18	50-conductor 18" ribbon cable
4	6981008	Floppy cable
5	6981004	IDE cable
6	C-PRZ-02	Ethernet cable
7	6981005	Auxillary serial port cable
8	6981006	Output power cable
9	6981009	Input power cable

The above are also available as a kit, C-PRZ-KIT:

PNL-Z32 Panel Board

Part No.	Description
6981011	2-conductor Jupiter-MM input power cable
6981013	10-conductor to 16-conductor VGA passthrough cable

Diamond-MM-32-AT

Part No.	Description
C-50-18	50-conductor 18" ribbon cable
C-34-18	34-conductor 18" ribbon cable

Diamond-MM-16-AT

Part No.	Description
C-50-18	50-conductor 18" ribbon cable

Diamond-MM-AT

Part No.	Description
C-50-18	50-conductor 18" ribbon cable

Diamond-MM

Part No.	Description
C-50-18	50-conductor 18" ribbon cable

Zircon-MM

Part No.	Description
C-50-18	50-conductor 18" ribbon cable

Ruby-MM

Part No.	Description
C-50-18	50-conductor 18" ribbon cable

Ruby-MM-1612

Part No.	Description
C-50-18	50-conductor 18" ribbon cable

Ruby-MM-416

Part No.	Description
C-50-18	50-conductor 18" ribbon cable

Garnet-MM-24

Part No.	Description
C-50-18	50-conductor 18" ribbon cable

Garnet-MM-48

Part No.	Description
C-50-18 (uses 2)	50-conductor 18" ribbon cable

Onyx-MM-DIO

Part No.	Description
C-50-18 (uses 2)	50-conductor 18" ribbon cable

Onyx-MM

Part No.	Description
C-50-18 (uses 2)	50-conductor 18" ribbon cable
C-14-18	14-conductor 18" ribbon cable

Quartz-MM

Part No.	Description
C-50-18	50-conductor 18" ribbon cable

Emerald-MM

Part No.	Description
C-DB9M-2 (uses 2)	Dual DB9 male to 20-pin header 18" cable

Emerald-MM-8

Part No.	Description
C-DB9M-4 (uses 2)	Quad DB9 male to 40-pin header 18" cable

Emerald-MM-DIO

Part No.	Description
C-DB9M-2 (uses 2)	Dual DB9 male to 20-pin header 18" cable
C-50-18 (uses 2)	50-conductor 18" ribbon cable

Crystal-MM-HP

(No cables available)

Opal-MM

Part No.	Description
C-40-18	40-conductor 18" ribbon cable

IR104

Part No.	Description
C-40-18	40-conductor 18" ribbon cable

(Discrete wiring used for relays)

Pearl-MM-S

(No cables available, uses discrete wiring)

Pearl-MM-P

Part No.	Description
C-40-18 (uses 2)	40-conductor 18" ribbon cable

Jupiter-MM

(No cables available, uses discrete wiring

Jupiter-MM-SIO

Part No.	Description
C-DB9M-2	Dual DB9 male to 20-pin header 18" cable

(Discrete wiring used for power connections)

Jupiter-MM-LP

(Discrete wiring used for power connections)

V-104

(No cables available, uses discrete wiring)

HE-104

(No cables available, uses discrete wiring)

top

Get an online quote

Cables and other parts

available models:

C-14-18

Ribbon cable, dual 14-pin connectors, 18 inches

C-20-18

Ribbon cable, dual 20-pin connectors, 18 inches

C-26-18

Ribbon cable, dual 26-pin connectors, 18 inches

C-34-18

Ribbon cable, dual 34-pin connectors, 18 inches

C-40-18

Ribbon cable, dual 40-pin connectors, 18 inches

C-50-18

Ribbon cable, dual 50-pin connectors, 18 inches

C-DB9M-1

Ribbon cable, EMM-OPT2/4 or Janus-MM, 10-pin to DB9M, 18 inches

C-DB9M-2

Cable, EMM-XT / EMM-DIO-XT, 2 DB9M to 1 IDC20, 18 inches

C-DB9M-4

Cable, 4 DB9M to 1 IDC40, 18 inches (for Hercules II and EMM-8)

CT-CABLE

Cable set for PC/104 boards; 3x DB9, 1x power, 2x DB25

580885

Prometheus mating connector, Robinson Nugent P50-080S-R1-TG

697001

Trimble Mini Magnetic Mount GPS Antenna, 15 Ft. Cable

698002

Ethernet cable (for Hercules II and Prometheus)

6981004

44-conductor IDE cable (for Hercules II, Prometheus, and Athena)

6981005

Cable, Prometheus 6-wire auxiliary serial ports

6981006

Output power cable (for Hercules II, Prometheus, and Athena)

6981008

Cable, 34-pin, dual floppy drive

6981009

Power input cable (for Athena)

6981011

External battery cable (for Hercules II, Athena, and Prometheus)

6981012

Dual-port USB cable (for Hercules II, ports 0/1 for Athena)

6981013

10-conductor to 16-conductor VGA passthrough cable

6981015

Power input cable, 10 conductors (for Hercules II)

6981016

High-power input cable, 2 conductors (for Hercules II)

6981017

TV output cable (for Hercules II)

6981018

Speaker output cable (for Hercules II)

6981022

Dual-port PS/2 cable (for Hercules II)

6981024

VGA output cable (for Hercules II)

6981025

Audio I/O cable (for Hercules II)

6981026

40-conductor UDMA-100 IDE cable (for Hercules II)

6981030

VGA cable (for Athena)

6981031

Audio cable (for Athena)

6981032

USB cable, ports 2/3 (for Athena)

6981035

Cable, Athena to PNL-Z32 VGA

6981040

Cable, PS-5V-03 to Morpheus adapter

6981041

Cable, PS-5V-03 to PNL-Z32 circular adapter

861002

Utility features assembly (for Hercules II)

891001

USB Floppy Drive

960010

Trimble Lassen SKII GPS Receiver Module

CC-PSD

Conformal Coating, Poseidon, all models

KIT-LCD-02

Hercules II/Athena LCD Kit, Includes LCD, Backlight, Cables

KIT-DRV-01

Hard Drive Accessory Kit, 80 GB 2.5-inch HD, HDD mounting kit, internal-mount CDROM drive with cable

C-ATH-KIT

Athena cable kit

ACC-HRCDAQ

Hercules II Data Acquisition Demo Board

DK-ATH-01

Athena development kit

PS-12V-01

12VDC adapter, universal input, IEC 3-prong plug + cable (for Hercules)

PS-5V-03

AC Adapter, Universal In, 5VDC/6A Out, For Athena and Prometheus

C-PRZ-KIT

Prometheus Cable Kit
