Products   >   Processor Modules   >   COM-based SBCs   >   COM Express Modules
FEATURES
COM Express Type 2 compliant
Intel Atom Z510 or Core 2 Duo LV CPUs
Up to 4GB of DDR2 SDRAM (CPU dependent)
Integrated I/O controllers:
 - Gigabit Ethernet
 - Up to three SATA ports and
   one IDE port (CPU dependent)
 - Eight USB 2.0 ports
 - CRT and LVDS video output
 - AC'97 link audio
 - 8-bit GPIO
Extended operating temperature, up to -40ºC to +85ºC (-40ºF to +185ºF)
ONLINE SUPPORT
Request Product information
Request Technical Support
DOWNLOADS
Magellan Datasheet
(.pdf, 142.6 kb)
CME-965 Datasheet
(.pdf, 317.0 kb)
CME-Atom Datasheet
(.pdf, 273.5 kb)
CME-965 User Manual
(.pdf, 941.2 kb)
CME-Atom User Manual
(.pdf, 921.6 kb)
Embedded Ready Subsystems whitepaper
(.pdf, 386.4 kb)
COM Express Atom COM Mechanical Drawing
(.pdf, 154.2 kb)
6884030 Heatspreader Drawing
(.pdf, 329.5 kb)
6884042 Heatspreader Drawing
(.pdf, 88.2 kb)
XP/XPe Ethernet Driver (Aurora, COM Exp, Magellan)
(.zip, 30.9 MB)
XP/XPe SATA Driver (Aurora, COM Exp, Magellan)
(.zip, 429.4 kb)
XP/XPe Audio Driver (COM Exp, Magellan)
(.zip, 42.0 MB)
XP/XPe Chipset Driver (COM Exp, Magellan)
(.zip, 2.5 MB)
XP/XPe VGA Driver (COM Exp, Magellan)
(.zip, 31.8 MB)

COM Express Modules

Low-power, high-performance, wide-temperature COM Express computer-on-modules

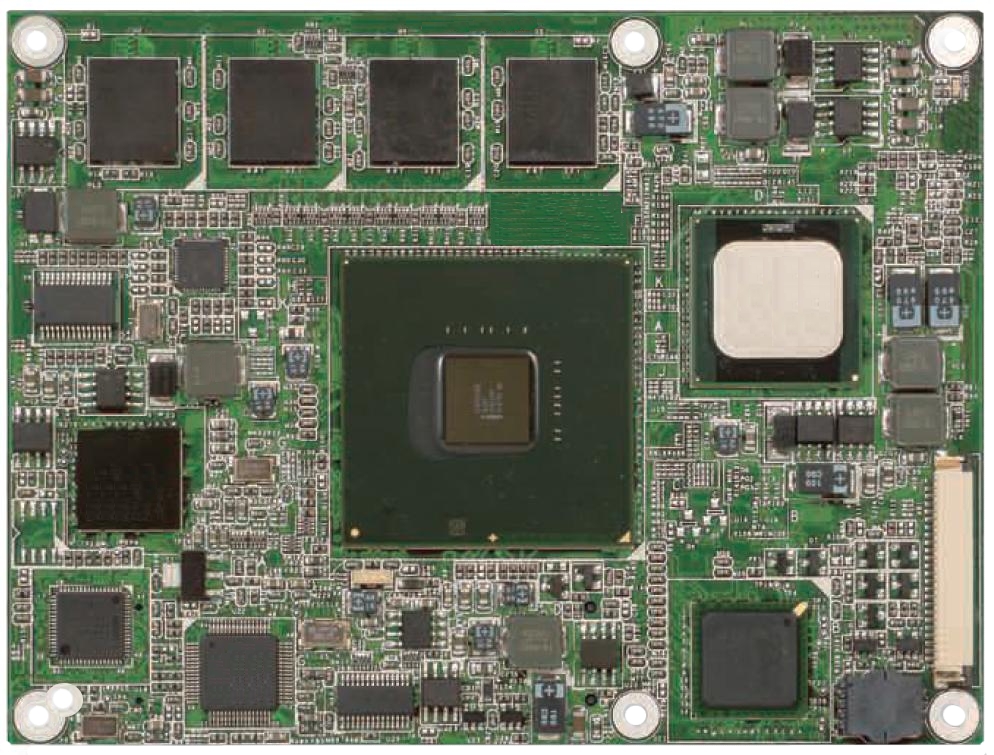

CME-Atom
(click to enlarge)

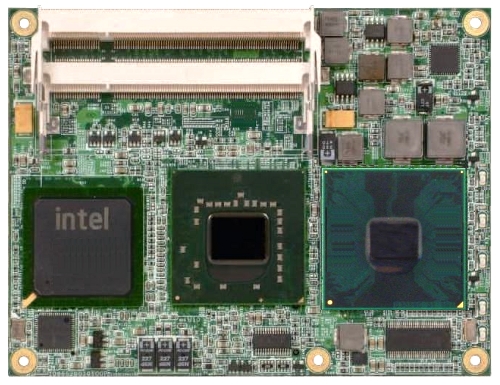

CME-965
(click to enlarge)
Description
Block Diagram
Specifications
Get An Online Quote

Description

These compact, low-power, and powerful COM Express modules are suitable for powering a wide range of embedded applications. Additionally, to support real-world applications subject to temperature extremes these modules are rated for operation over enhanced (-20 to +71 deg. C) and extended (-40 to +85 deg. C) temperature ranges.

Each Diamond COM Express module integrates a complete set of PC-compatible functions, including a low-power, high-performance Intel processor and from 1GB to 4GB of soldered-on or SO-DIMM system memory. In addition, the modules provides interface controllers for high-resolution displays, gigabit Ethernet, and SATA storage devices, as well as multiple USB 2.0, parallel, digital I/O, and audio ports.

By plugging these powerful, plug-and-play COMs into standard or custom application baseboards, OEMs can reduce development costs, minimize design risks, and shorten time-to-revenue while benefiting from the latest embedded technologies. The CME-Atom and CME-965 also come pre-integrated in our Magellan Embedded-Ready Subsystem.

Software Support

For maximum application flexibility, our COM Express modules can be interfaced to application-specific circuitry via a choice of PCI Express, PCI, and LPC expansion buses

COM Express Development Systems

In addition to the COM Express modules themselves, we offer pre-integrated development kits based on generic or application-oriented COM Express baseboards. This increases project efficiency and reduces risks by providing a known good environment for rapid application development.


Magellan is a COM Express-sized COM Express baseboard
To simplify the development process, these kits' COM Express baseboards each provide I/O connectors for quick and easy access to nearly all system interfaces. They also come with SO-DIMM memory, an extensive set of interface cables, and full documentation and software.

In addition to these features, the Magellan baseboard (photo at right) adds four serial ports, RS-232/422/485 buffering, an AC'97 audio CODEC, digital I/O, a second gigabit Ethernet LAN interface, and stackable PCI-104 or SUMIT-ISM expansion along with an on-board FeaturePak socket.

Custom Baseboard Designs

Through more than 20 years of experience producing industry-leading data acquisition I/O on PC/104, PC/104-Plus, SUMIT, and FeaturePak modules and single-board computers, Diamond has developed an extensive library of analog, digital, and I/O interface technology. This expertise is now available in the form of application-specific baseboards tuned to fit precise customer requirements, coupled with COM Express COMs that implement the processing power needed to drive the application.

top
Block Diagram

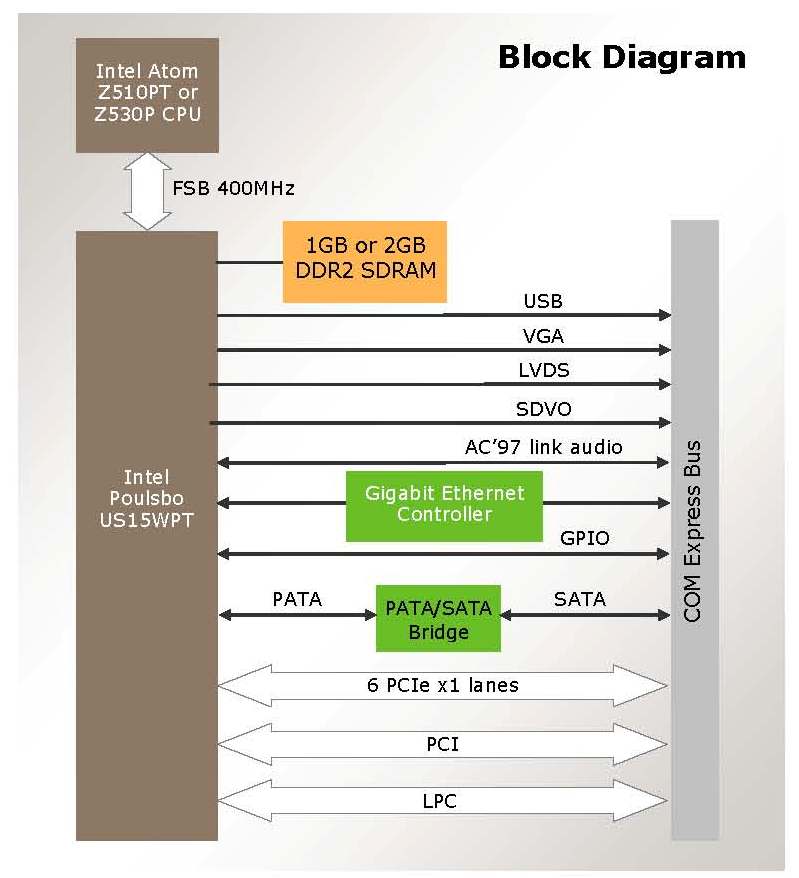

CME-Atom Block Diagram
(click to enlarge)

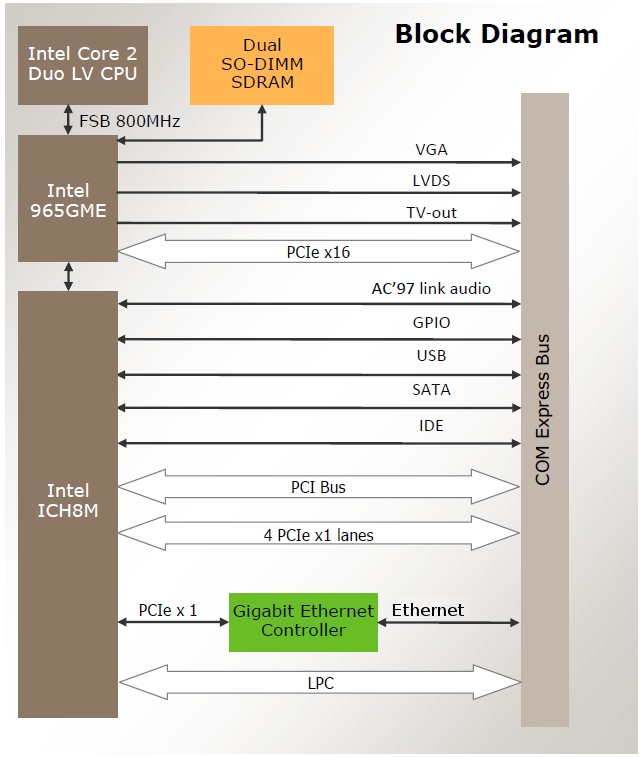

CME-965 Block Diagram
(click to enlarge)


top
Specifications

Core System Functions
Processor CME-Z510: Intel Atom Z510
CME-965: Intel Core 2 Duo LV
CPU Speed CME-Z510: 1.1GHz
CME-965: 1.6GHz
Front Side Bus CME-Z510: 400MHz
CME-965: 800MHz
Memory CME-Z510: 1GB soldered-on DDR2 SDRAM
CME-965: 2 SO-DIMMs for up to 4GB DDR2 SDRAM
Chipset CME-Z510: Intel US15WPT
CME-965: Intel 965GME with ICH8M
Watchdog timer Non-maskable interrupt or reset modes
BIOS AMI PnP Flash BIOS
I/O Interfaces
Mass Storage CME-Z510: 1 SATA port
CME-965: 3 SATA ports and 1 IDE port
USB 4 x USB 2.0 ports
Networking 1 10/100/1000Base-T Ethernet
Keyboard/Mouse USB keyboard/mouse support in BIOS and OSes
Display LVDS LCD flat panel interface
VGA CRT interface
Audio AC'97 audio link
Expansion Buses
PCI Express CME-Z510: 6 PCIe x1 lanes
CME-965: 1 PCIe x16 and 4 PCIe x1 lanes
Other LPC bus, SMBus, I2C
Physical and Mechanical
Power Input +12VDC main power; +5VDC standby power
Power Consumption
(preliminary)
CME-Z510: 9W idle, 13W loaded
CME-965: 12W idle, 24W loaded
Operating Temperature CME-Z510: -40ºC to +85ºC (-40ºF to +185ºF)
CME-965: -40ºC to +85ºC (-40ºF to +185ºF)
Operating Humidity 0-90% non-condensing
Dimensions 3.7 x 4.9 inches (95 x 125 mm)
Weight 2.8 oz (79 g)
MTBF CME-Z510: 217,416 hours
CME-965: 220,975 hours
RoHS Compliant

top
Get An Online Quote


COM Express Modules
available models:
CME-965-L7500
COM Express module with Intel 1.6GHz Core 2 Duo LV CPU, two SO-DIMM sockets with 0GB RAM
CME-Z510-1G
CME-Atom COM with Intel 1.1GHz Intel Atom Z510PT CPU, 1GB SDRAM on-board
6884030
Heatspreader for CME-965
6884042
Heatspreader for CME-Z510-1G COM
