Products   >   Processor Modules   >   COM-based SBCs   >   Eagle Baseboard
FEATURES
Supports Tordadex Apalis ARM COMs:
NVIDIA Tegra T30 1.4GHz quad core Cortex A9
i.MX6 NXP/Freescale 1GHz/800MHz Cortex A9
NVIDIA Tegra TK1 quad core up to 2.2GHz Cortex A15
5-6 USB 2.0 ports depending on ARM module
8 RS-232/422/485 serial ports
2 Gigabit Ethernet ports
VGA, HDMI and dual channel LVDS
HD audio
4 12-bit A/D; 4 PWM
4 opto digital in; 4 opto digital out
16 digital I/O
I2C, SPI
Camera serial interface (CSI)
PCIe MiniCard socket
"Type specific" I/O connector for custom daughterboard
Wide input 9VDC to 36VDC power supply
3.5" form factor: 4.0" x 5.75"
-40ºC to +85ºC operation capable
Highly configurable to satisfy customer feature requirements and cost targets
ONLINE SUPPORT
Request Product information
Request Technical Support
DOWNLOADS
Eagle baseboard datasheet
(.pdf, 325.6 kb)
Eagle/Eaglet Manual
(.pdf, 3.4 MB)

Eagle Baseboard

3.5 Inch Form Factor I/O Baseboard for ARM Computer-on-Modules

Eagle I/O Baseboard

Click here for a larger image
Description
Block Diagram
Software Development Kits
Cable Kit
Specifications
Get an online quote


This product is also available as a complete SBC with installed ARM module. Click here


Description

The Eagle baseboard is designed to work with the Toradex Apalis family of ARM COMs. It turns the Apalis modules into complete embedded systems, with a wide variety of standard and industrial I/O features to create off-the-shelf solutions for ARM-based industrial embedded computing.

Eagle provides a long life, scalable platform for ARM-based application development. Toradex's Apalis module family currently contains three members, with the newest module, Apalis TK1, recently introduced in July 2016. The Apalis form factor, as well as all processors used on the modules, have long life commitments from their suppliers, ensuring long life availability of the complete product. Customers have great flexibility in selecting not only the price/performance characteristics of the installed COM, but multiple configurations including the number of cores, memory and flash size, and operating temperature range.

Most I/O features can be configured to meet any customer's specific requirements as well as cost and power consumption targets. This includes removal of unneeded features and I/O connectors plus additional ruggedization services.


Supported ARM Computer-on-Modules

Apalis iMX6 Apalis T30 Apalis TK1
Freescale i.MX6 NVIDIA Tegra 3 NVIDIA Tegra K1
ARM Cortex A9 ARM Cortex A9 ARM Cortex A15
Quad core
dual core
Quad core Quad core
1GHz / 800MHz 1.4GHz Up to 2.2GHz
512MB to 2GB
DDR3 RAM
1GB or 2GB
DDR3 RAM
2GB DDR3 RAM
4GB eMMC flash 4GB/8GB eMMC flash 16GB eMMC flash
End of life 2028 End of life 2025 End of life 2025

Please visit the Toradex website, www.toradex.com, for more information about these ARM Computer-on-Modules.



Customization Options

The following customization options are available for the Eagle baseboard. Minimum order quantities apply.

  • 2 CANbus 2.0 ports via daughtercard
  • 4 serial ports with opto-isolation
  • 6 serial ports fixed RS-232 + 2 RS-232/422/485
  • 8 3.3V GPIO instead of 4 opto in + 4 opto out
  • +5VDC power input only
  • Hardwired configuration (no jumpers)
  • Conformal coating
  • Connector and feature depopulation

  • top

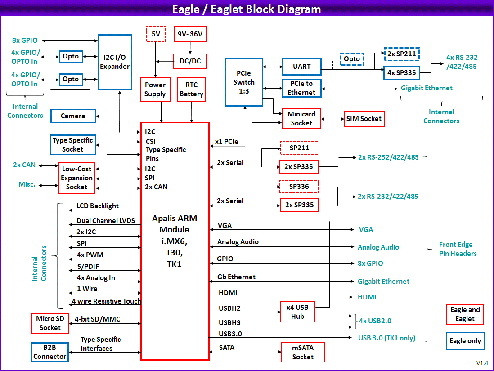

    Block Diagram


    Eagle Baseboard Block Diagram

    top
    Software Development Kits

    Complete Software Development Kits with a bootable operating system are available with all the components you need to get started on your embedded design project. The kit contains a 32GB micro-SD flashdisk for Linux pre-loaded and a software DVD.

    top
    CK-EGL-01, CK-EGL-02: Cable kits for Eagle Baseboard


    CK-EGL-01
    CK-EGL-01 Cable Kit

    CK-EGL-02
    CK-EGL-02 Cable Kit

    Cable kits include the following cables:

    No. Cable Description Drawing CK-EGL-01 CK-EGL-02
    10 6981164 Ribbon cable for Opto-isolated GPIO Show 1 1
    11 6980523 Ribbon cable for Utility I/O - 1 1
    6 6981084 VGA Show 1 1
    12 6981011 External battery cable Show 1 1
    2 6981080 Gigabit Ethernet cable Show 2 2
    1 6980520 Power input - 1 1
    9 6981169 Ribbon cable for GPIO, A/D, and misc Show 3 3
    5 6981075 Dual serial port DB9M Show 4 4
    4 6981082 Dual USB 2.0 type A Show 2 2
    8 6981076 Audio Show 1 1
    3 6980100 Dual USB 2.0/3.0 type A - 1 1
    7 6980522 HDMI - - 1

    top
    Specifications

    Specifications
    Supported COMs Toradex Apalis iMX6 800MHz or 1GHz ARM Cortex A9
    Toradex Apalis T30 1.4GHz ARM Cortex A9
    Toradex Apalis TK1 2.2GHz ARM Cortex A15
    Networking 2 Gigabit Ethernet ports
    Serial ports 8 RS-232/422/485 ports with software configuration
    USB ports 5-6 USB 2.0 Ports depending on ARM module
    Mass storage 1 micro SD & 1 mSATA socket
    Camera Video/camera MIPI CMOS sensor interface
    Audio HD audio
    Data acquisition 4 12-bit A/D, 4 PWM
    16 GPIO, 3.3V logic levels
    4 opto-isolated digital inputs, 3-28VDC
    4 opto-isolated digital outputs, 3-28VDC
    Connectivity 1 I2C, 1 SPI, 2 CANbus 2.0 on pin headers
    I/O expansion PCIe MiniCard socket (with SIM socket)
    Type specific connector for custom I/O
    Input voltage 9-36VDC
    Power consumption 12V in: 10.2W
    36V in: 10.8W
    Operating Temperature -40C to +85C (-40F to +185F) capable
    Dependent on Apalis COM selected
    Shock MIL-STD-202G compatible
    Vibration MIL-STD-202G compatible
    Operating humidity 10-95% relative humidity, non-condensing
    Dimensions 4.0 x 5.75 (102mm x 146mm)
    RoHS Compliant


    top
    Get An Online Quote


    Eagle Baseboard
    available models:
    EGL-DX-BB
    Eagle 3.5-inch full-feature baseboard for Apalis ARM COMs
    Please login or signup for an online quote request.



    Cables and accessories
    available models:
    PNL-EGL-01
    Eagle / Eaglet Panel I/O Board
    SDK-EGL-MX6-LNX
    Eagle/Eaglet Linux SDK for Apalis i.MX6 model
    SDK-EGL-T3-LNX
    Eagle/Eaglet Linux SDK for Apalis T30 model
    DK-EGL-MX6Q2G-LNX
    Eagle SBC with i.MX6 CPU, Linux OS, and cable kit
    DK-EGL-T3Q1G-LNX
    Eagle SBC with T3 CPU, Linux OS, and cable kit
    CK-EGL-01
    Eagle cable kit, no HDMI cable
    CK-EGL-02
    Eagle cable kit, with HDMI cable
    6981164
    Ribbon cable for Opto-isolated GPIO
    6980523
    Ribbon cable for Utility I/O
    6981084
    VGA
    6981011
    External battery cable
    6981080
    Gigabit Ethernet cable
    6980520
    Power input
    6981169
    Ribbon cable for GPIO, A/D, and misc
    6981075
    Dual serial port DB9M
    6981082
    Dual USB 2.0 type A
    6981076
    Audio
    6980100
    Dual USB 2.0/3.0 type A
    6980522
    HDMI
    Please login or signup for an online quote request.
    >>
