FEATURES
2-in-1 design reduces cost, saves space
ST VEGA Pentium-II class processor, 200MHz, fanless
Integrated analog and digital I/O with autocalibration
128MB RAM soldered on board for increased ruggedness
10/100Mbps Ethernet
4 RS-232 serial ports
2 USB 1.1 ports with legacy USB floppy support
PS/2 keyboard & mouse
Programmable watchdog timer
-40 to +85ºC
PC/104 form factor
Works with Pandora cable-free enclosure system
Runs Linux, DOS, QNX, and Windows CE
ONLINE SUPPORT
See Elektra PC/104 SBC Technical Resources
A/D Board Tutorial
Request Product information
Request Technical Support
DOWNLOADS
Elektra Manual v1.1
(.pdf, 1.1 MB)
Elektra Example Programs for UD 5.91
(.zip, 0.0 kb)
Universal Driver Software

Elektra PC/104 SBC

New 2-in-1 High-Integration PC/104 CPU with Ethernet and Data Acquisition


Elektra PC/104 SBC

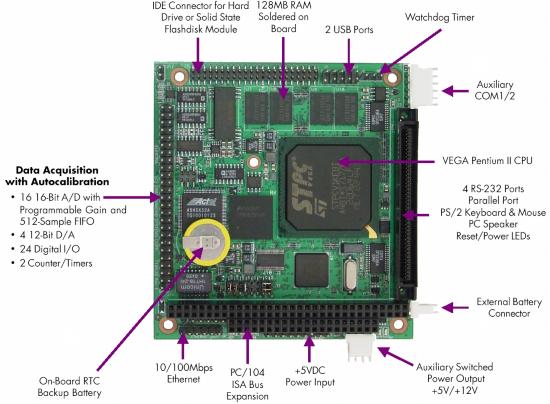

click for a larger image
Description
System Block Diagram
Data Acquisition Circuit
I/O Connectors
Development Kit
Cable Kit
Specifications
Get an online quote


Description

The new ELEKTRA CPU from Diamond Systems provides a rugged, 2-in-1 solution, combining CPU and data acquisition into a single PC/104 board for space-limited embedded applications. Low-power operation, extended temperature capability, soldered-on memory, and compatibility with solid state flashdisk storage make Elektra a perfect choice for demanding harsh-environment situations, such as transportation, marine, aerospace, military, or outdoor applications.

Elektra uses the ST Micro VEGA Pentium-II class processor running at 200MHz. It includes onboard 128MB memory, 10/100 Mbps Ethernet, and a professional-quality analog and digital I/O circuit with autocalibration. It runs Linux, DOS, QNX, and Windows CE. Elektra operates over the -40 to +85șC temperature range without a fan.

Two configurations are available: Model ELK200-EA-XT includes CPU + data acquisition, while model ELK200-E-XT is the lower-cost CPU-only version. Both versions include 4 RS-232 ports, 2 USB 1.1 ports with USB floppy support, 10/100Mbps Ethernet, PS/2 keyboard/mouse, parallel and IDE ports, programmable watchdog timer, and on-board backup battery for real-time clock and BIOS settings.

ELK200-EA-XT's built-in data acquisition circuit provides high-accuracy, stable A/D performance with 16-bit resolution and programmable input ranges. A 512-sample FIFO and on-board programmable timer enable error-free 100KHz A/D sampling rate in any operating system. It includes 4 12-bit D/A channels, 24 programmable digital I/O lines, and two programmable counter/timers. All data acquisition features are fully supported by our Universal Driver software to simplify application development.

top
System Block Diagram

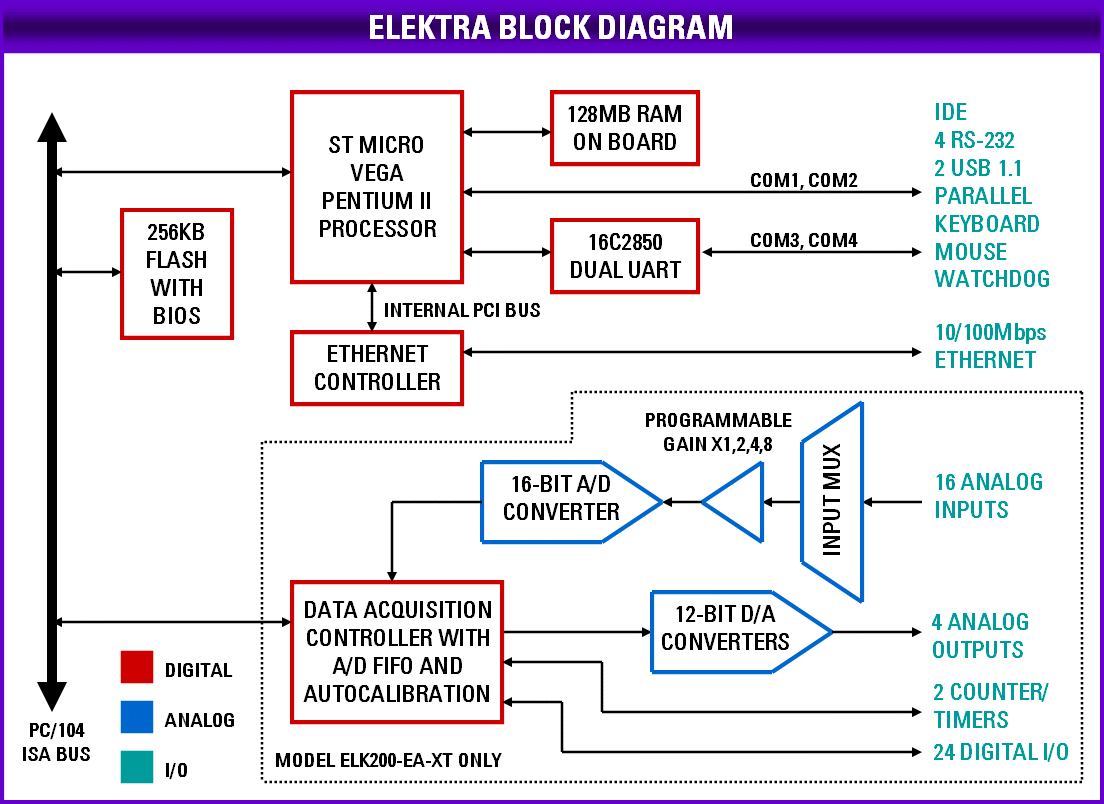

Elektra Block Diagram

top
Data Acquisition Circuit

The optional data acquisition circuit on Elektra is equivalent to a full-featured analog I/O expansion board, with analog I/O, digital I/O, and counter/timer functions.

The 16 analog inputs have 16-bit resolution, programmable gain of 1, 2, 4, and 8, and maximum input range of +/-10V in bipolar mode or 0-10V in unipolar mode. Both single-ended (2-wire) and differential (3-wire) inputs may be accommodated. Using the built-in FIFO and interrupts, the board can achieve sample rates of up to 100KHz in both single-channel and scan modes.

The board also has 4 12-bit analog output channels. The output range is jumper-selected between 0-10V or +/-10V. On power-up, the outputs may be configured to clear to mid-scale or zero-scale, so that they always power up to 0V for safety.

Elektra also has 24 digital I/O lines organized as 3 8-bit ports. The direction of each port is programmable. When in output mode, each port has a high-drive buffer capable of supplying up to -10/+30mA of output current per pin.

Elektra has two counter/timers for timing operations. The first counter is 24 bits wide and is generally used to control A/D sampling rate. Driven by a user-programmable 10MHz or 1MHz on-board clock, it can provide output pulses anywhere from 10MHz down to 0.06Hz. The second counter/timer is 16 bits wide and can be driven by either 10MHz or 100KHz on-board clocks or a user-supplied input signal. It can be used for timing, counting/totalizing, or programmable interrupt generator functions.

Solid State Flashdisk

Elektra works with our solid state IDE flashdisk modules. These modules provide ultra-rugged, extended-temperature capable, and fully IDE-compatible file storage in sizes ranging from 32MB to 256MB. Flashdisks mount onto the IDE connector and are held in place with a spacer and two screws for immunity to shock and vibration.

Pandora Cable-Free Enclosure System

Elektra fits inside our Pandora enclosure system to provide a compact, rugged, wall- or chassis-mountable industrial CPU. Pandora utilizes a unique cable-free I/O panel board to provide a rugged and customizable packaged embedded computing solution.

Multiple and custom case sizes are available, starting from a thin 1.7" for CPU + panel board all the way up to 10 inches length for housing multiple boards and custom hardware.

top
I/O Connectors



top
Development Kit

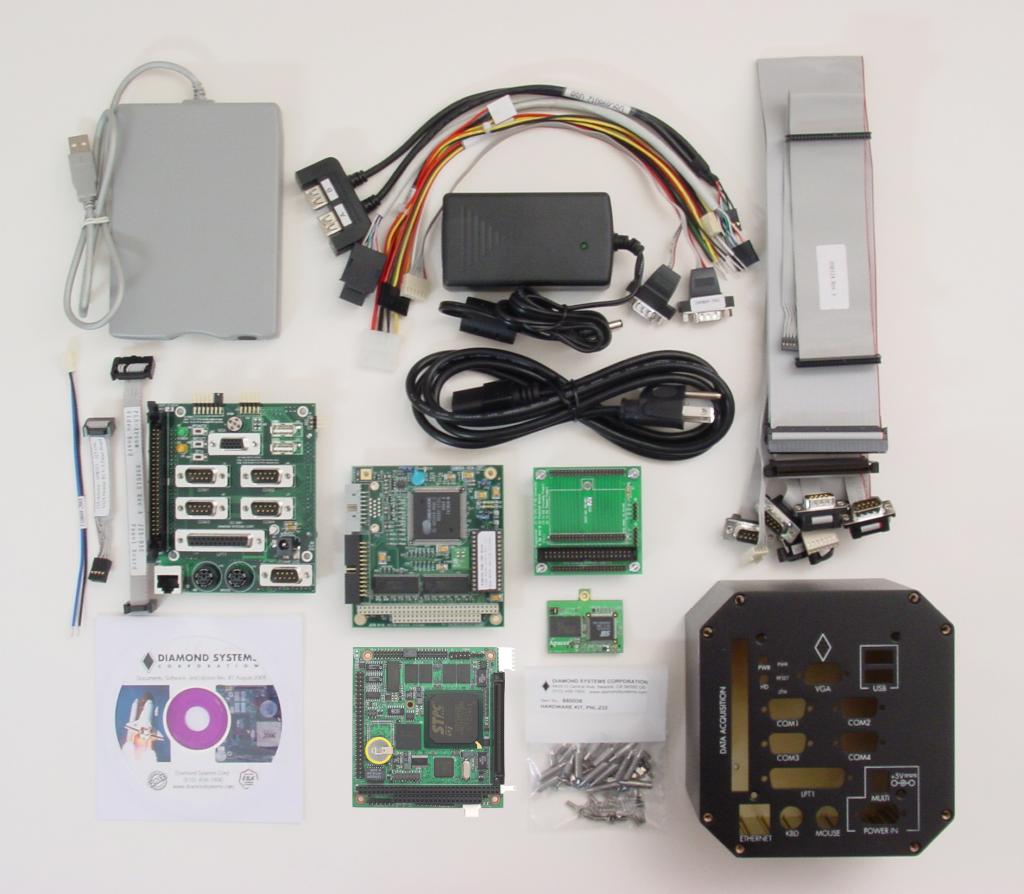

A development kit is available with all the hardware you need to get started on your Elektra embedded design project. The kit contains a flashdisk module, cable kit, AC power adapter, USB floppy drive, and Pandora enclosure.


click for larger image

top

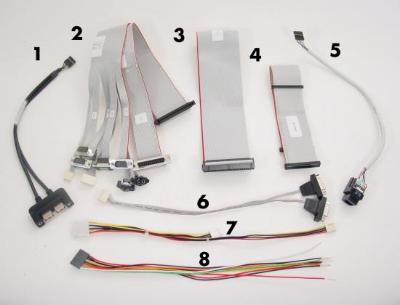

Cable Kit

A cable kit is available with all cables needed to access Elektra's features. Cables are also available individually.



Key Part No. Description
1 698012 USB cable, ports 0 & 1
2 C-PRZ-01 Breakout cable: serial, parallel, PS/2, utility
3 C-50-18 Data acquisition, 50 conductor .1" ribbon cable
4 698124 IDE ribbon cable
5 C-PRZ-02 Ethernet cable
6 698005 Dual DB-9 cable
7 698006 Power output cable
8 698009 Power input cable

top
Specifications

Processor Section
CPU ST VEGA Pentium-II, 200MHz, fanless
Memory 128MB soldered on board
Configurations ELK200-EA-XT CPU + Data Acquisition
ELK200-E-XT CPU only
IDE UDMA100, compatible with IDE hard drive or board-mounted flashdisk module up to 256MB
Serial ports 4, RS-232
I/O 2 USB 1.1, PS/2 keyboard & mouse
Ethernet 10/100Mbps
Watchdog Timer Programmable, 0.5 to 2 seconds
PC/104 Bus Capacity 5 modules
Data Acquisition Section
Analog inputs 16 single-ended / 8 differential
A/D Resolution 16 bits
Sample Rate 100KHz max
Input Ranges ±10V, ±5V, ±2.5V, ±1.25V, 0-10V, 0-5V, 0-2.5V, 0-1.25V
Analog Outputs 4 voltage outputs
D/A Resolution 12 bits
Output Ranges ±10V, ±5V, 0-10V, 0-5V
Digital I/O 24 programmable direction
Counter/Timers 1 24-bit, 1 16-bit
Counter Features A/D sample rate control, event counting, programmable rate generator, programmable interrupts
General
Dimensions 3.550"W x 3.775"H
Expansion Bus PC/104 16-bit bus, stackthrough
Power +5VDC, 1.1A (5.5 Watts)
Weight 3.8 oz / 108g
Operating Temp -40 to +85ºC

top
Get an online quote


Elektra PC/104 SBC
available models:
ELK200-EA-XT
Vega PC/104 CPU, 200MHz, 128MB, Ethernet, with Data Acquisition
ELK200-E-XT
Vega PC/104 CPU, 200MHz, 128MB, Ethernet, w/o Data Acquisition
Please login or signup for an online quote request.
