Products   >   I/O Expansion Modules   >   Communications Modules   >   Emerald-MM-8E/EL

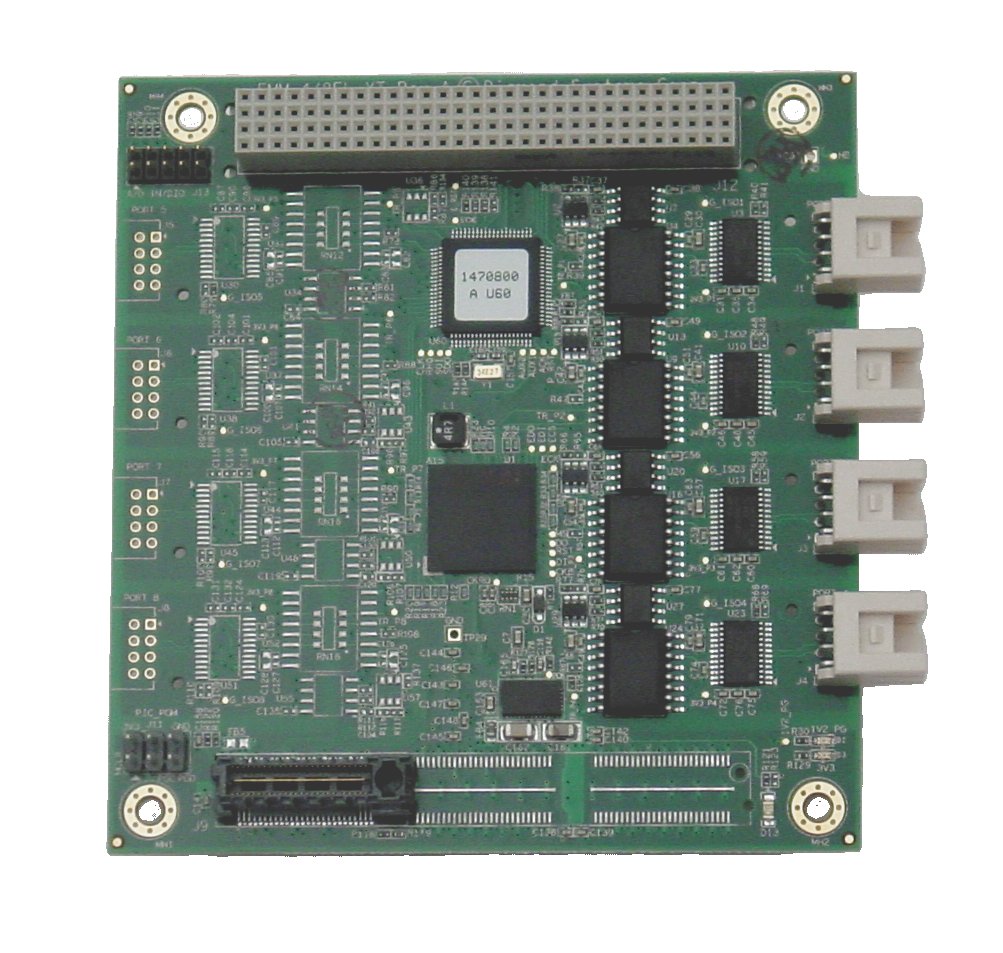

      EMERALD-MM-8E/EL  PCI/104-Express 4/8-Port Serial Port Module with Opto-isolation   PCIe104
OverviewConfiguration
Software
SpecificationsOrdering
Information
Support

Description

The Emerald-MM-8EL-XT is a family of high performance PCIe/104 "OneBank" serial I/O modules offering 4 or 8 multiprotocol serial ports with software-controlled configuration and optional opto-isolation. An accessory microcontroller manages all port configuration and provides 8 auxiliary digital / analog I/O lines for general purpose use.

Available Models

Model # Description
EMM-8EL-XT 8-Port serial module with opto-isolation
EMM-4EL-XT 4-Port serial module with opto-isolation
EMM-8E-XT 8-Port serial module without opto-isolation
EMM-4E-XT 4-Port serial module without opto-isolation

The serial ports are based on a high speed PCIe octal UART with 256-byte TX/RX FIFOs and auto RS-485 transmit control. Each serial port can be independently configured for RS-232, RS-422, or RS-485 protocols, along with programmable 120-ohm line termination. Each port is independently isolated with an isolated power + signal chip, plus additional isolators for control signals. The board features intelligent power management that limits inrush current on power-up and also enables power-down of unused serial ports for power savings.

Opto-isolated models feature independent 2500VRMS isolation circuits for enhanced reliability in vehicle or long cable applications. All ports also feature +/-15KV ESD protection. Each serial port is available on an independent latching connector for increased isolation and ruggedness. With its wide operating temperature range and high resistance to shock and vibration, the EMM-8EL-XT fits a wide variety of rugged and on-vehicle embedded serial I/O application needs.

EMM-8EL-XT also offers 8 digital/analog I/O lines which are programmable from the on-board microcontroller. Each I/O line can be configured for digital input or output. Seven of the I/O lines can be configured for 12-bit A/D input with selectable 0-2.048V or 0-3.3V input ranges.

EMM-8EL-XT contains no configuration jumpers; all configuration and control is done with an onboard microcontroller using application software included with the product. All configuration settings are stored in the microcontroller's flash memory and are automatically loaded on power-up.

Emerald-MM-8E/EL: I/O Expansion Modules, Rugged, wide-temperature PC/104, PC/104-<i>Plus</i>, PCIe/104 / OneBank, PCIe Minicard, and FeaturePak modules featuring standard and optoisolated RS-232/422/485 serial interfaces, Ethernet, CAN bus, and digital I/O functions., PCI/104-Express

Cable Kits

Cable kits are available for both 4-port and 8-port boards They include individual cables with dB9 male connectors for each serial port and a ribbon cable for the auxiliary analog/digital I/O.


CK-EMM-4EL
CK-EMM-4EL Cable Kit

CK-EMM-8EL
CK-EMM-8EL Cable Kit

Cable kits include the following cables:

No. Cable Description Drawing CK-EMM-4EL CK-EMM-8EL
6981212 Serial port cable, 2x5 2mm socket to DB9 Male panel mount Show 4 8
6981077 GPIO cable Show 1 1

The EMM-8E family includes an on-board microcontroller to handle all configuration and control of the board's features. The microcontroller is managed with a comprehensive software suite that makes configuring the EMM-8E fast and simple. A graphical control panel, a console application, and drivers for Windows and Linux are provided to enable convenient configuration of the board and control of the I/O features in a laboratory or system assembly environment, or embedded in the customer's application software.

Emerald-MM-8E/EL: I/O Expansion Modules, Rugged, wide-temperature PC/104, PC/104-<i>Plus</i>, PCIe/104 / OneBank, PCIe Minicard, and FeaturePak modules featuring standard and optoisolated RS-232/422/485 serial interfaces, Ethernet, CAN bus, and digital I/O functions., PCI/104-Express

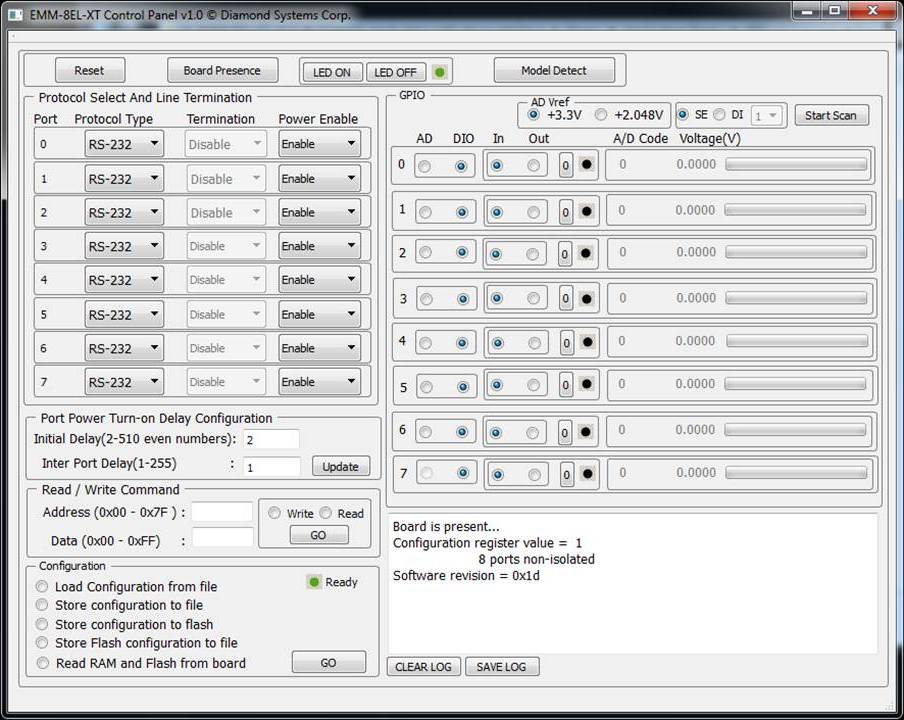

Command Line Interface Control Panel

Serial Ports
Number of serial ports 4 or 8
Protocols RS-232, RS-422, RS-485 configured with software, no jumpers
Maximum baud rate RS-232 mode: 1Mbps
RS-422/485 mode: 10Mbps
UART 16550 compatible octal UART with 256-byte TX/RX FIFOs
Transceivers SP330 multiprotocol transceivers, one per port
Communications parameters 5, 6, 7, or 8 data bits; Even, odd, or no parity
Termination Software programmable RS-422/485 termination
Isolation Independent 2500VRMS isolation port-by-port
ESD protection +/-15KV on each port
Short circuit protection Continuous, all outputs
RS-232 mode
Input Impedance 3KΩ min
Input voltage swing ±30V maximum
Output voltage swing ±5V min, ±7V typical
RS-422/485 modes
Differential input threshold -0.2V min, +0.2V max
Input impedance 12KΩ minimum
Input current +1.0mA max (Vin = 12V)
-0.8mA max (Vin = -7V)
Differential output voltage 2.0V min (RL=50Ω)
High/low states differential
output voltage symmetry
0.2V max
Digital / Analog I/O
Number of lines 8 individually programmable lines:
8 as digital input or output
7 as 12-bit analog input
Analog input ranges 0-2.048V or 0-3.3V
General
Host interface PCIex1 using PCIe/104 OneBank connector
Inrush current Staggered turn-on of isolated devices for reduced inrush current at power on
On-board microcontroller On-board PIC microcontroller with flash to manage and store configurations
Connectors Latching connectors on all ports for increased ruggedness
Dimensions 3.55" x 3.775" (90mm x 96mm)
Conforms to PCIe/104 OneBank form factor supporting Type 1 and Type 2
Power supply +5VDC ±5%
Current consumption 160mA typical, all outputs unloaded
Software drivers Windows Embedded Standard 7, XP, 2000 and Vista
Linux 2.6.16, 2.6.31 and 2.6.32
Operating temperature -40°C to +85°C (-40°F to +185°F)
Operating humidity 5% to 95% non-condensing
Shock MIL-STD-202G compatible
Vibration MIL-STD202G compatible
MTBF 579,352 hours at 20°C
Weight 2.5oz (71g)
RoHS Compliant

Get an online quote


Emerald-MM-8E/EL
Available Models:
CK-EMM-8EL
Cable Kit, EMM-8EL-XT
Stocked
EMM-8E-XT
8-port PCI/104-Express Serial Module no opto-isolation
Available
EMM-8EL-XT
8-port PCI/104-Express Serial Module with opto-isolation
Available
EMM-4EL-XT
4-port PCI/104-Express Serial Module with opto-isolation
Available
EMM-4E-XT
4-port PCI/104-Express Serial Module no opto-isolation
Available
Please login or signup for an online quote request.



Cables and accessories
Available Models:
6981212
Serial port cable, 2x5 2mm socket to DB9 Male panel mount
6981077
Cable, 2mm Conn Female IDC Socket
Please login or signup for an online quote request.

Product Support for Emerald-MM-8E/EL

User Manual

EMM-8EL User Manual(.pdf, 625.4 KB)
Visit Universal Driver software page
EMM-8EL Linux Demos
EMM-8EL Windows Demos
Universal Driver User Manual

Emerald-MM-8EL Universal Driver Manual(.pdf, 722.2 KB)
Drivers

EMM-8EL Linux Drivers(.zip, 2.9 MB)
EMM-8EL UART Driver(.zip, 18.9 KB)
EMM-8EL UART Driver Core. ver2.2
EMM-8EL Windows Drivers(.zip, 128.8 MB)
Datasheet

EMM-8EL Datasheet(.pdf, 241.1 KB)
Mechanical Drawing

Emerald-MM-8EL 3D Model(.zip, 4.4 MB)
FEATURES
4 or 8 multiprotocol serial ports
Optional opto-isolation with 2500VRMS isolation between ports
100% software configured - no jumpers
16550 compatible octal UART with
256-byte TX/RX FIFOs
Software configurable for RS-232/422/485 protocols
Maximum baud rate:
    RS-232 mode: 1Mbps
    RS-422/485 mode: 10Mbps
SP330 multiprotocol transceivers, one per port
Programmable RS-422/485 termination
+/-15KV ESD protection on each port
8 programmable digital I/O or analog input lines
On-board microcontroller manages and stores configurations
All configuration done via software; no jumpers
Latching connectors for imcreased ruggedness
PCIe x1 host interface using PCIe/104 OneBankTM connector
Staggered turn-on of isolated power circuits for reduced inrush current at power-on
-40°C to +85°C operating temperature
Industry-standard UART supported by most popular embedded operating systems
Comprehensive software suite enables easy configuration and control
MIL-STD-202G shock and vibration compatible
PCI/104-Express One-Bank form factor 3.55 x 3.775" / 90x96mm
