Products   >   Services   >   End-of-Life Products   >   Hercules II EBX SBC
3-in-1 design reduces size and weight, increases reliability
800MHz Pentium-III class processor with on-board memory, video, ethernet, and audio
On-board data acquisition circuit with autocalibration
On-board DC/DC power supply with 5-28V input range
PC/104 and PC/104-Plus expansion
-20ºC to +71ºC or -40ºC to +85ºC operating temperature
Rugged design ideal for vehicle and outdoor applications
RoHS compliant
Feature Details
Ultra low power VIA Mark CoreFusion CPU operating at 800MHz
512MB SDRAM soldered on board
VGA support up to 32 bit per pixel and max resolution of 1920x1440
Integrated S3 ProSavage 4 AGP-4X graphics
Advanced 3D rendering and 3D hardware acceleration
LCD support any LVDS screen up to 1400x1050
AC97 audio with on-board codec and 2W per channel Hi-Fi stereo amplifier and DC volume control
10/100Mbps Ethernet with RJ-45 and pin header connections
TV out feature - composite and S-video
UDMA-100 IDE support
IDE flashdisk module socket
CompactFlash socket
4 USB 1.1 ports
4 serial ports - 2 fixed RS-232, 2 selectable RS-232/422/485
PS/2 keyboard and mouse
Programmable watchdog timer, 0 to 2 seconds
Low power fanless operation
PC/104-Plus ISA and PCI expansion
-20ºC to +71ºC or -40ºC to +85ºC operating temperature
Shock IEC68-2-27
Vibration MIL-STD-810E 514.4
Data Acquisition
32 wide-range analog inputs, +/-10V down to 0-1.25V
16-bit A/D resolution
Single-channel, multi-channel round robin, and multi-channel scan sampling
250KHz max sample rate
2048 A/D sample FIFO with programmable threshold
Interrupt-based A/D data transfer with FIFO support
Programmable input ranges
4 wide-range analog outputs with simultaneous update capability
12-bit D/A resolution
Multi-range autocalibration for highest accuracy
40 digital I/O lines with programmable direction
16-bit and 24-bit counter/timers
4 programmable pulse-width modulation (PWM) outputs
Field-upgradeable logic circuit for performance upgrades or custom designs
Power Supply
5-28VDC input range standard - direct connect to vehicle power systems
40 watts output power (12-16 watts used by CPU)
Switched auxiliary power for IDE drives and accessories
Customers who use this product also use:
Hercules II Development Kit
Hercules III Sofware Development Kit
IDE Flashdisks
Hercules II Cable Kit

This product can be customized and ruggedized. Click here for more information.
See Hercules II EBX SBC Technical Resources
Request Product information
Request Technical Support
LG Electronics LP121X04.pdf
(.pdf, 219.1 kb)
Hercules II EBX Datasheet
(.pdf, 329.5 kb)
Hercules II EBX User Manual
(.pdf, 2.1 MB)
Hercules II Fast Start Guide
(.pdf, 301.0 kb)
Hercules II Shock and Vibration Test Results
(.pdf, 986.5 kb)
Hercules to Hercules II Migration Guide
(.pdf, 23.3 kb)
Autocalibration Technology Backgrounder
(.pdf, 112.9 kb)
Hercules II Connector Location Drawing
(.pdf, 457.3 kb)
Universal Driver Software

Hercules II EBX SBC

EBX SBC with 800MHz VIA Mark CoreFusion CPU, Integrated Autocalibrating Data Acquisition, and DC/DC Power Supply


Hercules II EBX SBC
click for a larger image
System Block Diagram
Data Acquisition Circuit
Development Kit
Cable Kit
Device Drivers
AC Adapter
Features Benefits
Low-power VIA Eden processor High computing power with reduced power consumption
Fan-less operation (800MHz)
Memory soldered on board Increased reliability and ruggedness
Guaranteed compatibility
Integrated LCD, CRT, Ethernet, and system I/O Complete PC on a single board
On-board DC/DC power supply Suitable for vehicle applications
Reduced size and weight
Integrated data acquisition circuit with autocalibration Single-board solution for increased reliability
Increased measurement accuracy
-20ºC to +71ºC or -40ºC to +85ºC operation Compatible with vehicle and outdoor applications
Ruggedization including shock and vibration Customizable for harsh environment applications


Hercules II EBX is a high performance, RoHS compliant successor to the popular Hercules EBX. Combining processor, data acquisition, and power supply onto one board results in a thinner, lighter, more rugged, and easier to assemble embedded system. The 3-in-1 design addressed the needs of mobile and vehicle applications by offering the benefits of reduced size, weight, cost, and power consumption. Hercules II utilizes the VIA Mark CoreFusion processor which combines a high performance Nehemiah core CPU with Northbridge technology on a single chip. Featuring Pentium III class performance with dramatically reduced power consumption, the 800MHz board consumes only 12 watts max and requires only a small heat sink with no fan to operate at temperatures up to 85°C. This is less power than the original Hercules board consumed at 550MHz. The increased integration enables Hercules II to offer advanced features such as four USB 1.1 ports.

The advanced data acquisition circuit features autocalibration and fully jumper-less configuration for maximum accuracy and reliable performance. The built-in DC/DC power supply enables Hercules II to be used in a wide range of applications without requiring a separate add-on supply.

Built-In Power Supply

Hercules II contains a DC/DC power supply with 40 watts of output power, enough to power the SBC as well as peripherals and add-on boards. The input range of 5-28VDC means that Hercules II is compatible with a standard off-the-shelf 5V supply as well as a vehicle, battery, or industrial power source. The on-board supply features ACPI compatibility for intelligent power management.

Advanced Multimedia Features

Hercules II contains an integrated S3 ProSavage 4 video circuit. This advanced design provides hardware 2D and 3D acceleration with 32MB video buffer using shared system memory, 128-bit engine architecture, full internal AGP 4x performance, 3DNow! and MMX instruction sets, and high-quality DVD video playback. The video circuit supports CRTs up to 1920x1440 and LVDS LCD panels up to 1400x1050 resolution. Simultaneous CRT and LCD display is supported. Integrated TV-out can produce simultaneous Composite and S-Video out, NTSC or PAL encoding. Audio features include an integrated AC97 digital audio controller and codec. A built-in Hi-Fi stereo speaker amplifier provides 2 watts per channel output power and ultra low-noise sound (SNR > 87dB). Audio I/O signals include Mic in, CD in, Aux in, Line in / Line out, and speaker out. Speaker out is also equipped with DC volume level control for ease of integration.

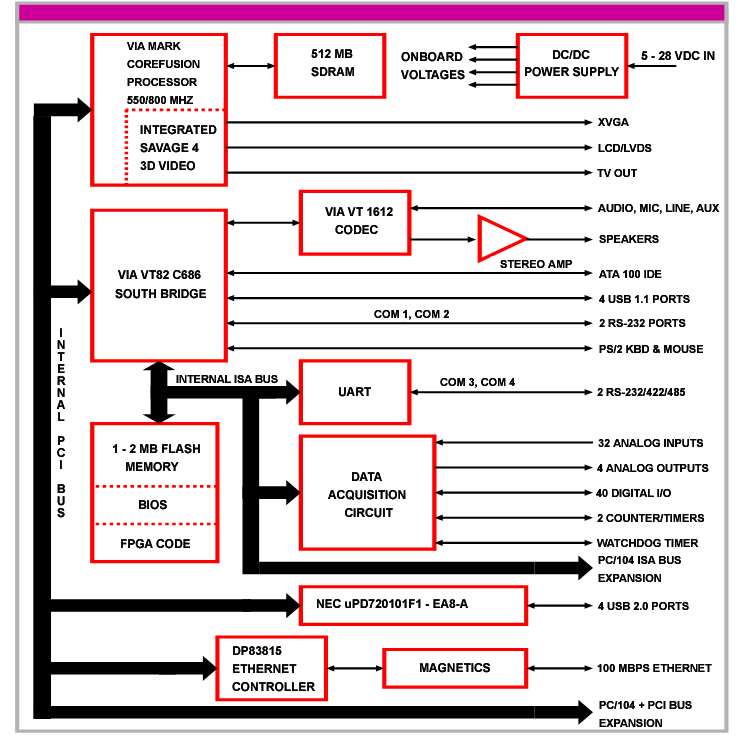

Hercules II Block Diagram

Hercules II Block Diagram

Data Acquisition Circuit

Hercules II includes a complete autocalibrating jumper-less analog and digital I/O circuit equivalent to our top-of-the-line PC/104 board. It contains 32 analog inputs with 16-bit resolution and 250KHz sample rate, backed by a 2K-sample FIFO with programmable threshold. Programmable input ranges from a wide-range +/-10V down to 0-1.25V are provided. The analog circuitry also includes 4 D/A channels with 12-bit resolution and jumperless output range selection and simultaneous update capability. On the digital side, Hercules II provides 40 digital I/O lines with programmable direction, as well as two counter/timers for A/D sample rate control, pulse counting, frequency generation, or other applications. Its advanced control logic has more features and flexibility to fit almost any application, such as internal/external A/D clock source, scan and single-sample modes, and our exclusive programmable FIFO threshold that lets you tune the board's performance to your application. Also four independent programmable Pulse-Width Modulation outputs (PWM) are available to users. The data acquisition circuit is fully supported by our Universal Driver software for a wide range of operating systems.

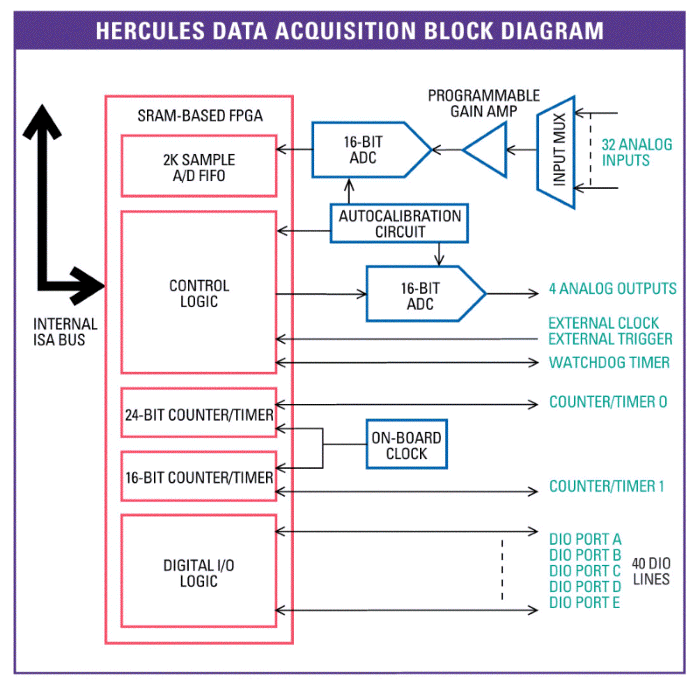

Hercules II Data Acquisition Circuit Block Diagram

Development Kit (DK-HRCEBX-02)

A development kit is available with everything you need to get started on your Hercules II embedded design project. The kit contains a data acquisition test board, flashdisk module, cable kit, AC power adapter, USB floppy drive, and software CD.

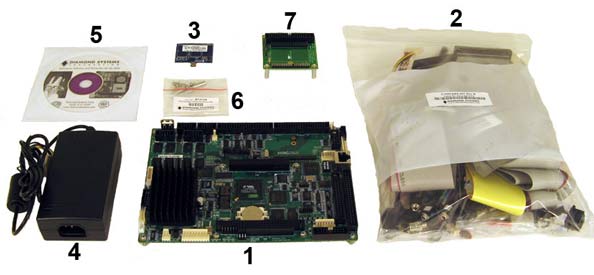

Hercules II Development Kit

Item DSC No. Description
1 HRC800-5A512 Hercules II SBC, 800MHz, 512MB RAM, with data acquisition
2 C-HRCEBX-KIT Hercules II Cable Kit
3 6712042 512MB FlashDisk with bootable Linux and CD
4 PS-12V-01 AC Adapter, 100-240VAC in, 12VDC / 4A out
5 6710010 Diamond Systems CD with driver software and manuals
6 MTG104 PC/104 Mounting Hardware Kit
7 ACC-IDEEXT FlashDisk Programmer Board with 40-pin and 44-pin IDE Cables
8 7460001 Hercules II FastStart Guide (not shown)

C-HRCEBX-KIT: Cable kit for Hercules II EBX SBC

The Hercules II cable kit includes cables for all I/O except LCD data and backlight, which are included in the LCD kit. A cable kit is strongly recommended for first-time buyers, as many cables are non-standard. All cables are also available individually. Once you know which cables your application requires, you can save money on future orders by purchasing only the ones you need.

Hercules II EBX SBC Cable Kit

C-HRCEBX-KIT includes the following cables:

No. Qty Cable Description Drawing
1 1 C-PRZ-02 Ethernet cable Show
2 1 6981022 PS/2 keyboard + mouse Show
3 1 6981025 Audio I/O cable Show
4 1 6981017 TV output cable Show
5 1 6981018 Speaker output cable Show
6 1 6981024 VGA output cable Show
7 1 C-20-18 20-conductor ribbon cable, for utility connections including power and reset contacts Show
8 1 C-40-18 40-conductor 18" ribbon cable Data Acquisition Show
9 1 C-50-18 50-conductor .1" pitch 18" ribbon cable, Data acquisition Cable Show
10 1 C-DB9M-4 Quad DB9 male to 40-pin header 18" cable, Serial ports 1-4 Show
11 1 6981026 40-conductor UDMA-100 IDE cable Show
12 1 6981004 IDE, 44 conductor 2mm ribbon cable Show
13 1 6981015 Power input cable, 10 conductors Show
14 1 6981016 High-power input cable, 2 conductors Show
15 1 6981011 External battery cable Show
16 1 6981006 Output power cable Show
17 2 6981012 Dual USB cable, ports 0 & 1 Show
18 1 861002 Utility board -

Hercules II LCD Kit (KIT-LCD-02)

Diamond Systems offers a convenient LCD development kit for applications requiring LCD display. The kit includes a 12.1" diagonal LVDS LCD, a backlight power inverter, and cables for the LCD and backlight. Hercules provides power for the backlight inverter. The LCD cable is also available individually.

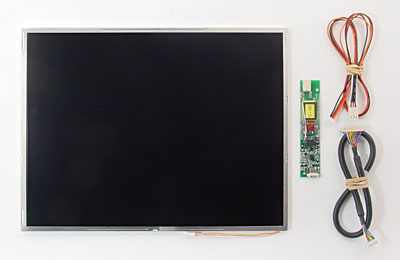

Hercules II LCD Kit

Qty Part No. Description
1 8910203 LCD, 12.1" diagonal LVDS
1 8910204 LCD backlight inverter for LCD
1 6981203 LCD cable, LVDS, length 16 inches
1 6981204 LCD backlight inverter cable


Processor VIA Mark CoreFusion CPU operating at 800MHz
SDRAM memory 256MB or 512MB on board
Flash memory 2MB
System I/O 4 USB 1.1, PS/2 keyboard / mouse
Serial ports 2 fixed RS-232
2 configurable RS-232/422/485
Max data rate 460.8kbps all ports
IDE connections 1 44-pin connector for flashdisk
1 40-pin dual-channel UDMA-100
CompactFlash socket
Ethernet 10/100Mbps
Serial console Selectable COM1 / COM2
Floppy Drive USB legacy support
Parallel Port Not present
PC/104 Bus Capacity 3 modules
PC/104-Plus bus +5V/+3.3V selectable
Data Acquisition Circuitry
Analog inputs 32, 16-bit A/D resolution
Max sample rate 250KHz total
Input modes Single-ended, differential
Input ranges +/-10V, +/-5V, +/-2.5V, +/-1.25V, 0-10V, 0-5V, 0-2.5V, 0-1.25V
Accuracy < +/-2LSB after autocalibration
Analog outputs 4, 12-bit D/A resolution
Settling time 10uS to +/-.01%
Input Impedance 10^13 ohms
Output current +/-5mA max, 2kOhm min load
Digital I/O 40 lines, 5V logic compatible with ESD protection
Direction Programmable in 8-bit ports
Output current 0: 12mA max; 1: -4mA max
Counter/timers 1 24-bit A/D sample rate control
1 16-bit general purpose use
PWM 4 independent programmable Pulse-Width Modulation outputs
Power supply
Input voltage 5-28VDC
Total output power 40W total (30W, 28W or 24W spare based on board speed grade)
Power consumption 12W at 550MHz and 16W at 750MHz
Output voltages +5V, +3.3V (on PCI bus)
Switched outputs +5V, +12V, +3.3V
Dimensions 8.00" x 5.75" EBX format
Weight 10oz / 285g
Operating temp. -20ºC to +71ºC or -40ºC to +85ºC
Shock IEC68-2-27
Operating Shock Half-Sine Wave Shock
40 G: 9ms: 18 shocks per axis: Vertical / Transverse / Longitudinal
Vibration MIL-STD-810E 514.4
Operating Random Vibration Mode
Axes: Vertical / Transverse / Longitudinal
7.7Grms 20-2000Hz Random Vibration. 60min/axis
Operating Swept Sine Mode
Axes: Vertical / Transverse / Longitudinal
0.01in. p-p, 5-20Hz, 7.7g peak, 20-2000Hz Swept Sine, 60min/axis
MTBF HRC800-5A512 134,042 hours
HRC800-5N512 148,002 hours
RoHS Compliant

AC Adapter

The AC adapter provides a convenient way to power your embedded CPU during development or demos. it contains the proper connector for direct connection to the CPU board. Each order ships with the correct power cord for the country for the country of destination.

AC Adapters

Get an online quote

Note: We strongly recommend purchasing proper cabling, available in the cable kit and development kit, for initial orders of the Hercules II.

Hercules II EBX SBC
available models:
Hercules II SBC, 800MHz Via Mark CPU, 512MB RAM, full data acquisition, 5-28VDC power supply, extended operating temperature of -40ºC to +85ºC
Hercules II SBC, 800MHz Via Mark CPU, 512MB RAM, full data acquisition, 5-28VDC power supply, enhanced operating temperature of -20ºC to +70ºC
Hercules II SBC Development Kit
Hercules II QNX Software Development Kit with 512MB flashdisk
Please login or signup for an online quote request.

Cables and accessories
available models:
Hercules II SBC Cable Kit
Ethernet cable
PS/2 keyboard + mouse
Audio I/O cable
TV output cable
Speaker output cable
VGA output cable
20-conductor ribbon cable, for utility connections including power and reset contacts
40-conductor 18" ribbon cable Data Acquisition
50-conductor .1" pitch 18" ribbon cable, Data acquisition Cable
Quad DB9 male to 40-pin header 18" cable, Serial ports 1-4
40-conductor UDMA-100 IDE cable
IDE, 44 conductor 2mm ribbon cable
Power input cable, 10 conductors
High-power input cable, 2 conductors
External battery cable
Output power cable
Dual USB cable, ports 0 & 1
Utility board
Please login or signup for an online quote request.
