Pegasus PC/104-Plus SBC
Rugged, Low Power PC/104-Plus SBC with 500MHz AMD Geode LX800
|
|
 |
Description |
Pegasus is a rugged, fan-less PC/104-Plus SBC which features the AMD Geode LX800 low power consumption processor running at 500MHz. It has 256MB of high speed DDR SDRAM soldered on-board. Pegasus offers fully integrated PC functionality with low power consumption which allows Pegasus to operate in harsh environments where the airflow for heat dissipation is restricted and fans are unacceptable. Its ruggedability gives it the power to perform round-the-clock in unattended environments.
Other features of Pegasus include a 10/100Mbps Ethernet LAN and ample I/O interfaces; 2 serial ports, 4 USB 2.0 ports, 1 IDE 44-pin interface capable of supporting two IDE drives, Compact Flash Type-II socket, PC/104-Plus expansion bus, LCD & VGA CRT interface, and watchdog timer. Pegasus has all the necessary features and expansion capability in 4.050" X 3.775" form factor, which makes it ideal for applications where space is limited but multiple I/O configurations are needed. Pegasus supports Windows XP, Windows XPe, Windows CE 5.0, and Linux.
| top |
|
|

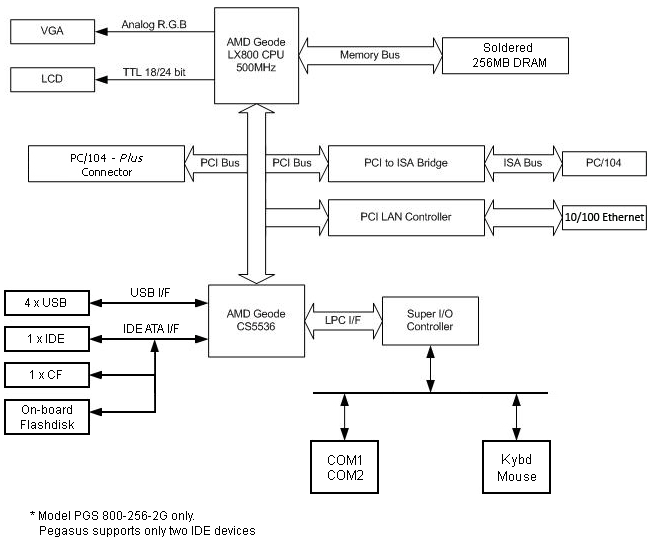

System Block Diagram |
| top |
|
|

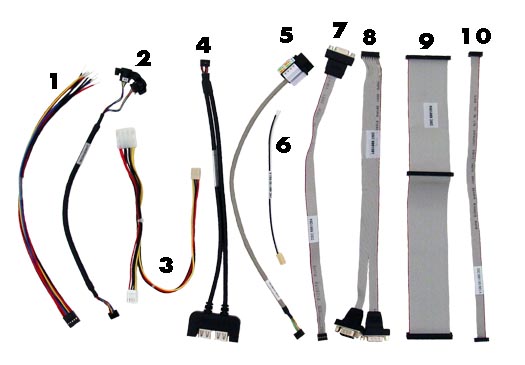

Pegasus Cable Kit |
The Pegasus cable kit includes cables for Pegasus input and output. All cables are also available individually.
| No. |
Qty. |
Cable |
Description |
| 1 |
1 |
6981175 |
Crimp 2x5 0.1"- Power In |
| 2 |
1 |
6981162 |
CRIMP 2X5 2mm-Keyboard + Mouse, 12" |
| 3 |
1 |
6981006 |
Power output cable |
| 4 |
2 |
6981171 |
Crimp 2x5 2mm-Dual USB A |
| 5 |
1 |
6981161 |
RJ45PNL-CRIMP2x5 2mm, 12" |
| 6 |
1 |
6981180 |
External Battery |
| 7 |
1 |
6981084 |
VGA, 2mm 2x5 crimp to DD15F |
| 8 |
1 |
6981081 |
Dual Serial Port 2mm 2x10 to 2x DB9M |
| 9 |
1 |
6981004 |
IDE, 44 conductor 2mm ribbon cable |
| 10 |
1 |
6981165 |
IDC10FxIDC10F, 2mm, 12" |
| top |
|
|
Specifications |
| CPU and System |
| Processor |
AMD Geode LX800 processor fan-less at 500MHz |
| Cache |
64KB L1 cache and 128KB L2 Cache |
| Memory |
256MB SDRAM on-board |
| Chipset |
AMD LX800 + CS5536 |
| BIOS |
Phoenix-Award PnP Flash BIOS |
| Mass Storage |
1 x Ultra DMA 33, supports 2 IDE devices including:
1 x CompactFlash IDE Type II Socket |
| Audio |
Speaker Out |
| Watchdog Timer |
255-level Reset |
| I/O |
| Serial Port |
1 x RS-232 ports (COM1)
1 x RS-232/422/485 port (COM2) |
| USB Port |
4 x USB 2.0 ports |
| Keyboard/Mouse |
1 x PS/2 Keyboard and Mouse |
| Expansion Bus |
1 x PC/104-Plus (ISA & PCI) interface |
| Ethernet |
| Chipset |
Realtek 8100CL 10/100Base-T Ethernet |
| Display |
| Graphics Chipset |
AMD Geode LX800 CPU integrated VGA controller
with 2D Engine (Shared memory Max. 64MB) |
| Graphics Interface |
LCD support 18/24 bit TTL up to 1280 x 1024 |
| General |
| Power Input |
5V +/-5% |
| Power Consumption |
5W typical (1A) |
| Operating Temperature |
-40ºC to +85ºC |
| Operating Humidity |
0 - 90% (non-condensing) |
| MTBF |
87,400 hours |
| Dimensions (W X H) |
4.050" x 3.775" |
| RoHS |
Compliant |
| top |
|
|
