Products   >   End-of-Life Products   >   Discontinued Products   >   Prometheus Development Kit
CONTENTS
PR-Z32 Prometheus PC/104 CPU
PNL-Z32 Panel I/O Board
PB-Z32-300 Pandora 3" Enclosure
FD-32 32MB FlashDisk Module
ACC-IDEEXT FlashDisk / IDE Extender Board
PC/104 VGA Board
C-PRZ-Kit Prometheus Cable Kit
120VAC wall adapter
All Mounting Hardware
User Documentation
Utility Software
ONLINE SUPPORT
Request Product information
Request Technical Support
DOWNLOADS
Using IDE Devices with Diamond Systems PC/104 CPUs
(.pdf, 17.2 kb)
Helios Linux Development Kit Quick Start Guide
(.pdf, 77.7 kb)
CPR-Z32-EA-DK Development Kit Contents
(.pdf, 48.9 kb)
CPR-Z32-E-DK Development Kit Contents
(.pdf, 48.8 kb)
Prometheus Manual v1.47
(.pdf, 856.7 kb)
Pandora Assembly Instructions
(.pdf, 831.1 kb)
Panel I/O Board Schematic
(.pdf, 153.3 kb)

Prometheus Development Kit

CPU Board and Accessories bundle

Description
Panel I/O Board
Pandora Enclosure
FlashDisk Module
FlashDisk Programming / IDE Extender Board
Cable Kit
Get an online quote


Description

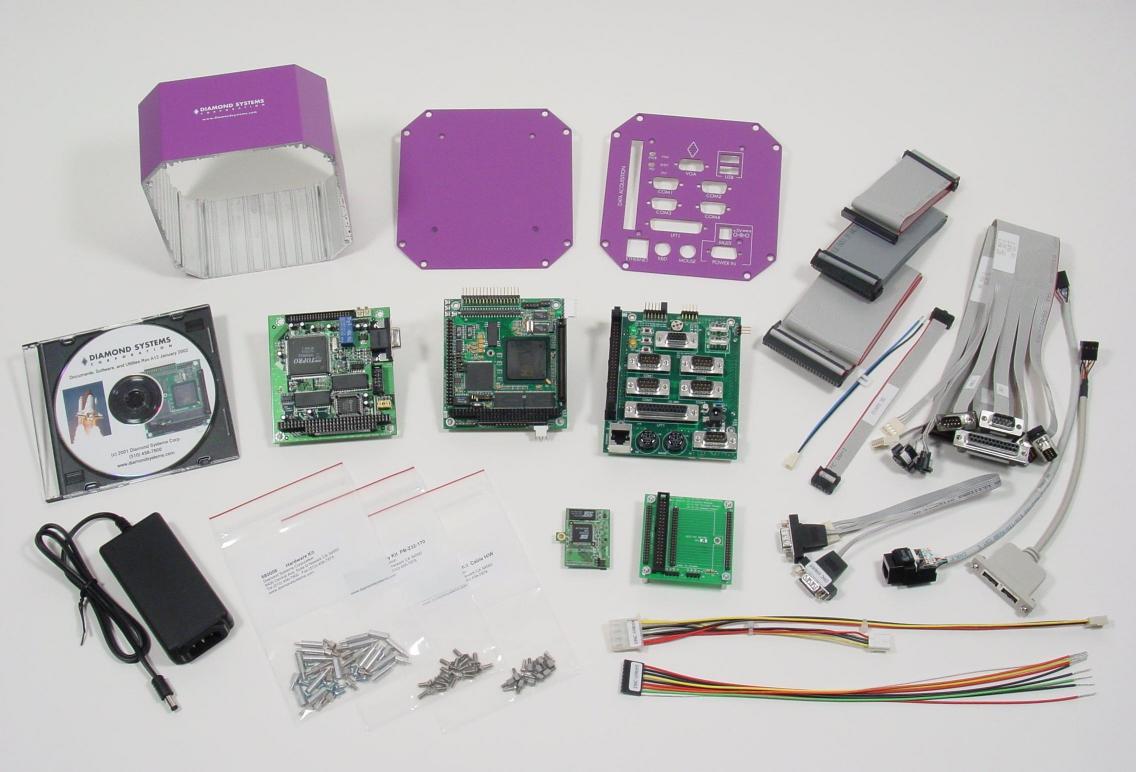

The Prometheus Development Kit includes everything you need to develop your application on the Prometheus CPU. The kit includes the CPU board, a panel I/O board, a complete set of cables for use as an alternative to the panel board, a 3rd party VGA board, a 32MB flashdisk module, a flashdisk programming / expansion board, a 3" Pandora enclosure, a 120VAC wall adapter for power input, mounting hardware, system documentation, and utility software.

The kit is available in two versions based on the two available versions of the Prometheus CPU: with data acquisition and without.

Also check out our Linux Development Kit designed specifically for Prometheus. Our "Flash Linux" runs inside the flashdisk module and lets you build a completely solid-state embedded Linux computer that boots in just 15 seconds.


top
Panel I/O Board

The PNL-Z32 panel I/O board provides a unique cable-free means of enabling access to all the I/O on the Prometheus CPU. This board plugs directly onto the top of the CPU board and connects to the system I/O, USB, Ethernet, Data Acquisition, and Power connectors. See here for more information on the Prometheus Panel I/O board.

top
Pandora Enclosure

The Pandora enclosure and panel board provide a neat compact package for the development system that eliminates lab bench clutter and improves portability. The enclosure has room for the CPU, the panel board, the video board, and one more optional PC/104 board. You can also install a notebook hard drive inside the enclosure. See here for more information on the Pandora enclosure system.

top

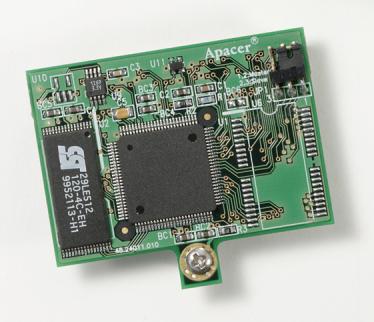

FlashDisk Module

A 32MB FlashDisk module is included with the development kit. It provides 32MB of solid state memory that looks like a C drive to any operating system. See here for more detail on the FlashDisk module.

top

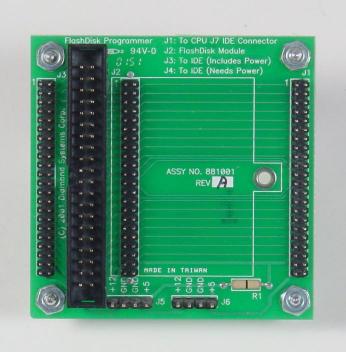

FlashDisk Programming / IDE Extender Board

The development kit also includes a handy breakout board that can be used for file transfer between the FlashDisk module and another drive during system development. It can also be used to enable simultaneous operation of two drives with Prometheus. Both 40-pin and 44-pin connectors and cables are included to allow connection to any type of drives, including 3.5" hard drives, notebook drives, and CD-ROM drives. See here for more detail on the extender board.

top

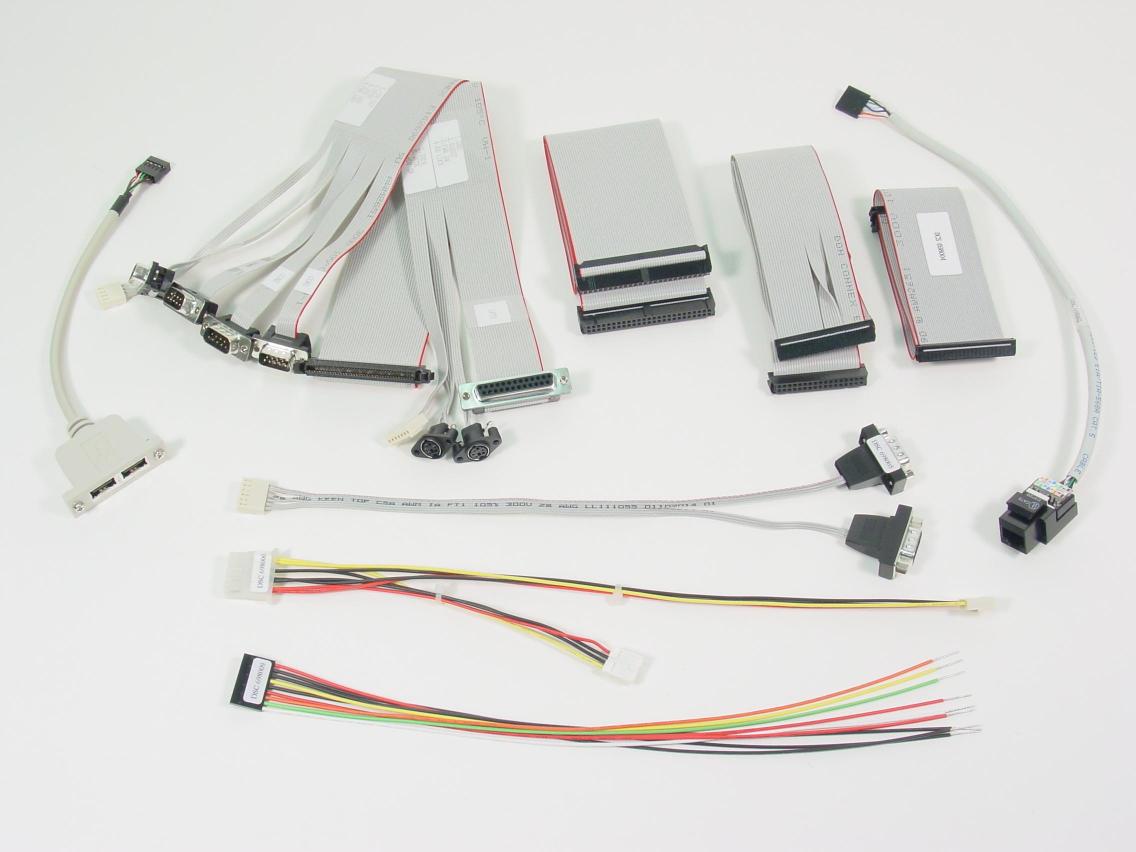

Cable Kit

A complete cable kit is also included as an alternative to the panel board for situations where access to the CPU and its configuration jumpers is required during system development. A total of 9 cables are included in the kit to allow connection to all the I/O connectors on the CPU board. See here for more information on the Prometheus cable kit.

top
Get an online quote


Prometheus Development Kit
available models:
Please login or signup for an online quote request.
