Products   >   Processor Modules   >   Single Board Computers   >   Rhodeus SBC
FEATURES
Low Power PC/104 Single Board Computer
AMD Geode LX800 Processor at 500MHz
1 x 200-pin DDR SO-DIMM up to 1 GB SDRAM
10/100Mbps Ethernet
ATA/IDE : 1 x Ultra DMA 33 IDE drives
Flash Disk : 1 x Disk On Chip Socket
1 x Type II CompactFlash Socket
Support CRT and 18/24 bit TTL
2 x USB 2.0 Ports and 2 x Serial Ports
-40C to +85C or
-20C to +71C operating temperature
ACCESSORIES
Rhodeus Software Development Kit
Pandora PC/104 Enclosure for Rhodeus SBCs
SO-DIMM Memory
Rhodeus Cable Kit
Octavio Ruggedized Systems
ONLINE SUPPORT
See Rhodeus SBC Technical Resources
Discussion Topics
Frequently Asked Questions
Request Product information
Request Technical Support
DOWNLOADS
Rhodeus Datasheet
(.pdf, 610.7 kb)
Rhodeus User Manual
(.pdf, 2.7 MB)
Rhodeus Installation Guide
(.pdf, 223.8 kb)
Rhodeus Panel I/O Board User Manual
(.pdf, 728.9 kb)
Rhodeus Watchdog Timer Application Note
(.pdf, 107.5 kb)
Linux 2.6 Drivers for Pegasus and Rhodeus
(.zip, 587.0 kb)
Windows CE 5.0 Drivers for Pegasus and Rhodeus
(.zip, 505.8 kb)
AMD LX800 OS Drivers for Pegasus and Rhodeus
(.zip, 1.1 MB)
Ethernet Drivers for Pegasus and Rhodeus
(.zip, 4.9 MB)
ISA Bus Drivers for Pegasus and Rhodeus
(.zip, 0.5 kb)
Monitor Drivers for Pegasus and Rhodeus
(.zip, 2.9 MB)
Graphics Drivers for Pegasus and Rhodeus
(.zip, 494.0 kb)

Rhodeus SBC

Low-Cost, Low-Power AMD Geode LX800 PC/104 SBC with CRT/LCD, LAN and CompactFlash

Rhodeus SBC
click for a larger image
Description
System Block Diagram
Development Kits
Pandora and Panel I/O Board
Specifications
Get An Online Quote
Customize Me

Description

Rhodeus is a fan-less PC/104 SBC which features the AMD Geode LX800 low power consumption processor running at 500MHz. It uses high speed DDR SDRAM providing maximum capacity at 1GB. Rhodeus offers fully integrated PC functionality with low power consumption which allows Rhodeus to operate in harsh environments where the airflow for heat dissipation is restricted and heat sinks or fans are unacceptable. Its ruggedability gives it the power to perform round-the-clock in unattended environments.

Other advantages of Rhodeus includes high speed 10/100 Ethernet LAN and ample I/O interfaces, 2 serial ports, 2 USB 2.0 ports, parallel port for peripheral connection, 1 ATA-33 channel, Compact Flash Type-II socket, PC/104 expansion bus, LCD & CRT interface, floppy, and watchdog timer. Rhodeus has all the necessary features and expansion capability in 96 X 90 mm form factor, which makes it ideal for applications where space is limited but multiple I/O configurations are needed. Rhodeus supports Windows 2000, Windows XP, Windows CE 5.0, and Linux.

top
System Block Diagram


System Block Diagram



top
Development Kit

A Linux software development kit is available for Rhodeus. The Rhodeus Linux Kit (SDK-RDS-LNX) contains a 512MB CompactFlash disk with a bootable linux image pre-loaded, a software CD with the linux tool chain and a backup image, and documentation.

top
Pandora and Panel I/O Board

pc104 enclosure

Rhodeus single board computers can be mounted inside Diamond's Pandora PC/104 enclosure with a cable-free panel I/O board to form a rugged, compact, completely self-contained industrial computer system. The Pandora enclosure, coupled with the panel I/O board, features fast and easy assembly because most or all internal cables can be eliminated. Rather than requiring the installation of special corner mounts or forcing the stack into a set of corner guides, the entire stack is bolted directly to the front plate of the case, forming a rugged, easily-handled assembly. Click here for more information on the Pandora PC/104 Enclosure.

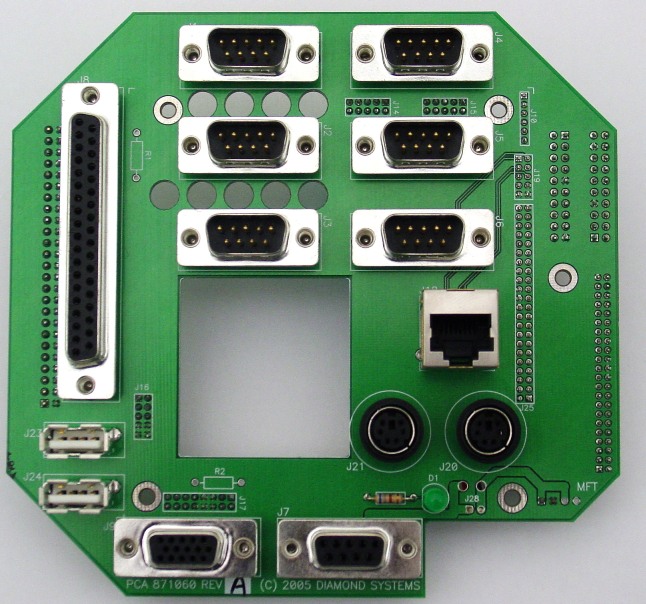

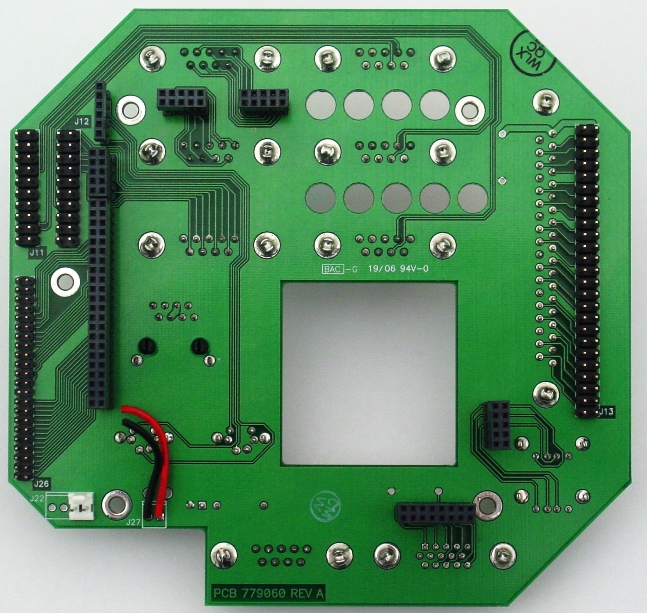

Rhodeus Panel I/O Board: Top Rhodeus Panel I/O Board: Bottom
Top
Click here for a larger image
Bottom
Click for a larger image

Transition Cables or PC-Style Connectors

All I/O on Rhodeus is made available on 2mm pitch pin headers for use with low-cost cables. To enhance the use of Rhodeus in harsh environments requiring outstanding resistance to shock and vibration, Diamond Systems offers our rugged Pandora PC/104 enclosure that provides a cable-free configuration via a small panel I/O board that installs directly on top of the Rhodeus SBC to instantly convert all I/O to PC-style connectors.

top
Specifications

CPU and System
Processor AMD Geode LX800 processor at 500MHz
Cache 64k L1 cache and 128k L2 Cache
Memory 1 x 200-pin DDR SO-DIMM up to 1GB SDRAM
Chipset AMD LX800 + CS5536
BIOS Phoenix-Award PnP Flash BIOS
ATA/IDE 1 x Ultra DMA 33, support 2 IDE drives
Flash Disk 1 x CompactFlash Type II Socket up to 8GB
Audio Speaker Out
Watchdog Timer 255-level Reset
I/O
Serial Port 1 x RS-232 ports (COM1)
1 x RS-232/422/485 port (COM2)
Parallel Port SPP/EPP/ECP mode
Floppy Support 1 x Floppy disk drive
USB Port 2 x USB 2.0 port
KB/MS 1 x PS2 K/B and Mouse
Expansion Bus 1 x PC/104 interface
Ethernet
Chipset Realtek 8100CL 10/100 base-T Ethernet
Display
Graphics Chipset AMD Geode LX800 CPU integrated VGA controller
with 2D Engine (Shared memory Max. 64MB)
Graphics Interface LCD support 18/24 bit TTL up to 1280 x 1024
General
Power Input 5V +/-5%
Power Consumption 5W typical (1A)
Operating Temperature -40C to +85C or -20C to +71C
Operating Humidity 0 ~ 90% (non-condensing)
Dimensions (L x W) 96 x 90 mm (3.775 x 3.550)
MTBF RDS800-XT 157,899 hours at 25C
RoHS Compliant

top
Get An Online Quote


Rhodeus SBC
available models:
RDS800-XT
Rhodeus-XT SBC, 500MHz LX800, 0MB RAM, -40C to +85C
RDS800-LC
Rhodeus-LC SBC, 500MHz LX800, 0MB RAM, -20C to +71C
MEM-512-04
512MB DDR SO-DIMM SDRAM
MEM-1024-04
1024MB DDR SO-DIMM SDRAM
C-RDS-KIT
Rhodeus Cable Kit
PNL-RDS-01
Rhodeus Panel I/O Board with mounting hardware
SDK-RDS-LNX
Rhodeus Linux 2.6.23 Software Development Kit with Linux image on 512MB CompactFlash disk and software tools on CD, and documentation
Please login or signup for an online quote request.


PC/104 is a trademark of the PC/104 Embedded Consortium. All other trademarks are the property of their respective owners.
