Description

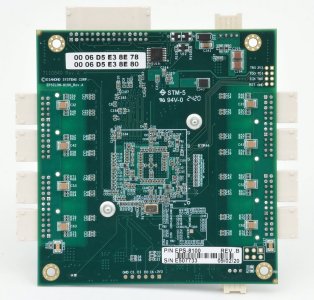

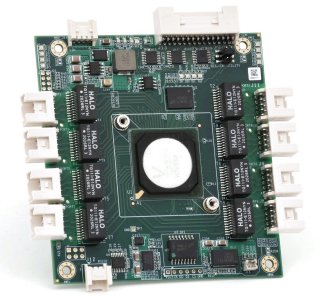

Epsilon-8100 is a managed Layer 2+ Ethernet switch module offering eight 10/100/1000Mbps copper twisted pair ports in the compact PC/104 form factor. Epsilon-8100 is designed for rugged applications including industrial, on-vehicle and military.

Epsilon-8100 is a standalone switch that does not require any host computer interface. All switch functions are managed by a 416MHz MIPS processor embedded directly into the switch. The processor is accessed via an in-band web interface over one of the Ethernet ports or via an out-of-band command-line interface over an RS-232 serial port. The integrated web interface provides an intuitive GUI for use in configuring and managing all switch functionality. On-board memory holds dual application images, boot code, MAC addresses, and other parameters, and can also be used for program execution.

Epsilon-8100's advanced Ethernet switch board includes two innovative features that enable automatic power savings. The switch can detect unused Ethernet ports on network devices and power them down or place them in stand-by mode. Additionally, the switch actively adjusts the power level needed based on cable length, saving energy on links shorter than the 100m maximum specified length.

Input power is provided through the built-in, wide-range +5 to +36VDC power supply, enabling operation using industrial power sources. Epsilon-8100 was designed for use in vehicle and harsh environment applications. All I/O connectors are latching, providing enhanced reliability over the RJ-45 connectors used in commercial Ethernet switches. A 50% thicker PCB provides better protection against vibration in vehicle environments. The wide range 5-36V input power supply is compatible with all common vehicle and industrial power sources. The -40ºC to +85ºC operating range makes Epsilon-8100 suitable for use in outdoor and vehicle applications.

Epsilon-8100 comes loaded with all required firmware, enabling its immediate operation without any development effort. The included web interface provides an intuitive GUI for use in configuring and managing switch functionality.

Block Diagram

Cable Kit

cable kit C-EPS8000-KIT includes all cables needed for the EPS-81xx series of Ethernet switches.

C-EPS8000-KIT includes the following cables:

Specifications

Models and Accessories

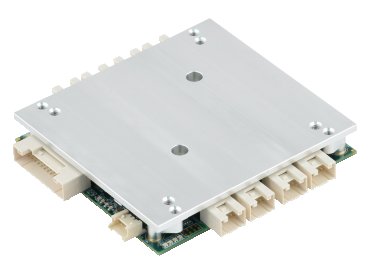

Epsilon-8100 Available Models: EPS-8100-XT Managed 8-Port Gigabit Ethernet Switch with heatspreader, PC/104 form factor, -40°C to +85°C operating temperature EOL EPS-8100 Managed 8-Port Gigabit Ethernet Switch with heatsink, PC/104 form factor, -40°C to +85°C operating temperature EOL Please login or signup for an online quote request.

Available:	This model is generally available from stock. It is a mainstream or focus product in active promotion.
Coming soon:	This is a preview of an upcoming product or model. Contact Sales for an expected availability date.
EOL:	End of life. This product is no longer in production, but it may still be available in stock or manufacturable. Contact Sales if you are interested in buying this product. If there is no stock on hand, then a minimum order quantity will apply.
MOQ or Minimum Order Quantity:	This model is not generally stocked but is buildable on demand. If we have it in stock you may purchase up to the available quantity. If it is out of stock then a minimum order quantity is required to meet the factory minimum lot size. This designation usually applies to less popular models of a current product or older products that have low customer demand. Contact Sales for further information.

Cables and accessories Available Models: ACC-HS104-12.7 Heat Sink Accessory C-EPS8000-KIT Epsilon-8000/8100/8130 Cable Kit: Ethernet (8), power, and serial cables 6981052 Cable, Ethernet 1G, 2mm Locking to PNL 6981051 Cable, Power, 4pin Locking Hdr With Flying Leads 6981050 Serial Cable, 1x3 2mm to DB9M Please login or signup for an online quote request.
