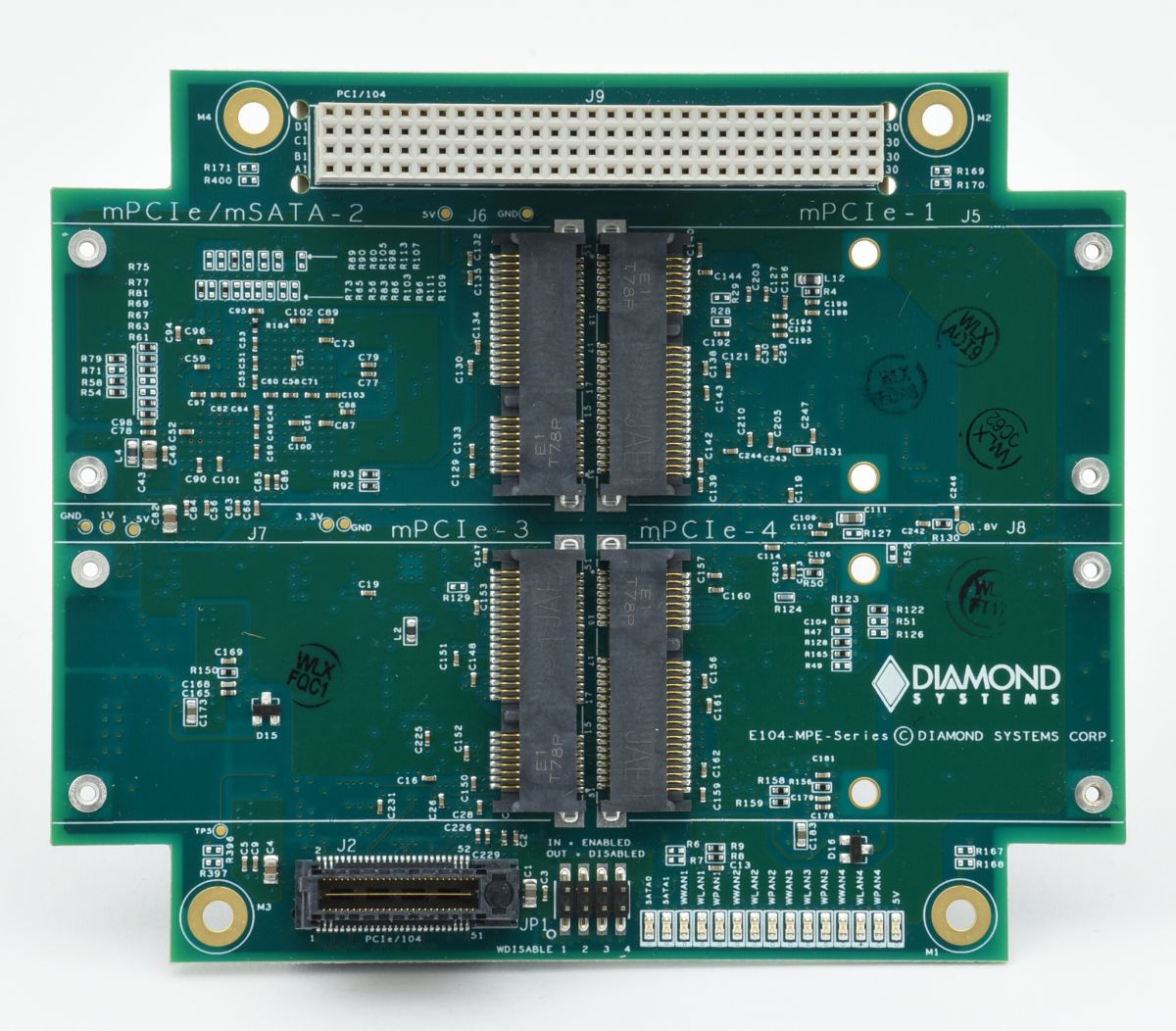

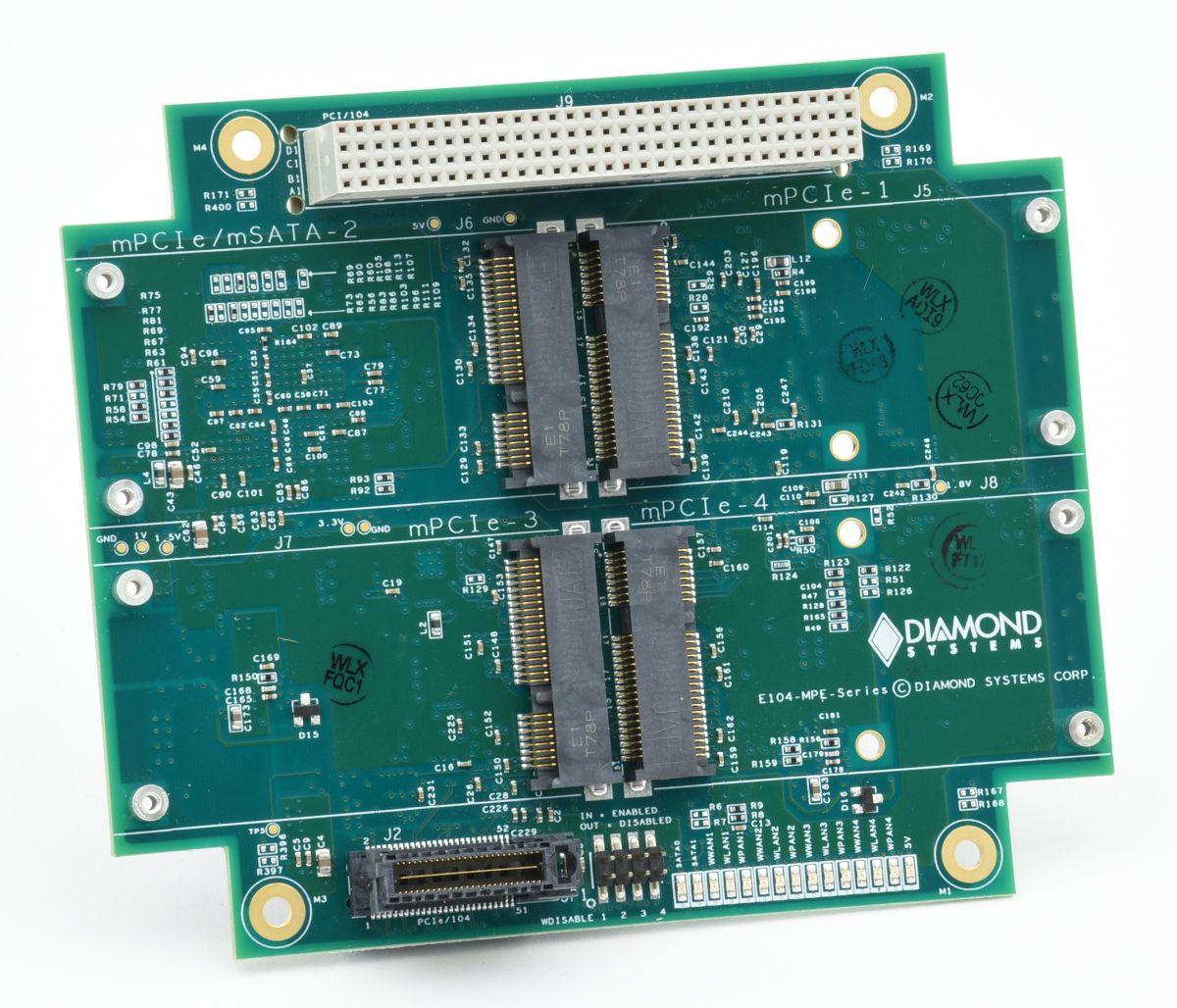

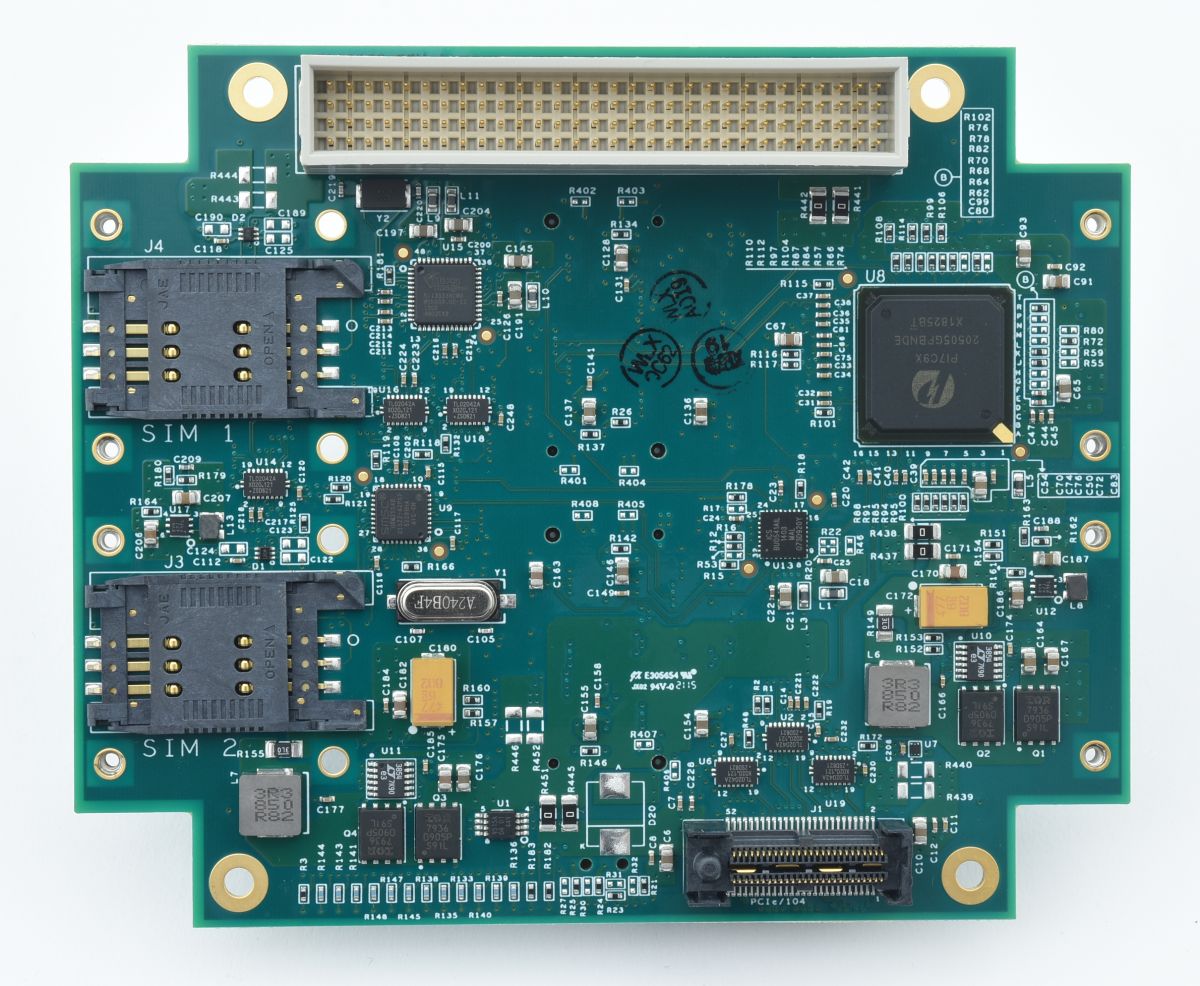

E104-MPE-04 4 sockets bottom side
PCIe/104 MiniCard Carrier: Enclosures & Accessories, Adapters and accessories for adding mass storage, prototyping capabilities, and more., PCI/104-Express

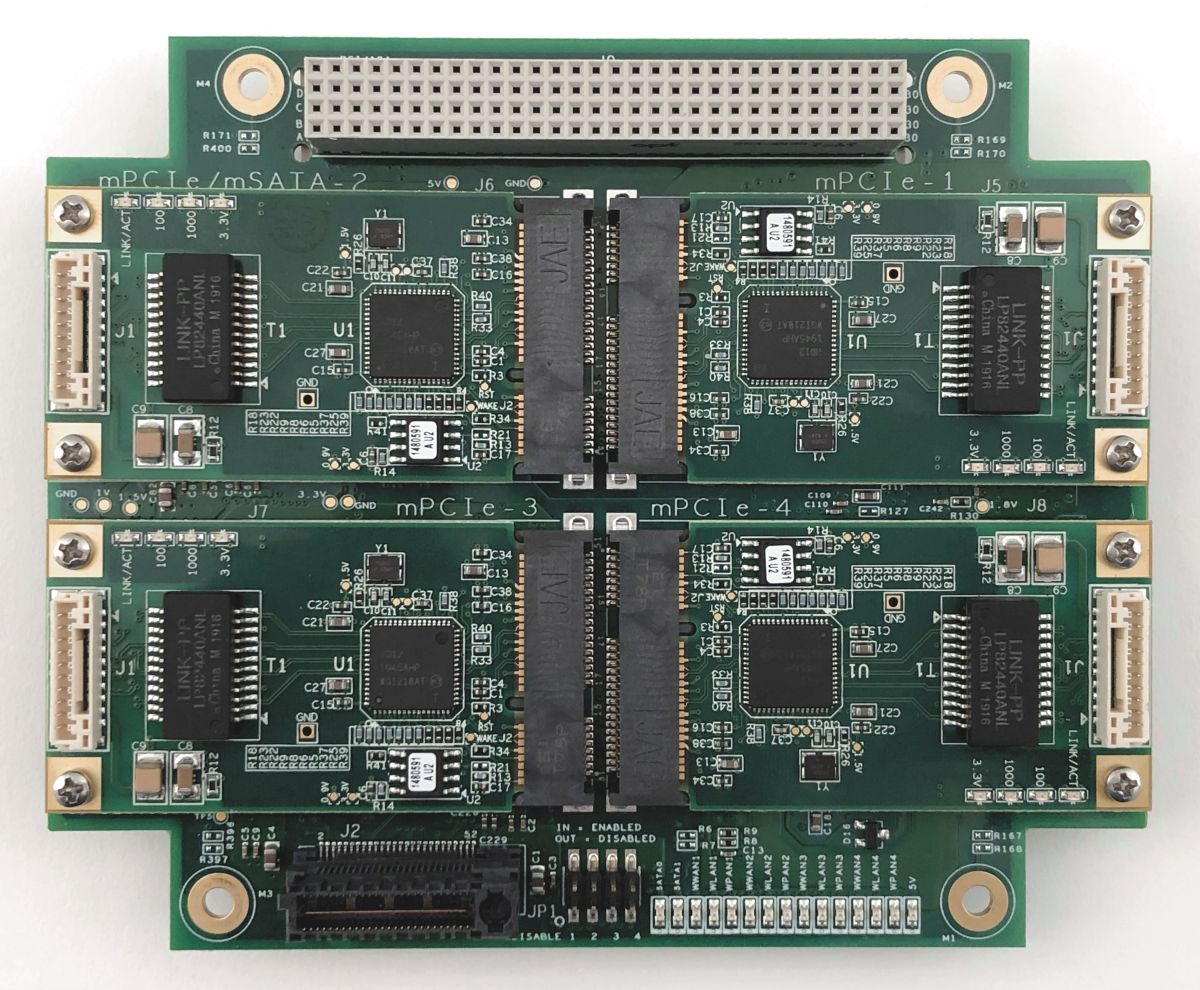

Quad carrier with 4 Ethernet minicards
PCIe/104 MiniCard Carrier: Enclosures & Accessories, Adapters and accessories for adding mass storage, prototyping capabilities, and more., PCI/104-Express

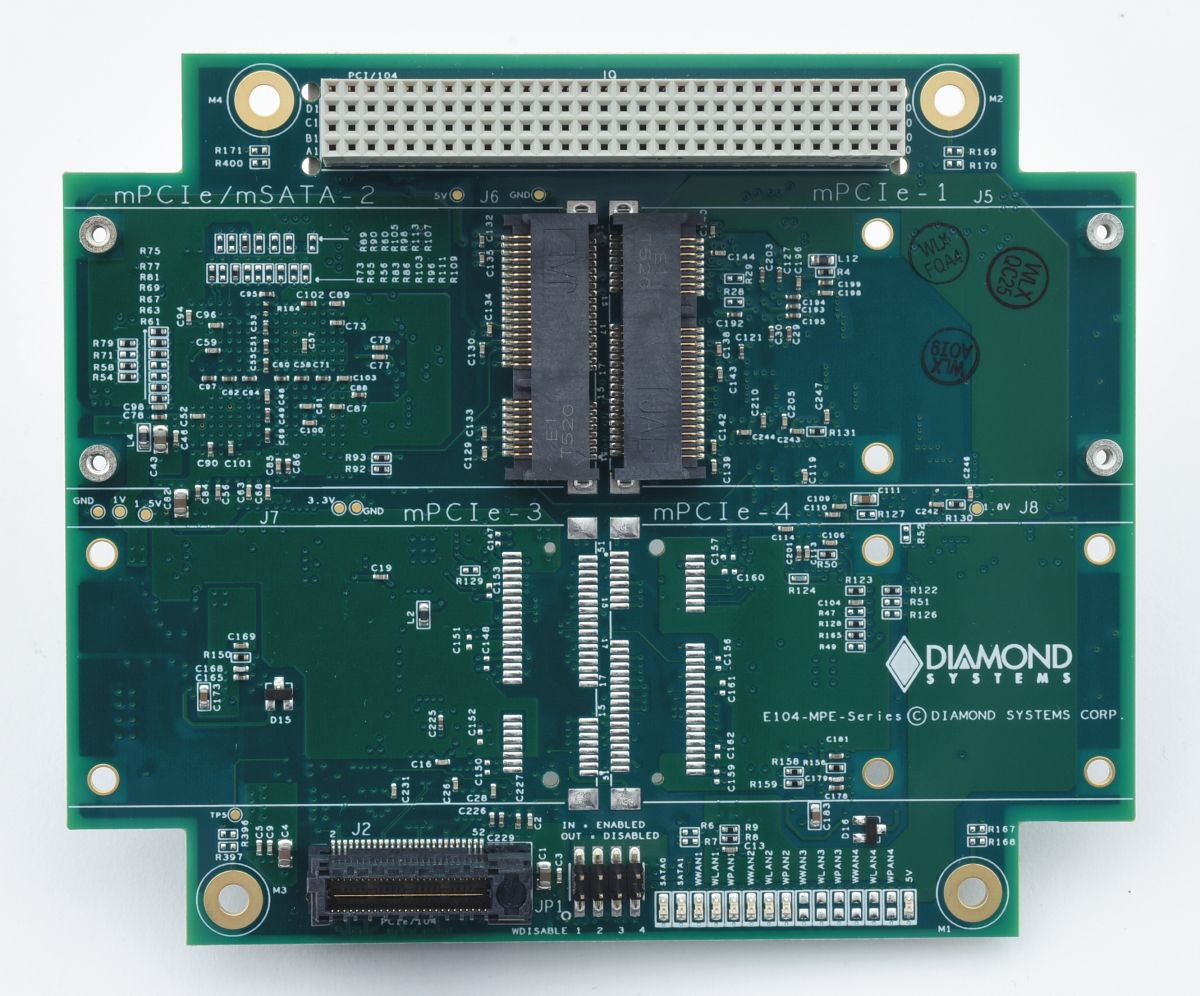

E104-MPE-02 2 sockets top side
PCIe/104 MiniCard Carrier: Enclosures & Accessories, Adapters and accessories for adding mass storage, prototyping capabilities, and more., PCI/104-Express

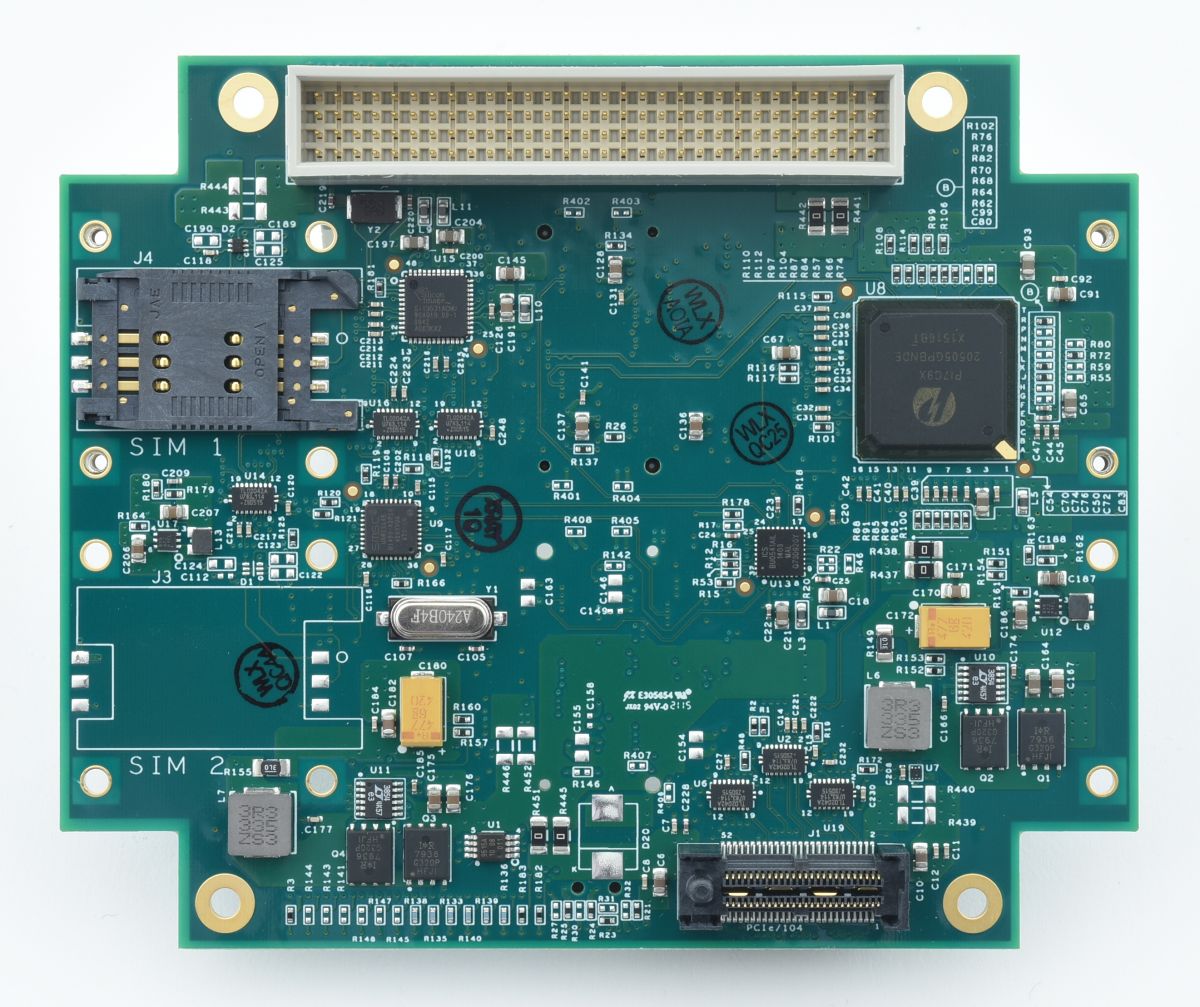

E104-MPE-02 2 sockets bottom side
PCIe/104 MiniCard Carrier: Enclosures & Accessories, Adapters and accessories for adding mass storage, prototyping capabilities, and more., PCI/104-Express

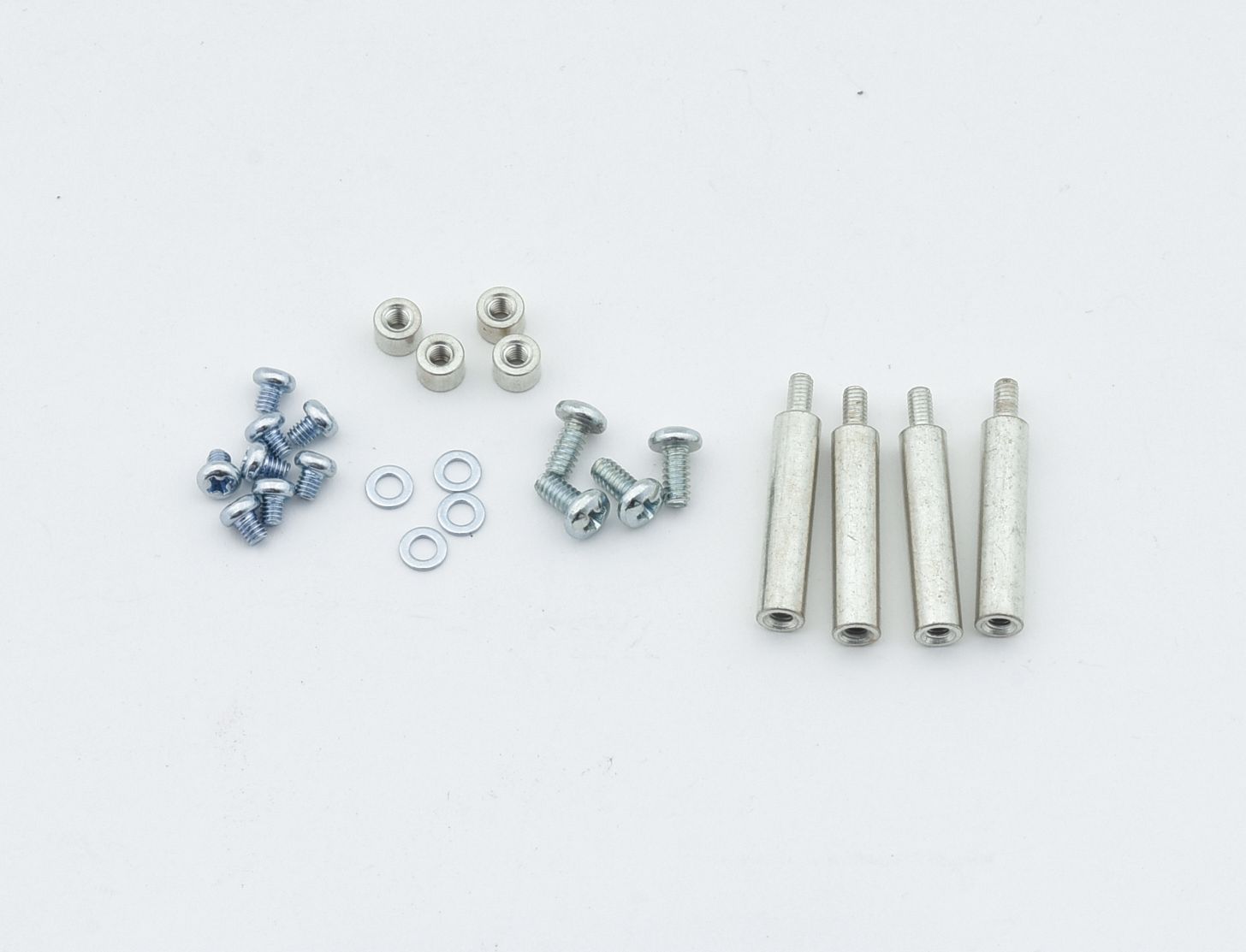

Mounting hardware kit included (22mm PC/104 spacing)
FEATURES
4 PCIe MiniCard sockets
PCIe x1 and USB interfaces
Supports full and half size PCIe MiniCards
SIM cards supported in 2 sockets
PCI-104 pass through
PCI/104-Express form factor with wings
4.5" x 3.775"
Extremely rugged -40°C to +85°C operating temperature
MIL-STD-202G shock and vibration compatible
Customize Me

Description

The PCIe MiniCard carrier offers four PCIe MiniCard sockets on a compact PCI/104 Express form factor board. All four sockets have PCIe x 1 and USB interfaces and support full size and half size PCIe MiniCard modules.

The module provides full support to all sockets while consuming only a single lane of host SBC resources. SIM card support is provided for two sockets.

All power is derived from the PCIe/104 connector 5V power tab. The PCI-104 connector provides a pass through connection and is not used by the module.

Extended temperature capability (-40°C to +85°C) enables the board to operate in environments with extreme temperature swings, such as vehicles or outdoor installations. For further enhanced ruggedness, zero ohm resistors can replace jumpers.

Block Diagram


E104-MPE-04 Block Diagram

Specifications

Number of PCIe MiniCard sockets 4
Card Size Full and half size cards supported
SIM support 2 sockets support SIM cards
Interfaces PCIe x1 and USB
Host interface PCI-104 pass through
LEDs LEDs provided for all 4 sockets
Form FactorDimensions PCI/104-Express form factor with wings:
4.5" x 3.775" (114mm x 96mm)
Power supply +5VDC ±5%
Operating temperature -40°C to +85°C (-40°F to +185°F)
Operating humidity 5% to 95% non-condensing
Shock MIL-STD-202G compatible
Vibration MIL-STD202G compatible
MTBF tbd hours at 20°C
Weight 2.5oz (71g)
RoHS Compliant

Models and Accessories


PCIe/104 MiniCard Carrier
available models:
E104-MPE-04
PCI/104-Express Quad PCIe MiniCard Carrier
E104-MPE-02
PCI/104-Express Dual PCIe MiniCard Carrier
