      DS-MPE-GPIO  36 Channel Digital I/O PCIe MiniCard
DS-MPE-GPIO: I/O Expansion Modules, Wide-temperature PC/104, PC/104-<i>Plus</i>, PCIe/104 / OneBank, PCIe MiniCard, and FeaturePak modules featuring programmable bidirectional digital I/O, counter/timers, optoisolated inputs, and relay outputs., PCIe MiniCard
OverviewSpecificationsOrdering
Information
Support

Description

The DS-MPE-GPIO is a rugged, low cost 36-channel digital I/O PCIe MiniCard module that is ideal for digital I/O expansion in embedded and OEM applications.

An FPGA provides 36 buffered digital I/O lines that can be configured to operate in simple I/O mode in the form of 8-bit and 4-bit ports, or in counter/timer and pulse width modulator modes. Two ports are fixed digital I/O ports with programmable direction in 8-bit groups. One port can operate as either a 4-bit DIO or 4 counter/timers with 1 input and 1 output per counter. One port can operate as either 8 DIO or up to 8 pulse width modulators.

Extended temperature operation of -40°C to +85°C enables the board to operate in environments with extreme temperature swings, such as vehicles or outdoor installations.

The DS-MPE-GPIO product comes with the 36-channel PCIe MiniCard digital I/O module, the CK-DAQ02 cable kit with two digital I/O cables, and a hardware kit with mounting screws.

DS-MPE-GPIO: I/O Expansion Modules, Wide-temperature PC/104, PC/104-<i>Plus</i>, PCIe/104 / OneBank, PCIe MiniCard, and FeaturePak modules featuring programmable bidirectional digital I/O, counter/timers, optoisolated inputs, and relay outputs., PCIe MiniCard


DS-MPE-GPIO Cable Kit

CK-DAQ02 includes the following cables:

No. Qty Cable Description Drawing
1 2 6980501 1.25mm 20 Pin IDC Show

Number of DIO 36
Pull-up / Pull-down Software configurable
Transceivers 3245 with high current output
Power-up / Reset DIO in input mode
Pulse Width Modulators Up to 4 24-bit circuits configurable
0-100% duty cycle
On/off control
Programmable polarity
Counter / Timers 4 32-bit circuits configurable
Programmable
Input power +3.3VDC +/-5%
Power consumption 100mA @ 3.3V
Software drivers Windows 7, XP, CE
Linux 2.6.16, 2.6.27, 2.6.31, 2.6.32
Universal Driver Support for all functions
Form Factor PCIe MiniCard full size
Dimensions 50.95 x 30mm (2 x 1.18")
Operating temperature -40ºC to +85ºC
Operating humidity 5% to 95% noncondensing
MTBF tbd
Weight 8.5g (0.3oz)
RoHS Compliant

Get an online quote


DS-MPE-GPIO
Available Models:
DS-MPE-GPIO
36-channel PCIe MiniCard DIO Module
Available
Please login or signup for an online quote request.



Cables and accessories
Available Models:
CK-DAQ02
Cable Kit, DS-MPE-GPIO/DAQ0804, Qty 2 6980501 DAQ Cables
6980501
Cable, DAQ, 1.25mm 2x10 to 2mm 20 Pin IDC Skt, 12"L Ribbon
Please login or signup for an online quote request.

Product Support for DS-MPE-GPIO

User Manual

DS-MPE-GPIO Hardware User Manual(.pdf, 491.9 KB)
Visit Universal Driver software page
DSCUD 8.4.0 Driver
DSCUD 8.4.0 Demos-DSMPEGPIO
Universal Driver User Manual

DS-MPE-GPIO Universal Driver Software Manual(.pdf, 968.9 KB)
Datasheet

DS-MPE-GPIO Datasheet(.pdf, 244.4 KB)
FEATURES
36 buffered digital I/O lines
Configurable for up to 4 24-bit PWM
Configurable for 4 programmable counter/timers
3245 transceivers for high current output
Sofware configurable pull-up/pull-down
+3.3VDC input power
Latching connectors for increased ruggedness
Support for Windows 7, XP, CE, and Linux 2.6
Universial Driver support for all functions
Operating temperature -40ºC to +85ºC
PCIe MiniCard full size form factor (50.95 x 30mm)
ONLINE SUPPORT
See DS-MPE-GPIO Technical Resources
Request Product information
Request Technical Support
DOWNLOADS
DS-MPE-GPIO Hardware User Manual
(.pdf, 491.9 kb)
DS-MPE-GPIO Datasheet
(.pdf, 244.4 kb)
RELATED PRODUCTS
This PCIe I/O module can be used with the following Diamond SBCs and carriers:
E104-MPE PCI/104-Express Quad PCIe MiniCard Carrier
Venus 3.5" Rugged SBC with Intel Kaby Lake 7th Gen Core i7 Processor
GEMINI Rugged 3.5-inch SBC with PCI/104-Express expansion

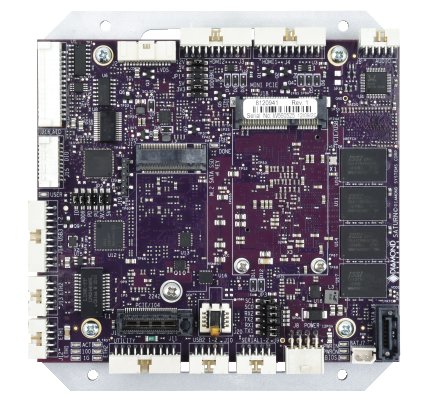

Saturn Rugged Apollo Lake x7-E3950 SBC with Data Acquisition and PCIe/104 Expansion
