Products   >   Nvidia Solutions   >   NVIDIA Solutions

NVIDIA® Jetson Embedded Computing Solutions

  NVIDIA




Diamond Systems' family of NVIDIA embedded solutions delivers cost-effective, rugged and I/O-rich AI-at-the-edge computing solutions based on NVIDIA Jetson Nano, NX, and AGX Xavier™ modules. The family includes carrier boards as well as finished systems with a Linux OS loaded and ready for deployment.

Diamond is the first and only NVIDIA solution provider to marry the world of Nvidia Jetson with the world of rugged PCIe/104 I/O expansion, enabling the creation of next-generation high performance, I/O-intensive, rugged embedded systems.

Diamond's NVIDIA solutions target a range of industrial and military applications, with a focus on harsh environments (such as vehicles and other outdoor applications) and I/O-intensive applications.

Custom Jetson carrier and system design and manufacturing services are available using our extensive proven technology library and global design / manufacturing network. Contact us to learn how we can fulfill your unique requirements.



ProductJetson ModuleCameraI/ODAQExpansion / StorageSize

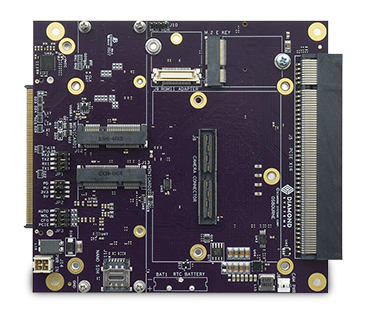

Osbourne
AGX Orin8x CSI 2-lane1x HDMI, 4x serial, 3x USB 3.2, 4x USB 2.0, 1x 10GbE, 1x 1Gbe, 2x CAN8x GPIO 3.3VM.2 2280 NVMe PCIe x44.7 x 4.5” / 120 x 115mm

Stevie
AGX Xavier8x CSI 2-lane2x HDMI, 4x serial, 2x USB 3.1, 2x USB 2.0, 2x GbE, 2x CAN6 A/D, 2 D/A, 13 GPIO 3.3VM.2 2280 NVMe, PCIe/USB Minicard3.62x4.17” / 92x106mm

JetBox Stevie
AGX XavierN/A2x HDMI, 2-4x serial, 2x USB 3.1, 2x USB 2.0, 2x GbE, 0-2x CANN/AM.2 2280 NVMe, PCIe/USB Minicard5.9x4.4x2.8” / 150x112x72mm

Elton
AGX Xavier8x CSI 2-laneHDMI, LVDS, 4x serial, 2x USB 3.1, 2x USB 2.0, 2x GbE, 2x CAN6 A/D, 2 D/A, 13 GPIO 3.3VM.2 2242 NVMe, SkyWire modem,, PCIe/104 x8 and x15.75x4.00” / 146x102mm

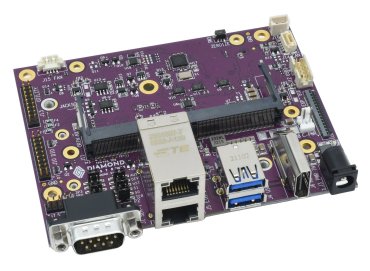

Jackson
Orin Nano & NX8x MIPI/CSI via camera adapter connector2x Gbe, 3x USB 3.0, 1x USB 2.0, 2x serial, 1x HDMI, 1x CAN16x GPIO 3.3V/5VM.2 M-Key 2242/2280 NVMe, M.2 E Key 2230, PCIe Minicard, daughterboard expansion connector4.33x3.35” / 110x85mm

Jackson-ER
Orin Nano & NX8x MIPI/CSI via camera adapter connector2x Gbe, 3x USB 3.0, 1x USB 2.0, 2x serial, 1x HDMI, 1x CAN16x GPIO 3.3V/5VM.2 M-Key 2242/2280 NVMe, M.2 E Key 2230, PCIe Minicard, daughterboard expansion connector4.33x3.15” / 110x80mm

Floyd-SC
Nano
Xavier NX
TX2 NX
3x CSI 2-laneHDMI, DP, 2x serial, 1x USB 3.1, 2x USB 2.0, 2x GbE, CAN 16 GPIO 3.3/5VM.2 2242/2280 NVMe, daughterboard expansion connector4.3x3.3” / 110x85mm

Jetbox Floyd-SC
Nano, NX, TX2 NX1x Gbe, 1x USB 3.0, 2x USB 2.0, 2x serial, 1x HDMI8 GPIO 3.3V/5V with screw terminalsModule built-in eMMC, M.2 2280 NVME124mmW x 99mmD x 56mmH / 4.9" x 3.9" x 2.2"

Floyd
Nano
Xavier NX
TX2 NX
3x CSI 4-lane2x HDMI, 2x serial, 1x USB 3.1, 2x USB 2.0, 2x GbE with PoE option, 1x CAN8 GPIO 3.3/5VM.2 2280 NVMe, PCIe Minicard5.8x3.0” / 147x76mm

JetBox Floyd
Nano
Xavier NX
TX2 NX
N/A2x HDMI, 2x serial, 1x USB 3.1, 2x USB 2.0, 2x GbE with PoE option, 1x CAN8 GPIO 3.3/5V M.2 2280 NVMe, PCIe Minicard6.9x3.6x2.1” / 175x91x53mm

Ziggy
TX2, TX2i1x CSI 4 lanes1x HDMI, 1x Gigabit Ethernet, 1x USB 3.0 Type A + 1x USB 2.0 Type A6 ADC, 2 DAC, 13 DIOSD card3.43x1.97 / 50x87mm

Jetson Xavier NX 16GB
Jetson Xavier NX 16GBNvidia part no. 900-83668-0030-000
