Products   >   I/O Expansion Modules   >   Communications Modules   >   DS-MPE-SER4M
      DS-MPE-SER4M  4-Port High Speed Serial Port PCIe MiniCard Module
DS-MPE-SER4M: I/O Expansion Modules, Rugged, wide-temperature PC/104, PC/104-<i>Plus</i>, PCIe/104 / OneBank, PCIe Minicard, and FeaturePak modules featuring standard and optoisolated RS-232/422/485 serial interfaces, Ethernet, CAN bus, and digital I/O functions., PCIe MiniCard
OverviewBlock DiagramSpecificationsOrdering
Information
Support

Description

The DS-MPE-SER4M is a rugged, low cost 4-port high speed PCIe MiniCard module that is ideal for serial I/O expansion in embedded and OEM applications.

It offers four RS-232/422/485 serial ports in the PCIe MiniCard full size form factor with an extended operating temperature of -40°C to +85°C. Data rates on every port are up to 1Mbps in RS-232 mode, and 10Mbps in RS-422 and RS-485 modes. The board's protocols can be set by jumpers or programmatically selected with GPIO lines built into the UART and controlled via software. The serial I/O signals are provided on two miniature connectors with two ports per connector.

Extended temperature capability (-40°C to +85°C) enables the board to operate in environments with extreme temperature swings, such as vehicles or outdoor installations. In addition, the board may be custom-configured with 0-ohm resistors in place of jumper blocks for increased ruggedness in high-vibration environments.

The DS-MPE-SER4M product comes with the PCIe MiniCard hardware assembly, a cable kit with two dual serial cables, and a hardware kit containing jumpers and mounting screws.

CK-SER4M: Cable kit for DS-MPE-SER4M Quad Serial MiniCard


DS-MPE-SER4M Cable Kit

CK-SER4M includes the following cables:

No. Qty Cable Description Drawing
1 2 6980500 Cable 1.25mm to 2x DB9M Serial Show

DS-MPE-SER4M: I/O Expansion Modules, Rugged, wide-temperature PC/104, PC/104-<i>Plus</i>, PCIe/104 / OneBank, PCIe Minicard, and FeaturePak modules featuring standard and optoisolated RS-232/422/485 serial interfaces, Ethernet, CAN bus, and digital I/O functions., PCIe MiniCard

Number of serial ports 4
Protocols RS-232/422/485 on each port jumper or software configured
Maximum baud rate RS-232: 1Mbps
RS-422/485: 10Mbps
UARTs 16550 compatible
FIFO 256-byte TX/RX
ESD protection +/-15KV
Input power +3.3VDC +/-5%
Power consumption 0.462W @ 3.3V
Software drivers Windows XP
Linux 2.6.16, 2.6.27, 2.6.31, 2.6.32
Form Factor PCIe MiniCard full size
Dimensions 50.95 x 30mm (2 x 1.18")
Operating temperature -40ºC to +85ºC
Operating humidity 5% to 95% noncondensing
MTBF tbd
Weight 8.5g (0.3oz)
RoHS Compliant

Get an online quote


DS-MPE-SER4M
Available Models:
DS-MPE-SER4M
4-Port High Speed Serial PCIe MiniCard Module
Available
Please login or signup for an online quote request.



Cables and accessories
Available Models:
CK-SER4M
CK-SER4M cable kit
6980500
Cable, Dual Serial, JST GHR 1x10 to 2x DB9M, 12" Ribbon
Please login or signup for an online quote request.

Product Support for DS-MPE-SER4M

User Manual

DS-MPE-SER4M User Manual(.pdf, 603.7 KB)
DS-MPE-SER4M/OPT4 Sofware User Manual(.pdf, 1.4 MB)
Drivers

DS-MPE-SER4M Linux driver 4.0 and newer 32-bit(.zip, 1.5 MB)
v 0.5
DS-MPE-SER4M Linux driver 4.0 and newer v64-bit(.zip, 1.5 MB)
64-bit version 0.5
DS-MPE-SER4M/OPT Linux driver(.gz, 23.3 KB)
DS-MPE-SER4M/OPT Windows driver(.zip, 196.8 KB)
DS-MPE-SER4M/OPT Windows driver library(.zip, 18.9 KB)
DS-MPE-SER4M/OPT4 Boot Time Demos(.zip, 31.8 KB)
DS-MPE-SER4M/OPT4 Console Application Demos(.zip, 29.7 KB)
DS-MPE-SER4M/OPT4 Windows 7 Drivers(.zip, 438.9 KB)
EXAR_GUI_Utility(.zip, 323.5 KB)
Datasheet

DS-MPE-SER4M Datasheet(.pdf, 212.5 KB)
Technical Documents

XR17V354 UART Reference Manual(.pdf, 1.4 MB)
Cable Drawing

DS-MPE-SER4M Cable Drawing(.pdf, 99.9 KB)
Cable drawing for DS-MPE-SER4M
Support

DS-MPE-SER4M Driver Linux_4.0_and_newer-64-bit(.zip, 1.6 MB)
SER4M Driver Linux_4.0_and_newer-64-bit.tar.zip
FEATURES
4 high speed RS-232/422/485 serial ports
Maximum baud rate:
1Mbps RS-232 mode
10Mbps RS-422/485 modes
Protocols software or jumper selectable
256-byte TX/RX FIFO
SP336 multi-mode transceivers support all modes
+/-15KV ESD protection on all ports
Latching connectors for increased ruggedness
+3.3VDC input power
Support for Windows XP and Linux 2.6
Operating temperature -40ºC to +85ºC
PCIe MiniCard full size form factor (50.95 x 30mm)
ONLINE SUPPORT
See DS-MPE-SER4M Technical Resources
Request Product information
Request Technical Support
DOWNLOADS
DS-MPE-SER4M User Manual
(.pdf, 603.7 kb)
DS-MPE-SER4M/OPT4 Sofware User Manual
(.pdf, 1.4 MB)
DS-MPE-SER4M Datasheet
(.pdf, 212.5 kb)
RELATED PRODUCTS
This PCIe I/O module can be used with the following Diamond SBCs and carriers:
E104-MPE PCI/104-Express Quad PCIe MiniCard Carrier
Saturn Rugged Apollo Lake x7-E3950 SBC with Data Acquisition and PCIe/104 Expansion
Aries PC/104-Plus Rugged SBC with Intel E3845 CPU and On-Board Data Acquisition

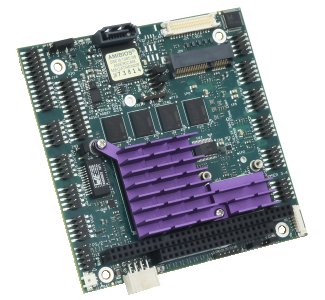

Helix PC/104 SBC with 1GHz Vortex86DX3 CPU and data acquisition
