Products   >   Ethernet Switches   >   Ethernet Switches   >   EPS-12002L
      EPS-12002L  EPS-12002L Compact 12+2 Port Managed Ethernet Switch

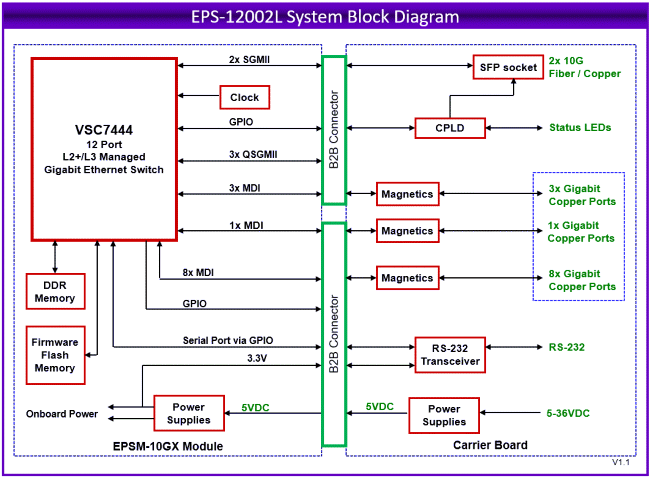

OverviewBlock DiagramOrdering
Information
Support

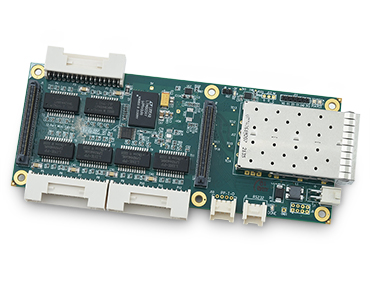

The EPS-12002L is a compact managed rugged Ethernet switch based on Diamond's EPSM-10GX Ethernet switch module. The switch consists of the EPSM-10GX module mounted on a carrier board that provides power, magnetics, and connectors, along with a heat sink or heat spreader. EPS-12002L provides 12 10/100/1000Mbps copper ports and 2 1/2.5/5/10Gbps SFP+ sockets for fiber or copper transceivers. EPS-12002L is ideal for vehicle and industrial applications requiring a small form factor with gigabit Ethernet switching and fiber connectivity support.

Two software packages are available, Layer 2+ switching and Layer 3 routing/switching. All software features are manageable via a GUI web interface accessible over any port, as well as with a command language accessed via a built-in RS-232 port.

EPS-12002L is designed specifically to meet the challenges of vehicle and other rugged environments, with its -40/+85°C operating temperature range, latching I/O connectors, and MIL-STD-202G shock/vibration resistance. A 5-36V input power supply provides compatibility with a range of industrial and vehicle power supplies.

Embedded Software

Two software packages are available: Layer 2+ switching and Layer 3 routing/switching. In addition, IEEE-1588 precision time protocol support is available with a minor modification to install a precision clock circuit on the board. All software features are manageable via a GUI web interface accessible over any port, as well as with a command language accessed via a built-in RS-232 port. Customer branding is available to put your logo / color scheme / part numbers on the GUI and serial interface.

The table below shows some of the more popular features available. For a complete list of features available in each software package, click here.

Layer 2+ software highlights include the following:
8K MAC addresses and 4K VLANs (IEEE 802.1Q)
8K IPv4 and IPv6 multicast group support
Jumbo frame support at all speeds
Flexible link aggregation support based on Layer-2 through Layer-4 information (IEEE 802.3ad)
Multicast and broadcast storm control, as well as flooding control
Rapid Spanning Tree protocol (RSTP) and MSTP
Multiple protocol support: IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, and IEEE 802.1X
8 priorities and 8 QoS queues per port with scheduling

Layer3 software additional highlights:
Hardware- and software-based IPv6 L3 static routing
RFC 2328 OSPFv2 dynamic routing
IEEE 1588 precision time protocol (PTP)
RADIUS accounting
Port and Queue policers

EPS-12002L: Ethernet Switches, ,

Cable Kit

Cable Kit for EPS-12000-CM: 3x Quad Gigabit Ethernet cables, Power cable, Serial cable


EPS-12002L Cable Kit

CK-EPS12000 includes the following cables:

No. Qty Cable Description Drawing
1 1 6981050 Serial Cable, 1x3 2mm to DB9M Show
2 1 6981507 Power Cable, IPD 2x2 to Leads, 20AV Show
3 3 6981508 Ethernet Cable, 4 Ports, JST 32 Pin Show

EPS-12002L: Ethernet Switches, ,

Get an online quote


EPS-12002L
Available Models:
EPS-12002-HSK
12 1Gbe Ports + 2 1/2.5/5/10Gbe SFP+ sockets, Layer 2 software, socket headers, heat sink
By Request
EPS-12002L-HSK
12 1Gbe Ports + 2 1/2.5/5/10Gbe SFP+ sockets, Layer 2 software, heat sink
Available
EPS-12002L-HSP
12 1Gbe Ports + 2 1/2.5/5/10Gbe SFP+ sockets, Layer 2 software, heat spreader
Available
EPS-12002L-HSK-L3
12 1Gbe Ports + 2 1/2.5/5/10Gbe SFP+ sockets, Layer 3 routing software, heat sink
By Request
EPS-12002L-HSP-L3
12 1Gbe Ports + 2 1/2.5/5/10Gbe SFP+ sockets, Layer 3 routing software, heat spreader
By Request
Please login or signup for an online quote request.



Cables and accessories
Available Models:
CK-EPS12000
Cable kit for EPS-12000-CM
6981050
Serial Cable, 1x3 2mm to DB9M
6981507
Power Cable, IPD 2x2 to Leads, 20AV
6981508
Ethernet Cable, 4 Ports, JST 32 Pin
Please login or signup for an online quote request.

Product Support for EPS-12002L

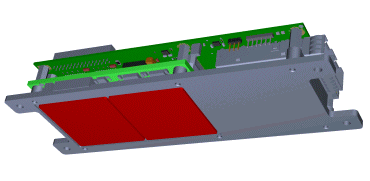

Mechanical Drawing

EPS-12002L 3D PDF(.pdf, 3.2 MB)
FEATURES
Rugged Ethernet switch for vehicle and other harsh environment applications
12 gigabit Ethernet ports for twisted pair connections

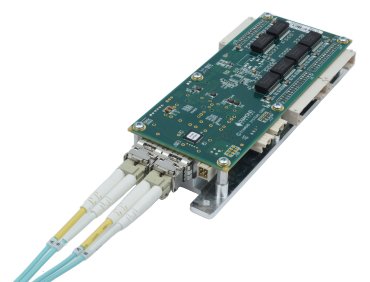

2 1/2.5/5/10G SFP+ sockets for fiber or copper transceivers
All ports feature non-blocking wire-speed performance
Layer 2+ switching and Layer 3 routing software available
IEEE 1588 PTP support available
Software customization and branding available
Rugged design with latching connectors and -40 to +85°C operating temperature
5.3 x 2.2” / 136 x 55mm
Heat sink and heat spreader thermal options
