Products   >   Processor Modules   >   Single Board Computers   >   Saturn
      SATURN  Rugged Apollo Lake x7-E3950 SBC with Data Acquisition and PCIe/104 Expansion   2 in 1    OneBank
UPGRADED!
Now featuring x7-E3950 processor for improved performance
Overview
Block Diagram
Mass storage
Cable Kit
Development kits
Rugged design
Integrated Data Acquisition
Software Support
I/O Expansion
What is PCIe/104 OneBank™?
Get an online quote
OverviewRugged
Design
Data
Acquisition
I/O ExpansionOrdering
Information
Support

SATURN combines a feature-rich Atom-class processor-based SBC with a professional-quality industrial analog and digital data acquisition subsystem and flexible I/O expansion in a single board designed for rugged applications.

  • Intel "Apollo Lake" x7-E3950 1.6GHz (burstable 2.0GHz) quad-core processor with 15-year lifecycle
  • 4GB non-ECC or 8GB ECC RAM soldered down
  • Integrated professional-quality analog and digital data acquisition subsystem with software support
  • Bottom side heat spreader with integrated thermal pad provides efficient cooling and convenient mounting
  • Full -40 to +85°C industrial operating temperature range
  • Thicker PCB and latching connectors increase resistance to shock and vibration
  • PCIe/104 OneBank expansion socket for industry-standard rugged I/O expansion
  • Minicard expansion socket for versatile low-cost I/O

Available models:

ModelRAMData Acquisition
SAT-E3950-4GA4GB non-ECCAnalog + digital I/O
SAT-E3950-4GD4GB non-ECCDigital I/O
SAT-E3950-8GEA8GB ECCAnalog + digital I/O
SAT-E3950-8GED8GB ECCDigital I/O

Block Diagram

Saturn: Processor Modules, Rugged, wide-temperature SBCs in PC/104, PC/104-<i>Plus</i>, EPIC, EBX, and other compact form-factors., PCIe/104

Mass storage

Saturn offers two options for mass storage:

  • An M.2 2242 size SATA socket is provided for onboard mass storage. Modules up to 1TB are available. This is the most common choice.
  • A standard 7-pin SATA connector is available for connecting a standard 2.5" or other form factor hard drive. This connector can be used when higher capacity storage is needed. Diamond offers accessory board ACC-HDDMOUNT which allows a 2.5" drive to be mounted on the PC/104 holes on Saturn.

Cable Kit

The Saturn cable kit includes all I/O cables needed for all I/O connectors on Saturn except the LCD data and backlight cables, which are customized for each individual application. Cables are normally sold as complete kits. Individual cables may be available in some cases or may be ordered with minimum order quantities; contact us for availability. Detailed drawings listing all components are provided to enable customers to build their own cables.


Saturn Cable Kit

CK-SAT-01 includes the following cables:

No. Qty Cable Description Drawing
1 1 6980512 Power input cable, discrete wires Show
2 1 6980524 External battery cable, discrete wires Show
3 1 6980601 Dual serial port cable, 2x DB9 male Show
4 1 6980602 Dual USB 2.0 cable, 2x USB 2.0 type A Show
5 2 6980603 Cable, FCI 2x5 2mm latching to USB 3.0 type A panel mount Show
6 2 6980604 Ethernet cable, FCI 2mm 2x6 latching to RJ-45 socket Show
7 2 6980605 HDMI Cable Show
8 1 6980608 Audio cable, 3x 3.5mm jacks Show
9 1 6989101 SATA Cable, 7-Pin Data, Straight to Right Angle, 500mm Show
10 1 6980517 Digital I/O cable, DB37F connector Show
11 1 6980518 Analog I/O cable, DB37F connector Show
12 2 6980609 FCI latching 2x5 2mm to IC 2x5 2mm, 12" Show

Development kits

Development kits are available to support quick project startup. Each kit includes the Saturn SBC, a cable kit, and a programmed 64GB flashdisk with a read-to-run installation of Windows 10 or Linux operating system, plus a backup USB memory device. Simply install the flashdisk, attach the cables, add your keyboard, mouse, and display, and connect power, and the board will boot into a fully functional OS.

Configuration files and instructions are provided to rebuild the OS with your application. The Linux kit includes all the tools needed to rebuild the OS. The Windows 10 kit includes a runtime license.

A software-only kit is available that consists of just the programmed flashdisk and backup USB memory device. This software kit is intended for customers who already have one or more Saturn SBCs. One software kit can be used on any number of Saturn boards. (Windows licensing requirements still apply.)

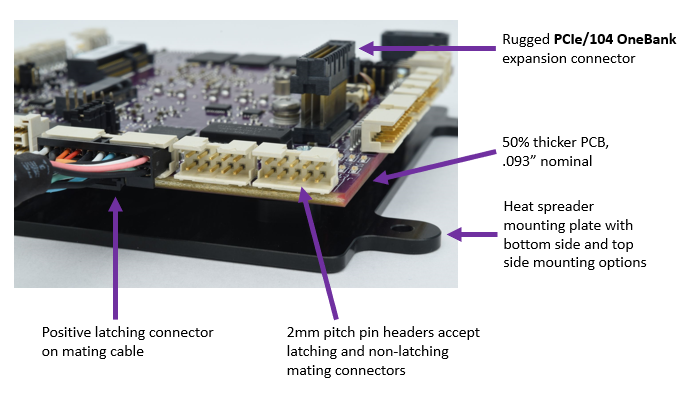

Saturn was designed from the ground up with a comprehensive set of features to meet the challenges of rugged environments and applications:

  • Memory is soldered down to avoid problems that can occur with commercial style SODIMM type memory modules
  • The 50% thicker PCB increases rigidity and improves reliability of fine pitch and high-ball-count BGA solder joints
  • All I/O connectors are latching for increased ruggedness
  • A bottom-side heat spreader provides more efficient cooling than a traditional heat sink. Processor and memory chips are both thermally connected to the heat spreader. In addition the exterior surface features recessed thermal pads for improved thermal connectivity to the system enclosure.
  • All components are rated and/or tested to ensure reliable -40 to +85°C operation

Saturn: Processor Modules, Rugged, wide-temperature SBCs in PC/104, PC/104-<i>Plus</i>, EPIC, EBX, and other compact form-factors., PCIe/104

Saturn is a member of Diamond's 2-in-1 series of SBCs with integrated data acquisition. For applications requiring precision analog I/O, a 2-in-1 SBC is an ideal choice because it reduces the number of boards in the system, resulting in a system that is smaller, lighter, lower cost, and easier to assemble and maintain. The features of the Saturn DAQ circuit surpass those found on most other embedded SBCs in both variety and quality, providing a comprehensive, professional quality subsystem backed with top of the line software support. "A" models include the full DAQ circuit with both analog and digital I/O features, while "D" models include only the digital I/O features.

Saturn's data acquisition circuit features autocalibration, which maintains best accuracy of the A/D and D/A circuits regardless of time and temperature swings. Using the supplied Universal Driver software library, the circuit can be quickly calibrated to within +/-2LSB accuracy at any time, relative to the on-board precision reference voltage circuit.

2in1

Saturn: Processor Modules, Rugged, wide-temperature SBCs in PC/104, PC/104-<i>Plus</i>, EPIC, EBX, and other compact form-factors., PCIe/104

The A/D circuit includes 16 single-ended / 8 differential analog input channels with programmable input ranges and a maximum aggregate sampling rate of 250KHz. A built-in programmable counter/timer supports accurate high-speed sampling with precise timing. The 2048-sample FIFO with programmable threshold ensures error-free sampling and enables you to tune the performance of the circuit to minimize interrupt processing overhead.

The D/A circuit consists of 4 16-bit D/A voltage outputs with independently programmable output ranges including 0-10V, +/-10V, 0-5V, and +/-5V. A 2048-sample waveform buffer is included to support arbitrary waveform generator functions on up to 4 channels simultaneously.

The digital I/O circuit consists of GPIO, counter/timers, and pulse-width modulators. The GPIO circuit provides 22 buffered digital I/O lines, consisting of one 8-bit port and 14 1-bit ports. Each port is individually programmable for input or output. The 1-bit direction controllable ports provide better matching of input and output quantities to each application. Jumper configuration enables selection of 5V/3.3V logic levels and pull-up or pull-down resistors on the digital I/O lines.

The 8 32-bit programmable counter/timers feature both up and down counting with clocking selectable from an external digital signal or the on-board 50MHz clock. Counters can be used for generating programmable output frequencies with programmable output pulse widths, counting external events, generating interrupts to the host processor at a programmable rate, and driving A/D sampling at precise frequencies with perfect timing between samples.

The circuit further includes 4 24-bit programmable pulse width modulators also driven by the on-board 50MHz clock. These feature programmable rate, duty cycle, and polarity, with real-time rate and duty cycle update capability.

Back to top
Software Support

Diamond Systems' Universal Driver software provides unmatched power and flexibility for embedded data acquisition programming with PC/104 and small form factor I/O boards. It provides flexible C-language programming support for Windows and Linux to control all data acquisition features on Saturn, as well as Diamond's MiniCard data acquisition modules that can be used with Saturn.

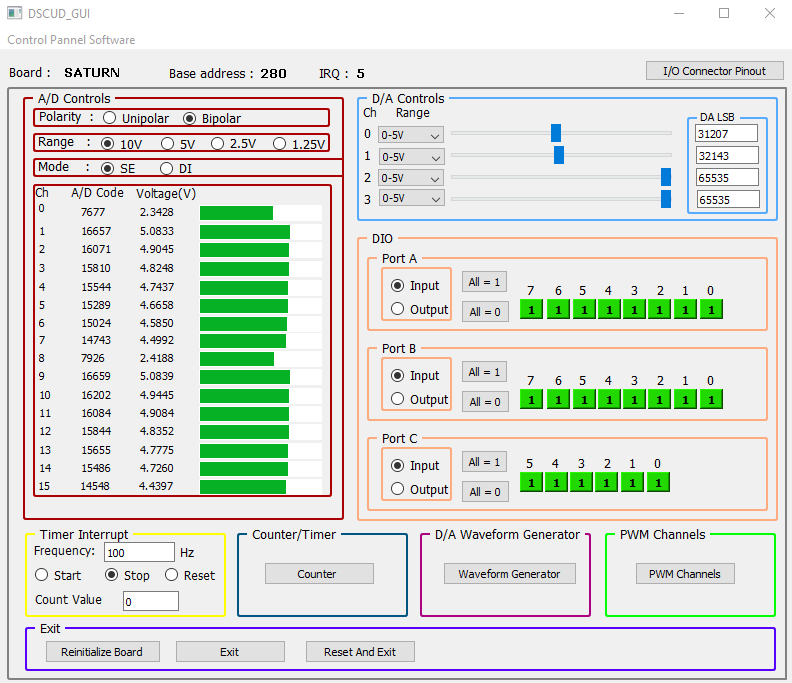

A powerful and convenient graphical control panel provides instant, easy access to all data acquisition features on the board. It can be used for proof of concept, testing, and even system debugging.

Visit our "Universal Driver software" page to learn more.

Saturn: Processor Modules, Rugged, wide-temperature SBCs in PC/104, PC/104-<i>Plus</i>, EPIC, EBX, and other compact form-factors., PCIe/104

Saturn provides two sockets for the installation of I/O expansion modules:

  • A PCIe/104 OneBank I/O expansion socket provides 4 PCIe x1 lanes and 2 USB 2.0 ports to interface with hundreds of PCIe/104 I/O modules from vendors around the world. Only top side expansion is supported, since the bottom side of Saturn is covered by the heat spreader.
  • A full-size PCIe MiniCard socket supports both PCIe and USB minicards. Saturn supports Diamond's complete line of PCIe MiniCards.

Back to top
What is PCIe/104 OneBank™?

OneBank's is the name given to the PCIe/104 standard that utilizes a more compact, cost effective connector to support rugged, high-speed I/O expansion. The original PCIe/104 connector features 3 "banks" of contacts. The 2nd and 3rd banks contain PCIe x8 / x16 signals that are not supported on Atom processors nor used by most I/O expansion modules. By eliminating these signals, a smaller and more cost effective connector can be used to provide compatibility with any PCIe/104 I/O module that uses a PCIe x1 or USB host connection, while freeing up precious PCB space for additional I/O or connectors. OneBank is an official expansion connector supported by the PC/104 Consortium (of which Diamond Systems was a founding member). Click here to learn more about OneBank. Click here to learn more about PCIe/104.

Get an online quote


Saturn
Available Models:
SAT-E3950-4GA
Saturn SBC, E3950 CPU, 4GB RAM, With Data Acquisition
Stocked
Buy Now
SAT-E3950-4GD
Saturn SBC, E3950 CPU, 4GB RAM, With DIO
Stocked
SAT-E3950-8GEA
Saturn SBC, E3950 CPU, 8GB ECC RAM, With Data Acquisition
Available
SAT-E3950-8GED
Saturn SBC, E3950 CPU, 8GB ECC RAM, With DIO
Available
SDK-SAT-E3940A-LNX64
Software Development Kit for Saturn SBC, Linux 64-bit OS
Available
SDK-SAT-E3940A-WE1064
Software Development Kit for Saturn SBC, Windows 10 64-bit OS
Available
DK-SAT-E3950A-LNX64
Development Kit, Saturn SBC, E3950 CPU, With DAQ, Linux 64-Bit BSP
Available
DK-SAT-E3950A-WE1064
Development Kit, Saturn SBC, E3950 CPU, With DAQ, Windows 10 64-Bit BSP
Available
SAT-E3940-4GA
Saturn SBC, E3940 CPU, 4GB RAM, With Data Acquisition
Min Order Quantity
SAT-E3940-4GD
Saturn SBC, E3940 CPU, 4GB RAM, With Digital I/O
Min Order Quantity
SAT-E3940-8GEA
Saturn SBC, E3940 CPU, 8GB ECC RAM, With Data Acquisition
Min Order Quantity
SAT-E3940-8GED
Saturn SBC, E3940 CPU, 8GB ECC RAM, With Digital I/O
Min Order Quantity
DK-SAT-E3940A-LNX64
Development Kit, Saturn SBC With DAQ, Linux 64-Bit BSP
Available
DK-SAT-E3940A-WE1064
Development Kit, Saturn SBC With DAQ, Windows 10 64-Bit BSP
Available
Please login or signup for an online quote request.



Cables and accessories
Available Models:
CK-SAT-01
CK-SAT-01 cable kit
Please login or signup for an online quote request.

Product Support for Saturn

User Manual

Saturn SBC User Manual(.pdf, 1.7 MB)
Visit Universal Driver software page
DSCUD 8.4.0 Driver
DSCUD 8.4.0 Demos-SATURN
Drivers

Saturn_Audio_Driver_Realtek_Win10_64bit(.zip, 250.7 MB)
0009-64bit_Win7_Win8_Win81_Win10_R282
Saturn_Chipset_Driver_W10_64bit(.zip, 5.0 MB)
chipset-10.1.17969.8134
Saturn_Graphics_Driver_W10_64bit(.zip, 324.1 MB)
Graphic Driver : 26.20.100.8281
Saturn_Power_Management_W10_64bit(.zip, 427.3 KB)
ppm-apl-preview-v200.20160222
Saturn_Serial_IO_Driver_W10_64bit(.zip, 347.8 KB)
Serial_IO_5.123.1.1021
Saturn_TXE_Win10_64bit(.zip, 72.9 MB)
Intel Trusted Execution Engine driver
Saturn_UART_Driver_W10_64bit(.zip, 31.0 KB)
UART Driver
Technical Documents

Shock & Vibration Test Summary(.xlsx, 53.3 KB)
Summary of all DSC products undergoing shock and vibration testing
Shock and Vibration test report SBCs Switches(.pdf, 4.1 MB)
What is OneBank(.pdf, 576.6 KB)
OneBank expansion bus overview
FEATURES
SBC features:
Designed for rugged applications with intensive I/O requirements
Intel "Apollo Lake" x7-E3950 1.6GHz quad-core processor
4GB non-ECC / 8GB ECC RAM soldered down
2 gigabit Ethernet ports
2 HDMI ports
Dual-channel 24-bit LVDS with backlight power
2 USB 3.0 ports with USB 2.0 downward compatibility
2 dedicated USB 2.0 ports
2 RS-232/422/485 + 1 RS-232 serial ports
HDA audio (ALC662)
SATA 7-pin connector
TPM 2.0 chip on board
On-board RTC backup battery with external battery connector
PCIe/104 OneBank I/O expansion connector with 4 PCIe x1 and 2 USB 2.0 connections
M.2 2242 SATA socket supports up to 1TB flashdisk
Bottom-mounted heat spreader for efficient cooling and convenient mounting
5VDC input voltage
4.5 x 4.0" / 114 x 102mm W x H
-40/+85ºC operation fanless
Windows 10 64-bit and Ubuntu Linux 64-bit OS support
Data acquisition subsystem features:
16 single-ended / 8 differential analog inputs
16-bit A/D resolution
Unipolar and bipolar analog inputs
Single-ended and differential input configuration
Programmable gain 1/2/4/8 providing input ranges +/-10V / 0-10V down to +/- 1.25V / 0-1.25V
250KHz maximum A/D sample rate, single-channel and multi-channel mode
Internal clock / external clock / software A/D triggering
Single-channel and multi-channel-scan A/D operation
Interrupts with FIFO to support reliable high-speed sampling
4 16-bit single-ended analog outputs
+/-10V, +/-5V, 0-10V and 0-5V output ranges
Autocalibration with Universal Driver software maintains accuracy over time and temperature
24 digital I/O, 3.3V logic / 5V tolerant inputs
8 32-bit counter/timers for A/D timing and general counting purposes
8 24-bit PWM outputs
