Products   >   Processor Modules   >   Single Board Computers   >   GEMINI
      GEMINI  Rugged 11th Gen Core i7 PCIe/104 SBC and COM Express Type 6 Carrier Board   PCIe104
GEMINI: Processor Modules, Rugged, wide-temperature SBCs in PC/104, PC/104-<i>Plus</i>, EPIC, EBX, and other compact form-factors., PCI/104-Express

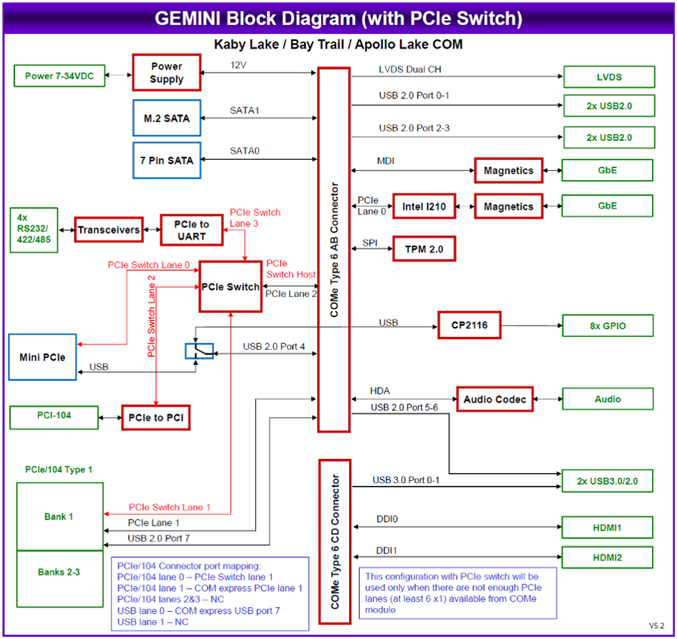

OverviewBlock
Diagram
SpecificationsOrdering
Information
Support

GEMINI is a COM Express Compact type 6 carrier board and SBC with PCI/104-Express and minicard I/O expansion. Feature-rich GEMINI offers the highest performance in a compact 4.0 x 4.0" / 102 x 102mm size, with its combination of COM Express CPU module and full support for PCIe/104 type 1 connectivity (PCI-104 up to 4 modules, PCIe-104 x1 up to 4 modules, and PCIe/104 x16 if supported by the installed COM). Gemini is designed to support any COM Express Compact (95x95mm) type 6 module, from Apollo Lake to Core i7 to Xeon and Ryzen.

Gemini is available as a complete SBC featuring the 11th Generation Intel Core i7 1185G7E / 1185GRE "Tiger Lake" processors with up to 64GB RAM and -40 to +85°C operation.

GEMINI as a carrier board provides flexibility in choosing your preferred COM from among dozens of manufacturers around the world. The Gemini carrier offers early access to the latest generation of x86 processors as well as longer product lifecycles by virtue of processor independence.

The COM Express module mounts on the bottom side of the board, with a heat spreader below it serving as a mounting platform and thermal solution. The PCI/104-Express, minicard, and M.2 expansion sockets are on the top side.

The 4.0x4.0 inch (102x102mm) board size maximizes PCB coastline for I/O connectors in the smallest feasible size for the feature set. The combination of latching I/O connectors and a thicker PCB offers superior resistance to shock and vibration.

Gemini offers several options for mass storage. An M.2 2242 socket supports SSD up to 512GB using SLC, MLC, and TLC technology. A SATA connector can be used to connect to an external SSD.

Windows 10 64-bit and Ubuntu Linux 64-bit OS support are available.

GEMINI: Processor Modules, Rugged, wide-temperature SBCs in PC/104, PC/104-<i>Plus</i>, EPIC, EBX, and other compact form-factors., PCI/104-Express

I/O Expansion

Gemini offers a wide range of I/O expansion options:

  • A PCIe/104 Type 1 socket supports OneBank PCIe x1 I/O modules as well as full PCIe x16 high performance graphics and expansion modules (with Xeon module installed)

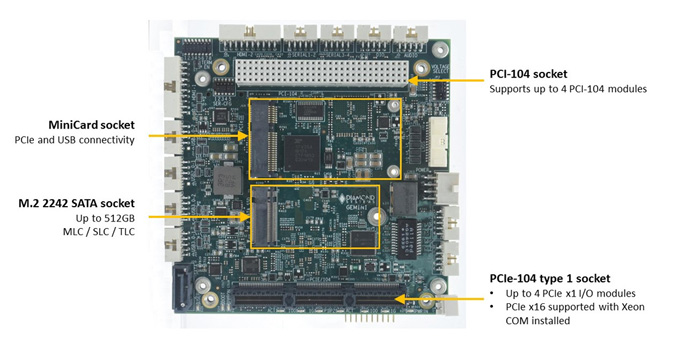

  • A PCI-104 socket supports up to 4 PCI-104 I/O modules
  • A full-size minicard socket supports PCIe and USB minicards
  • An M.2 socket supports SATA flashdisk up to 512GB SLC, MLC, and TLC

GEMINI: Processor Modules, Rugged, wide-temperature SBCs in PC/104, PC/104-<i>Plus</i>, EPIC, EBX, and other compact form-factors., PCI/104-Express
Gemini with PCIe/104 octal serial port module installed; 22mm board stacking height allows sufficient room for installed minicard + cabling

Cable kit


GEMINI Cable Kit

CK-GEM-01 includes the following cables:

No. Qty Cable Description Drawing
1 1 6980512 Power input cable, discrete wires Show
2 1 6980524 External battery cable, discrete wires Show
3 2 6980601 Dual serial port cable, 2x DB9 male Show
4 2 6980602 Dual USB 2.0 cable, 2x USB 2.0 type A Show
5 2 6980603 Dual USB 3.0 type A, latching Show
6 2 6980604 Ethernet cable, RJ-45 socket Show
7 2 6980605 HDMI Cable Show
8 1 6980608 Audio cable, 3x 3.5mm jacks Show
9 1 6980609 FCI latching 2x5 2mm to IC 2x5 2mm, 12" Show
10 1 6989101 SATA Cable, 7-Pin Data, Straight to Right Angle, 500mm Show
11 1 C-20MM-18 2x10 2mm IDC ribbon, 18" -

GEMINI: Processor Modules, Rugged, wide-temperature SBCs in PC/104, PC/104-<i>Plus</i>, EPIC, EBX, and other compact form-factors., PCI/104-Express

SPECIFICATIONS
Processor Intel® Core™ i7 11th Generation Processor 1185G7E "Tiger Lake"
Chipset Integrated onto processor package
Memory 32-64GB DDR4 SODIMM
Graphics 3 independent displays:
  2x HDMI, max resolution 4096 x 2304 @ 60Hz, 24bpp
  1x LVDS, max resolution 1920 x 1200 @ 60Hz, 24bpp
Ethernet 2 Gigabit ports: 1 10/100/1000Mbps from COM module and 1 10/100/1000Mbps via I210 Ethernet controller on carrier
USB 4x USB 2.0 and 2x USB 3.0, optional USB support via PCIe Minicard
Serial 4x multiprotocol RS-232/422/485 through SP336
Audio HDA audio to analog audio converter
Digital I/O 8 programmable direction digital I/O, 3.3V logic compatible
Mass storage Standard SATA, m.2 2242 M-key socket
Security TPM module Infineon SLB 9670XQ2.0 on carrier (installed COM may also have TPM)
Expansion PC/104-Express (22mm stacking height): 4 PCIe x1 ports, 1x PCIe x16 / x8 / x4 (depending on installed COM, 1185G7E supports PCIe x4), 1x USB2.0, and 4-slot PCI support
1 PCIe full-size minicard with PCIe x1 and USB 2.0 connectivity
Form factor 101.6mm x 101.6 mm / 4.000" x 4.000"
Weight 281g / 9.9oz (complete assembly with WL COM and heat spreader)
Cooling Conduction cooling heat spreader on bottom
Input voltage 16V-34VDC
Power consumption Carrier board alone: 2.4W
Carrier board + TL COM + 32GB RAM: TBD
Vin = 28VDC
Operating Temp -40° to +85°C (carrier board with TL 1185G7E COM; final system capability depends on the installed COM)

Get an online quote


GEMINI
Available Models:
GEM-BB01
Gemini carrier board, 8 x1 + 1 x16 PCIe configuration, 22mm PCI/104-Express
Available
GEM-BB02
Gemini carrier board, 5 x1 + 1:4 PCIe switch + 1 x16 PCIe configuration, 22mm PCI/104-Express
Available
GEM-1185G7E-32G
Gemini SBC, 11th Gen Core i7 1185G7E, 32GB RAM, Extended Temp
Coming soon
GEM-1185G7E-64G
Gemini SBC, 11th Gen Core i7 1185G7E, 64GB, Extended Temp
Coming soon
GEM-1185GRE-32G
Gemini SBC, 11th Gen Core i7 1185GRE, 32GB RAM Soldered, -40/+85C
Available
DK-GEM-1185G7E-LNX64
Development Kit, Gemini SBC, 1185G7E CPU, Linux 64-Bit OS
Coming soon
DK-GEM-1185G7E-WE1064
Development Kit, Gemini SBC, 1185G7E CPU, Windows 10 64-Bit OS
Coming soon
DK-GEM-1185GRE-LNX64
Development Kit, Gemini SBC, 1185GRE CPU, Linux 64-Bit OS
Coming soon
DK-GEM-1185GRE-WE1064
Development Kit, Gemini SBC, 1185GRE CPU, Windows 10 64-Bit OS
Coming soon
SDK-GEM-1185G7E-LNX64
Software Dev Kit, Gemini SBC, 1185G7E CPU, Linux 64-Bit OS
Coming soon
SDK-GEM-1185G7E-WE1064
Software Dev Kit, Gemini SBC, 1185G7E CPU, Windows 10 64-Bit OS
Coming soon
SDK-GEM-1185GRE-LNX64
Software Dev Kit, Gemini SBC, 1185GRE Processor, Linux 64-Bit OS
Coming soon
SDK-GEM-1185GRE-WE1064
Software Dev Kit, Gemini SBC, 1185GRE Processor, Windows 10 64-Bit OS
Coming soon
Please login or signup for an online quote request.



Cables and accessories
Available Models:
CK-GEM-01
CK-GEM-01 cable kit
6980512
Cable Power, 2x4 0.1" Latching to Discrete Wires, 15"L
6980524
Cable, External Battery, Molex Spox 2 Pos to Tinned Leads, 12ā€¯L
6980601
Cable, Dual Serial Port, FCI 98414 to 2x DB9M, 12"L
6980602
Cable, Dual USB 2.0, FCI 98414 to Dual Type A Panel Mount Receptacle, 12ā€¯L
6980603
Cable, USB 3.0, Latching 2x5 2mm to Type A Socket Panel Mount, 12"L
6980604
Cable, Ethernet, Latching 2x5 2mm to RJ-45 Socket Panel Moun, 12"L
6980605
Cable, HDMI, Latching 2x10 2mm to HDMI Panel Moun 12"L
6980608
Cable, Audio, Latching 2x10 2mm to 3x 3.5mm Stereo Jacks, 12"L
6980609
Cable, FCI Latching 2x5 2mm to IDC 2x5 2mm, 12"L
6989101
SATA Cable, 7-Pin Data, Straight to Right Angle, 500mm
C-20MM-18
2x10 2mm IDC ribbon, 18"
Please login or signup for an online quote request.

Product Support for GEMINI

User Manual

Gemini user manual(External)
Gemini_UserManual_pdf(.pdf, 4.4 MB)
GEMINI_Hardware_User Manual
Drivers

Gemini_Audio_Driver_Win10_64bit(.zip, 250.7 MB)
Gemini_W10_Audio_Driver
Gemini_Chipset_Driver_Win10_64bit(.zip, 5.4 MB)
Chipset_Driver_Intel_Win10_64bit_10.1.17861.8101
Gemini_DIO_LED_SerialModeControl_SW_Win10_64bit(.zip, 360.4 KB)
Serial Port Mode Selection, LED and DIO control
Gemini_Graphic_Driver_Win10_64bit(.zip, 329.7 MB)
Graphic_Driver_Intel_HD_Graphic_Win10_64bit
Gemini_Intel_Smart Sound Technology_Win10_64bit(.zip, 308.1 MB)
Intel_Smart Sound Technology_Win10_64bit_pr4_release_version10.23.00.2214
Gemini_ME_Driver_Win10_64bit(.zip, 666.7 MB)
Intel_Management_Engine_Corporate_Win10_64bit_12.0.30.1406
Gemini_Network_Driver_Win10_64bit(.zip, 334.4 KB)
Network_Driver_Intel_I219_Win10_64bit_12.18.8.7w
Gemini_Serial_Driver_Win10_64bit(.zip, 319.1 KB)
xr17_win10_v5.5.0.0
Technical Documents

What is OneBank(.pdf, 576.6 KB)
OneBank expansion bus overview
Mechanical Drawing

Gemini Rev A 3D Model(.zip, 29.3 MB)
FEATURES
Intel "Tiger Lake" 11th Gen Core i7 processor i7-1185G7E / i7-1185GRE
RAM capacity:
i7-1185G7E: 32-64GB SODIMM
i7-1185GRE: 32GB soldered on COM
2x HDMI display support
Dual-channel 24-bit LVDS port with 3.3V / 5V power option
2x 10/100/1000Mbps Ethernet ports; 1 from COM module, 1 from I210 Ethernet controller via dedicated PCIe lane
4x USB 2.0, 2x USB 3.0
HDA audio
8 programmable direction digital I/O, 3.3V logic compatible
PCI/104-Express expansion socket (PCI-104 + PCIe/104 Type 1)
PCI-104 socket supports up to 4 attached PCI-104 modules
PCIe/104 socket supports up to 4x PCIe x1 and 1x PCIE x4 / x8 / x16 depending on installed COM
1 PCIe minicard socket with USB support
1 M.2 2242 SATA socket
1 SATA connector
TPM 2.0 via SPI interface
-40°C to +85°C operating temperature
ONLINE SUPPORT
See GEMINI Technical Resources
Request Product information
Request Technical Support
