Products   >   Nvidia Solutions   >   NVIDIA Solutions   >   STEVIE
      STEVIE  Carrier and Dev Kit for NVIDIA Jetson AGX Xavier   nvidia
OverviewCable KitSystem
Solutions
Development
Kit
Ordering
Information
Support

STEVIE is a compact, low-cost, feature-packed carrier board solution for the NVIDIA Jetson AGX Xavier computer module. STEVIE measures 92 x 106mm (3.62 x 4.17"), just slightly larger than the AGX Xavier module (87 x 100mm). This small outline enables Stevie to provide the maximum amount of I/O and support full-size 2280 M.2 modules in the smallest possible size.

The most popular I/O is located along the front edge of the board using commercial style panel I/O connectors. This facilitates installation in an enclosure with fewer internal cables, helping to further reduce overall system cost and size.

PCIe Minicard and M.2 sockets enable the installation of flashdisk and I/O expansion module to customize Stevie to your particular application requirements.

STEVIE is available in three models. STV-BB01 is the full feature model. STV-BB02 is the same as BB02 but has just one Ethernet port. STV-BB03 is a cost reduced model with fewer I/O features and a lower height single Ethernet jack.

STEVIE is ideal for NVIDIA Jetson Xavier applications in typical commercial / industrial environments requiring low cost and compact size. For mobile and outdoor applications requiring a higher degree of ruggedness or more advanced I/O, see our ELTON carrier with PCIe/104 I/O expansion.

Available Models

The table below lists the I/O features of the available Stevie configurations. In all respects not listed, all models are identical.

Model

STV-BB01

STV-BB02

STV-BB03

Description

Full featured model

Single Ethernet model with all other features

Cost reduced model

Ethernet

2 Gigabit Ethernet using dual stacked RJ-45 jack

1 Gigabit Ethernet using dual stacked RJ-45 jack; one port inoperative

1 Gigabit Ethernet using single RJ-45 jack

Serial ports

4 RS-232/422/485

4 RS-232/422/485

2 RS-232/422/485

Data Acquisition

Microcontroller with 6 ADC, 2 DAC, 13 GPIO

Microcontroller with 6 ADC, 2 DAC, 13 GPIO

I2C GPIO expander with 16 GPIO lines

USB

2x USB 3.1, 2x USB 2.0

2x USB 3.1, 2x USB 2.0

2x USB 3.1, 2x USB 2.0

HDMI

2

2

2

CAN

2

2

2

Audio

Yes

Yes

Yes

M.2 socket

NVMe x4 2280

NVMe x4 2280

NVMe x4 2280

Mini PCIe socket

1 with PCIe and USB

1 with PCIe and USB

1 with PCIe and USB

Micro SD

1 Micro SD + UFS

1 Micro SD + UFS

1 Micro SD + UFS

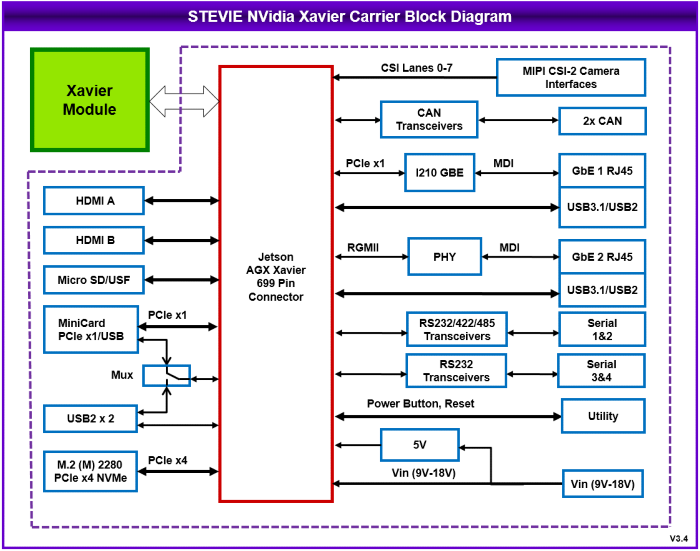

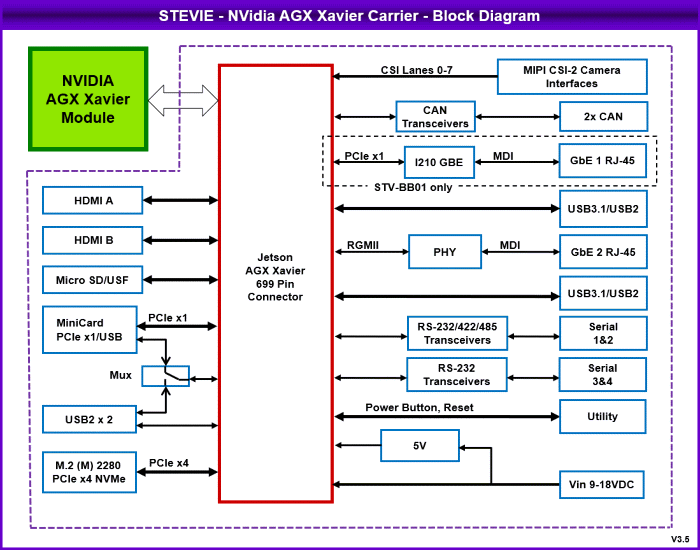

Stevie Block Diagram

STEVIE: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson AGX Xavier

Data Acquisition

A built-in data acquisition circuit provides 12-bit A/D up to 1MSPS, 12-bit D/A, and 3.3V GPIO. Diamond's free C-language programming library simplifies application development, while a GUI control panel offers convenient control and monitoring of real-world processes as well as ready-to-run data logging capability.

STEVIE: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson AGX Xavier

Cable kit CK-STV-01 contains all cables needed for the I/O pin headers and power connector on Stevie. Generic commercial-style cables (Ethernet, USB, HDMI) are not included.


STEVIE Cable Kit

CK-STV-01 includes the following cables:

No. Qty Cable Description Drawing
1 1 6980524 External battery cable, discrete wires Show
2 2 6980601 Dual serial port cable, 2x DB9 male Show
3 1 6980602 Dual USB 2.0 cable, 2x USB 2.0 type A Show
4 1 6980605 HDMI Cable Show
5 1 6980606 DAQ Cable Show
6 1 6980608 Audio cable, 3x 3.5mm jacks Show
7 2 6981182 CANbus 2.0 cable, JST 1x4 to DB9M Show
8 1 6981507 Power Cable, IPD 2x2 to Leads, 20AV Show

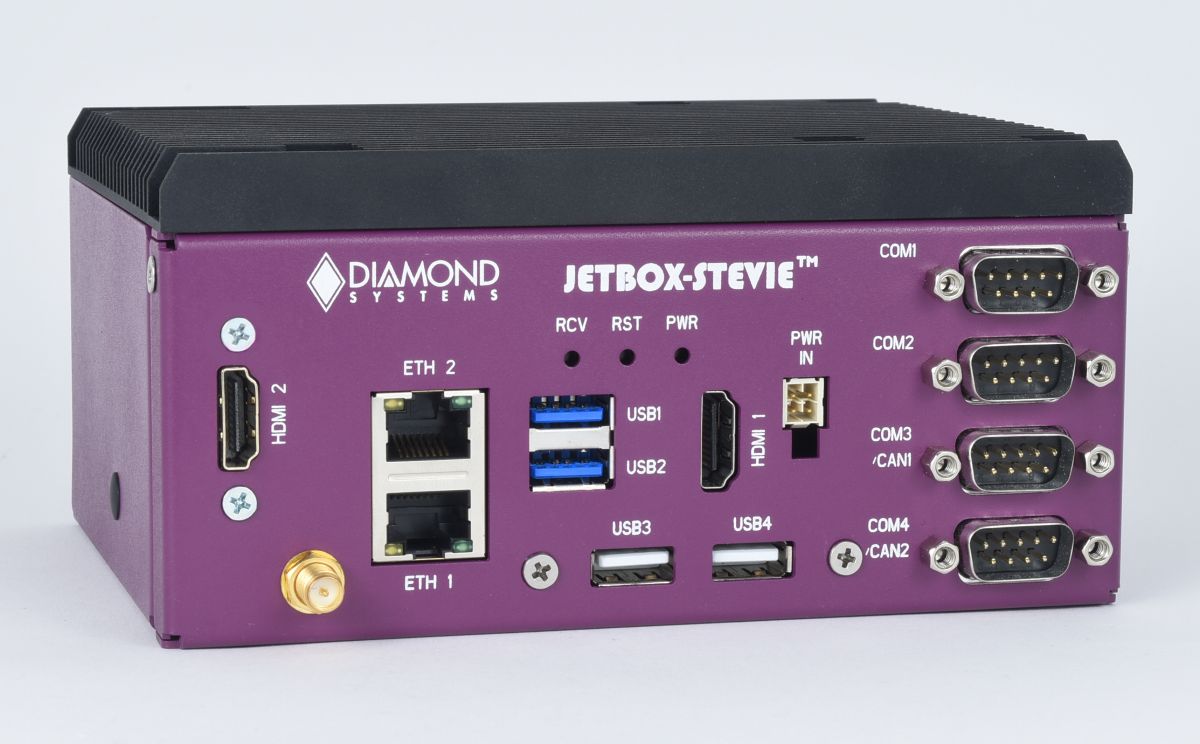

Stevie is available as a complete system, with the AGX Xavier 32GB module installed and preprogrammed with Diamond's customized Linux OS for Jetson, all assembled into a sturdy steel and aluminum enclosure. The enclosure provides access to all the front edge I/O connectors plus 4 additional DB9 connectors (serial ports and/or CAN), the second HDMI port, 2 USB 2.0 ports, and up to two SMA type antenna connectors for an installed M.2 or Minicard module. To learn more about these systems click here.

The Stevie Development Kit NK-STV-0030 is a special kit created for the Nvidia Jetson developer community that provides a complete platform for AGX Xavier application development. The kit consists of a Stevie carrier board with AGX Xavier 32GB module mounted and the latest Jetpak Linux OS installed. A heat sink with fan provides safe cooling for high power conditions. The complete system is mounted on a convenient mounting plate that can be used on a benchtop or affixed to an enclosure surface. A cable kit and 12V AC adapter are also included. the Stevie dev kit is plug and play - simply take it out of the box, attach keyboard/mouse/display, power up, and you're ready to go.

STEVIE: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson AGX Xavier

Get an online quote


STEVIE
Available Models:
STV-BB01
STEVIE carrier board for AGX Xavier, full feature model
Available
STV-BB02
STEVIE carrier board for AGX Xavier, single Ethernet port
Min Order Quantity
STV-BB03
Stevie Carrier for Nvidia Jetson AGX Xavier, Single Ethernet, no DAQ
Available
STV-AGX32-01
Stevie BB01 carrier with AGX Xavier 32GB module installed and programmed
Available
STV-AGX32-02
Stevie BB02 carrier with AGX Xavier 32GB module installed and programmed
Min Order Quantity
STV-AGX32-03
Stevie BB03 carrier with AGX Xavier 32GB module installed and programmed
Available
NDK-STV-0030
Stevie AGX Xavier Development Kit: STV-BB03 with AGX Xavier 32GB module, OS installed, Fan sink, Mounting plate
Available
ACC-HSSTV-01
Heat Sink With Fan for AGX Modules, 87x100mm, 5V 4-Pin Fan Connector
Please login or signup for an online quote request.



Cables and accessories
Available Models:
CK-STV-01
CK-STV-01 cable kit
Please login or signup for an online quote request.

Product Support for STEVIE

User Manual

STEVIE carrier user manual(.pdf, 1.9 MB)
Technical Documents

Jetson AGX Xavier Thermal Design Guide(.pdf, 1.5 MB)
Mechanical Drawing

ACC-HSSTV-01 heat sink drawing(.pdf, 524.2 KB)
(Fan not shown in drawing but included in product)
Stevie 3D Model(.zip, 10.8 MB)
Board Support Package

Stevie BSP(.gz, 2.2 GB)
Ver 3.0
Stevie BSP MD5SUM(.txt, 65.0 bytes)
Checksum for package data verification
Stevie BSP release documentation(.txt, 2.1 KB)
Press Release

STEVIE™ Carrier for NVIDIA Jetson AGX Xavier(, 0.0 bytes)
FEATURES
On-board features:
2x USB 3.1
2x USB 2.0
1-2 Gigabit Ethernet
2x HDMI
2-4 RS-232/422/485
2x CAN
Audio
6 12-bit ADC + 2 12-bit DAC + 13 GPIO 3.3V or 16 GPIO
Socketed features:
Camera module connector with 4x4 CSI lanes supporting up to 8x 2-lane CSI cameras
UFS flash socket + Micro SD
M.2 PCIe x4 2280 socket
mPCIe socket with PCIe and USB
Input voltage 9-20VDC
Size: 3.62" x 4.17" / 92mm x 106mm
Operating temperature: -40 to +85C
ONLINE SUPPORT
See STEVIE Technical Resources
Request Product information
Request Technical Support

e-con Cameras for Stevie



Diamond Systems has partnered with e-con Systems to provide high-quality GMSL camera solutions for our Stevie carrier. Visit our e-con camera page to learn more.
