      ELTON  Rugged Carrier for NVIDIA® Jetson™ AGX Xavier™ Module   nvidia    PCIe104
ELTON: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson AGX Xavier
OverviewRugged
Design
Ordering
Information
Support

Ideal Platform for compute-intensive rugged embedded applications

With its NVIDIA Xavier computing power, rugged design, and PCIe/104 expansion capability, Elton offers the ideal platform for implementing high performance computing and AI applications in mobile and harsh environments.

Elton utilizes the NVIDIA Jetson AGX Xavier embedded computer module to deliver unmatched performance for AI, machine learning, image processing, and other compute-intensive tasks. The Xavier module delivers up to 30 TeraOps in performance (3 x 1013 operations per second) at a maximum power dissipation of 30 watts. Xavier also offers scalable performance for applications requiring lower overall power consumption of 10 or 15 watts. The module runs at 32 TOPs on a 512-core Volta GPU with Tensor Cores and accelerators, enabling high-performance AI-powered autonomous machines like never before. At 87 x 100mm (3.4 x 3.9") it is slightly bigger than the other Jetson modules.

Elton provides numerous sockets for I/O expansion. An industry-standard camera module socket supports the attachmentof up to 8 CSI cameras (up to 4 cameras with 4K resolution). An M.2 socket supports the use of PCIe x4 NVMe flash storage up to 256GB. An LTE module socket supports the use of NimbeLink SkyWire cellular modems, featuring a broad range of solutions with worldwide compatibility.

Standard PC-style I/O on Elton includes 2 USB 3.0 ports, 2 USB 3.1 ports, HD audio, HDMI and LVDS display, and4 RS-232/422/485 ports with software configurability. All I/O is provided on pin headers that are compatible with both common non-latching and rugged latching mating cables, making Elton ideal for applications in environments subject to high shock and vibration.

Unique and Rugged

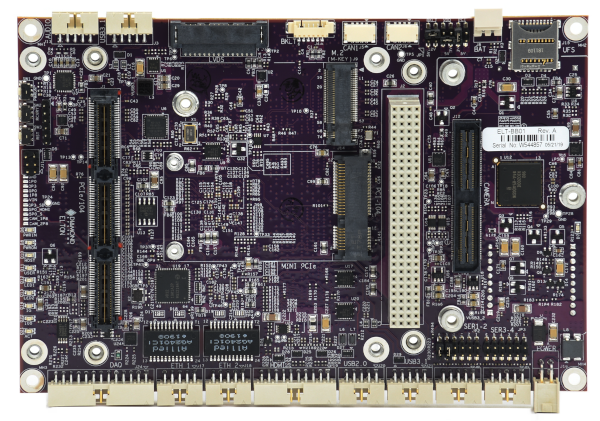

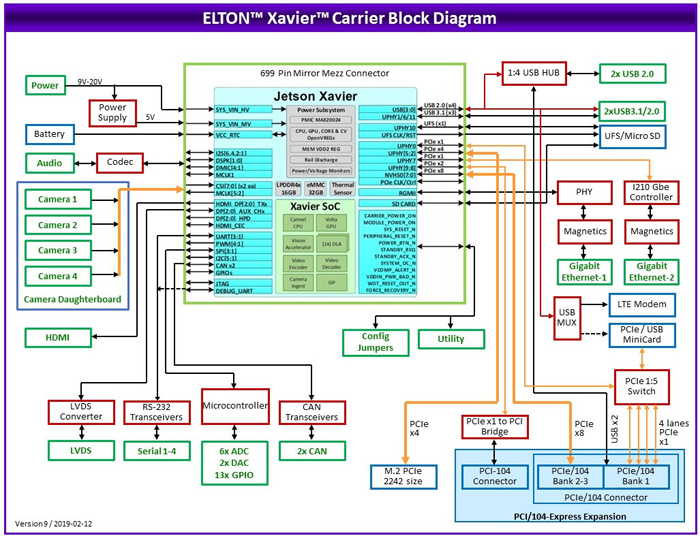

Elton Block Diagram

ELTON: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson AGX Xavier

Jetson Xaviar Block Diagram

ELTON: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson AGX Xavier

NVIDIA Meets PC/104

Unique among NVIDIA computing module carriers, Elton employs a PCI/104-Express expansion socket. The socket provides support for PCI-104, PCIe/104 type 2 (x8 lane), and PCIe/104 OneBank expansion modules (4 x1 lanes), enabling rapid creation of truly rugged, custom-configured, high performance, PCIe-based solutions using off-the-shelf I/O modules from a large number of manufacturers worldwide. Typical PCIe/104 I/O expansion includes 1G/10G Ethernet, video capture, and high resolution video display. A wide variety of industrial I/O modules, including analog, digital, serial, motion control, and other types is also available.

ELTON: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson AGX Xavier

Data Acquisition

A built-in data acquisition circuit provides 12-bit A/D up to 1MSPS, 12-bit D/A, and 3.3V GPIO. Diamond’s free C-language programming library simplifies application development, while a GUI control panel offers convenient control and monitoring of real-world processes as well as ready-to-run data logging capability.

ELTON: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson AGX Xavier

Cable Kit

Cable kit for Elton Jetson Xavier carrier board, Latching board connectors


ELTON Cable Kit

CK-ELTON-01 includes the following cables:

No. Qty Cable Description Drawing
1 1 6981507 Power Cable, IPD 2x2 to Leads, 20AV Show
2 1 6980524 External battery cable, discrete wires Show
3 1 6980601 Dual serial port cable, 2x DB9 male Show
4 1 6980602 Dual USB 2.0 cable, 2x USB 2.0 type A Show
5 1 6980603 Dual USB 3.0 type A, latching Show
6 1 6980604 Ethernet cable, RJ-45 socket Show
7 1 6980605 HDMI Cable Show
8 1 6980606 DAQ Cable Show
9 1 6980608 Audio cable, 3x 3.5mm jacks Show
10 1 6981182 CANbus 2.0 cable, JST 1x4 to DB9M Show

Elton includes a suite of rugged features that make it ideal for applications requiring rugged, reliable performance:

PCI/104-Express expansion: Unique in the Nvidia ecosystem, Elton bridges the world of Nvidia higher performance computing and image processing capabilities with the world of PC/104 rugged systems. Elton includes a PCI/104-Express expansion socket with PCIe x8, PCIe x1, and optional PCI expansion capabilities to enable the installation of hundreds of I/O boards to provide additional I/O capabilities.

Wide temperature operation: Elton is designed to operate over the full -40 to +85C industrial temperature range, making it the perfect companion to the ATX Xavier Industrial module for harsh environment applications.

Thicker PCB: A 50% thicker PCB (2.3mm vs. 1.6mm typical) helps resist flexing that can lead to broken solder joints in high vibration environments.

Latching connectors: Virtually all connectors offer positive latching to prevent disconnection due to shock and vibration.

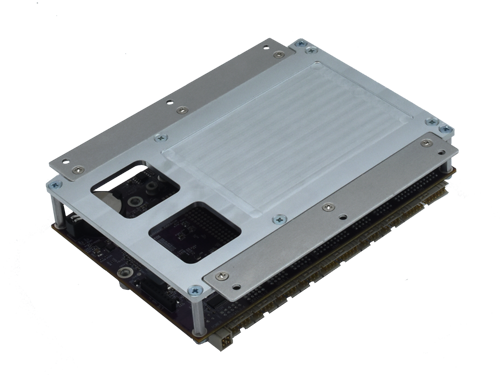

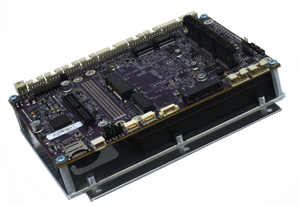

Conduction cooling: A bottom side combination heat spreader / mounting plate with embedded thermal pads provides the ultimate in thermal dissipation as well as convenient mounting inside the enclosure.

ELTON: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson AGX Xavier

Get an online quote


ELTON
Available Models:
ELT-BB01
Elton carrier board for Jetson AGX Xavier computer on module with PCIe/104 expansion
Available
ELT-BB02
Elton carrier board for Jetson AGX Xavier computer on module with PCIe/104 + PCI-104 expansion
Available
ELT-BB03
Elton carrier board for Jetson AGX Xavier computer on module, no PCIe/104 / PCI-104 expansion
test availability
ELT-AGX32-01
AGX Xavier 32GB installed on ELTON BB01 carrier board with OS installed, with heat spreader mounting plate
Available
ELT-AGX32-02
AGX Xavier 32GB installed on ELTON BB01 carrier board with OS installed, with heat spreader mounting plate
Available
ELT-AGX32-03
Elton Nvidia AGX Xavier Assembly, ELT-BB03 Baseboard, Xavier Module & OS Installed
Available
ACC-HSELT-01
Heat spreader for Elton carrier board
Available
Please login or signup for an online quote request.



Cables and accessories
Available Models:
CK-ELTON-01
Cable kit, Elton Latching type
6981507
Power Cable, IPD 2x2 to Leads, 20AV
6980524
Cable, External Battery, Molex Spox 2 Pos to Tinned Leads, 12”L
6980601
Cable, Dual Serial Port, FCI 98414 to 2x DB9M, 12"L
6980602
Cable, Dual USB 2.0, FCI 98414 to Dual Type A Panel Mount Receptacle, 12”L
6980603
Cable, USB 3.0, Latching 2x5 2mm to Type A Socket Panel Mount, 12"L
6980604
Cable, Ethernet, Latching 2x5 2mm to RJ-45 Socket Panel Moun, 12"L
6980605
Cable, HDMI, Latching 2x10 2mm to HDMI Panel Moun 12"L
6980606
Cable, DAQ, Latching 2x13 2mm to DB25F, 12"L Ribbon
6980608
Cable, Audio, Latching 2x10 2mm to 3x 3.5mm Stereo Jacks, 12"L
6981182
CANbus 2.0 cable, JST 1x4 to DB9M
Please login or signup for an online quote request.

Product Support for ELTON

User Manual

Elton user manual(.pdf, 3.7 MB)
Revision 1.04
Technical Documents

Jetson AGX Xavier Thermal Design Guide(.pdf, 1.5 MB)
Mechanical Drawing

Elton Base Board 3D(.zip, 31.0 MB)
Elton base board 3D
Elton Base Board w/Heat Spreader 3D(.zip, 34.3 MB)
Elton Base Board w/Heat Spreader 3D
Elton Base Board w/HS BRKT 3D(.zip, 34.5 MB)
Elton Base Board w/Heat spreader and bracket 3D
Elton Base Board w/Module 3D(.zip, 32.8 MB)
Elton Base Board w/Module 3D
Board Support Package

Elton BSP(.gz, 2.2 GB)
Ver 3.0
Elton BSP MD5SUM(.txt, 64.0 bytes)
Elton BSP No LCD(.zip, 2.1 GB)
ver 3.0
Elton BSP release documentation(.txt, 2.1 KB)
FEATURES
Size: 4" x 6.00" / 101.6 x 152.4mm
Input voltage 9-20VDC
On-board features:
I/O breakout from Xavier board:
   2x USB 3.1
   2x USB 2.0
   2x Gigabit Ethernet
   1x HDMI
   1x LVDS LCD
   4x RS-232/RS485/RS422
   2x CAN 1Mbps
   Audio
SAM DAQ circuit:
   6 12-bit A/D, 0-3.3V input range, up to 1MSPS sampling rate
   2 12-bit D/A, 0-3.3V output range
   13 GPIO, 3.3V logic levels
Socketed features:
Camera module connector supports up to 6x 2-lane CSI cameras
UFS flash socket
M.2 PCIe x4 socket (2242 size)
1x Nimbelink™ Skywire® modem socket
PCI-104 Express expansion socket:
   PCI-104 connector for PCI bus
   3-bank PCIe/104 Type 1 connector with 1x PCIe x8 and 4x PCIe x1
   The PCIe/104
ONLINE SUPPORT
See ELTON Technical Resources
