Products   >   Processor Modules   >   Single Board Computers   >   sabrecom300
      SABRECOM300  SabreCom-300   COMExp    PCIe104
sabrecom300: Processor Modules, Rugged, wide-temperature SBCs in PC/104, PC/104-<i>Plus</i>, EPIC, EBX, and other compact form-factors.,
OverviewBlock
Diagram
Ordering
Information
Support

SabreCom-300 series systems combine a full-featured x86 SBC with a managed Ethernet switch in a rugged, sealed enclosure designed to withstand the harshest of environments. All boards and components are tested or designed to meet MIL-STD-202 and -810 levels of shock and vibration. The flexible architecture supports multiple options for SBC configuration, solid-state mass storage, operating system, Ethernet switch, power supply, and I/O:

SBC

Sabrecom-300 is designed around Diamond’s Venus and Jasper rugged SBCs. Choose from a variety of Intel Core i7 processors from 7th up to 13th generation, with 20-64GB RAM, depending on your power, performance, and budget.

Mass Storage

Choose from a range of solid state SATA mass storage devices ranging from 128GB up to 2TB.

Operating System

Choose from Linux or Windows 10 64-bit OS with full BSP support for all I/O available on the SBC.

Ethernet Switch

Choose from 7 or 15 1Gb copper ports with Layer 2 management software built in.

Power Supply

For full performance a rugged power supply with 9-60VDC input, MIL- STD-461/704/1275 filtering, and isolation is available. For more economical solutions a MIL-STD-461 filter board can be installed, reducing the input voltage range to the SBC’s native input range.

I/O

Each system includes most or all available I/O on the integrated SBC. On systems using the Jasper SBC, an optional 16-bit analog I/O circuit is available. I/O expansion can be accomplished by installing up to 1 PCIe104 module or up to 2 PCIe/USB minicards. Space is available on the front panel to install I/O connectors for the additional I/O. High- speed interfaces such as USB3.0 and HDMI are supported via dedicated high-speed connectors.

Description

SabreCom-300 can accommodate up to 1 PCIe104 module or up to 2 PCIe/USB minicards. Depending on the nature and number of added I/O signals, The I/O may be combined onto existing connectors, or new connectors may be added to the front panel, involving a nominal design fee.

sabrecom300: Processor Modules, Rugged, wide-temperature SBCs in PC/104, PC/104-<i>Plus</i>, EPIC, EBX, and other compact form-factors.,

sabrecom300: Processor Modules, Rugged, wide-temperature SBCs in PC/104, PC/104-<i>Plus</i>, EPIC, EBX, and other compact form-factors.,

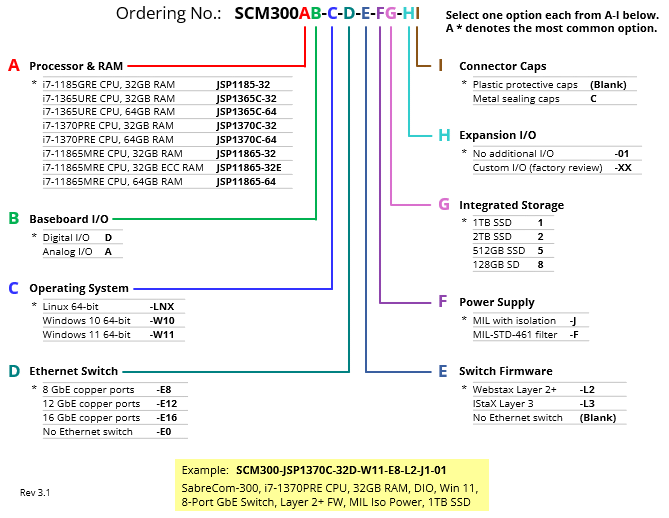

SabreCom-300 systems offer a large number of standard configuration options. They can also be customized with more I/O or modified connector types and pinouts. All the standard options are shown in our configuration worksheet. You can download the worksheet, fill it in, and submit it to us to request a quote.

Available options include:

  • Choice of processor and RAM capacity
  • Operating system (Windows 10 / Ubuntu Linux)
  • Ethernet switch port count
  • Integrated power supply
  • Integrated SSD
  • Custom I/O using PCIe minicard and PCIe104 modules

sabrecom300: Processor Modules, Rugged, wide-temperature SBCs in PC/104, PC/104-<i>Plus</i>, EPIC, EBX, and other compact form-factors.,

Product Support for sabrecom300

FEATURES
Intel Core-i7 7 th , 11 th , or 13 th gen processor
20-64GB RAM
128GB-2TB integrated solid state flashdisk
Choice of Linux or Windows 64-bit OS
7 or 15 1Gb copper Ethernet ports with Layer 2 management software
HDMI, USB3, USB2, RS-232/422/485, and GPIO (quantity varies by SBC)
Optional 16-bit data acquisition with autocalibration
Customizable with I/O expansion modules
Choice of MIL-STD-461 filter or isolated power supply with MIL-STD-461/704/1275 filtering
Rugged enclosure with IP67 rating
MIL-DTL-38999 connectors for power and general I/O
Specialized high-speed connectors for HDMI and USB 3.0
Designed to meet MIL-STD-810H shock and vibration requirements
Internal boards qualified for MIL-STD-202H shock and vibration requirements
-40 to +75C operating temperature
