Products   >   Nvidia Solutions   >   NVIDIA Solutions   >   OSBOURNE
      OSBOURNE  Carrier and Development Kit for NVIDIA Jetson AGX Orin   nvidia
OverviewBlock
Diagram
Ordering
Information
Support

Osbourne is a versatile carrier board for the NVIDIA Jetson AGX Orin high-performance GPU module. It provides access to all I/O features of the Orin module and includes numerous sockets for I/O expansion. Osbourne has been designed to be used in almost any application ranging from commercial to industrial to airborne to rugged military use.

Key highlights of Osbourne include:

  • Industry-standard camera adapter socket for use with a wide range of CSI, GMSL, and other cameras
  • 10Gb Ethernet + 1GB Ethernet ports
  • Wide temperature operation – matching the range of the Orin module
  • Dual minicard sockets with PCIe and USB interfaces
  • Dual M.2 sockets for flash memory (M key 2242/2280) and network connectivity (E key 2230)
  • I/O concentrator connector enables use with standard and custom I/O breakout boards

Osbourne is available as a carrier board alone or with an Orin module and fan sink installed and ready for use. A Linux OS based on Nvidia L4T and customized to support all I/O on Osbourne is available for free download.

Flexible I/O Connector Design

All I/O on Osbourne is accessed through a single high-speed, high-density connector along the board edge. This decouples the board design from any specific I/O connector arrangement and frees you to select whatever I/O connector scheme you want. Standard connector boards are available for typical use cases, including a panel-mount connector board for installation in an enclosure and a breakout board for use with cables.

OSBOURNE: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson AGX Orin

Panel I/O Board

The Panel I/O board provides the ability to install Osbourne directly into an enclosure without the use of cables. All I/O is provided on a series of commercial-style connectors designed to be mounted in an enclosure front panel.

OSBOURNE: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson AGX Orin

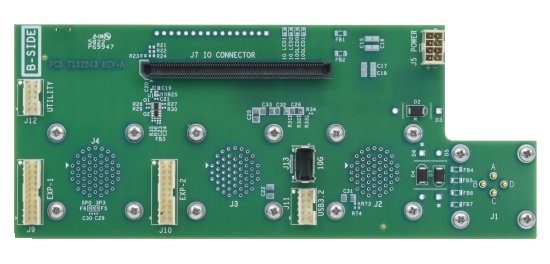

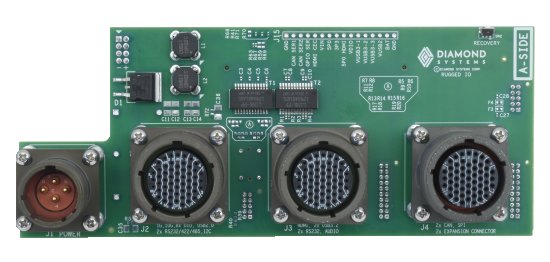

Panel I/O boards can also be designed with right-angle orientation. Below is an example of a connector board with MIL-DTL-38999 connectors for a rugged system using Orin.

I/O Expansion

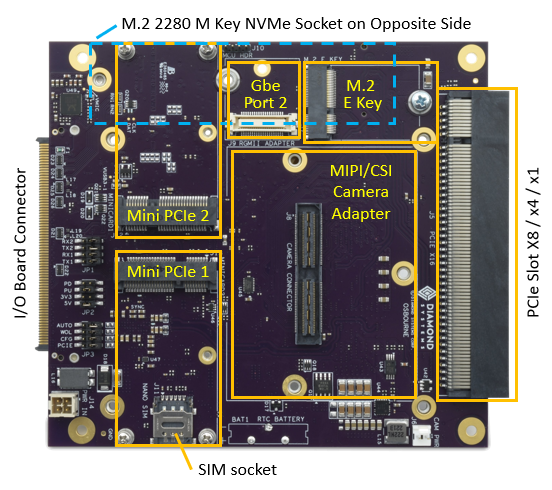

Osbourne includes dual PCIe minicard sockets with both PCIe and USB interfaces, supporting a wide range of I/O and communications/networking modules from Diamond as well as third party vendors. It includes an M.2 E key socket for installation of WiFi and other networking modules. Also a PCIe slot connector enables attachment of standard desktop-style PCIe slot I/O boards with PCIe x8 / x4 / x1 connection.

Mass storage is provided with an M.2 2242/2280 NVME socket and a Micro-SD card socket.

OSBOURNE: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson AGX Orin

Osbourne makes available all the I/O of the Orin module in UPHY configuration 1, so application developers have access to all features without limitation.

OSBOURNE: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson AGX Orin

Get an online quote


OSBOURNE
Available Models:
OSB-BB01
Osbourne carrier board for NVIDIA Jetson AGX Orin
Available
OSB-ASY-01
Osbourne Carrier Board With OSB-PNL01 I/O Board Integrated Assembly
Available
OSB-ASY-0132-E1F0
Osbourne carrier board with Orin 32GB module installed, OS loaded, fan sink
Available
OSB-ASY-0132-E1F1
Osbourne carrier board with Orin 32GB module installed, OS loaded, fan sink, 1TB NVMe SSD
Available
OSB-ASY-0164-E1F1
Osbourne carrier board with Orin 64GB module installed, OS loaded, fan sink, 1TB NVMe SSD
Available
OSB-ASY-0164XT-E1F1
Osbourne carrier board with Orin 64GB Industrial module installed, OS loaded, fan sink, 1TB NVMe SSD
Available
OSB-PNL01
Osbourne commercial I/O adapter, jumper configured ports
Available
OSB-PNLR02

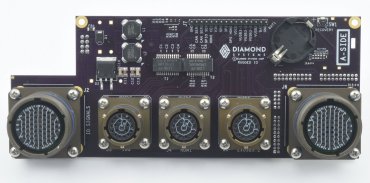

Osbourne Rugged Panel I/O Board with MIL-DTL-38999 and SJT Connectors; with I/O expansion support
Coming Soon
OSB-PNLR02A
Osbourne Rugged Panel I/O Board with MIL-DTL-38999 and SJT Connectors; no I/O expansion support
Coming Soon
Please login or signup for an online quote request.

Product Support for OSBOURNE

User Manual

Osbourne user manual(.pdf, 1.9 MB)
Datasheet

NVIDIA Jetson AGX Orin Datasheet v1.2(.pdf, 783.7 KB)
Technical Documents

Nvidia AGX Orin Technical Brief(.pdf, 929.8 KB)
Osbourne Panel IO Board Design Guide V1.0(.pdf, 1.3 MB)
Mechanical Drawing

Osbourne + panel I/O assembly mechanical drawing(.pdf, 158.3 KB)
FEATURES
3x USB 3.2 ports
4x USB 2.0 ports
1x 1G/2.5G/5G/10G Multi-Gigabit Ethernet port
1 10/100/1000Mbps Ethernet Port
4 x4 or 8 x2 lane CSI-2 camera Interface using industry-standard adapter socket
2x software configurable RS-232/422/485 ports with TTL option on one port
2x fixed RS-232 ports
1x HDMI 2.0a/b directly from Orin module
Audio I/O via ALC5640 CODEC
8 Digital I/O via I2C I/O expander
2x CAN 2.0 ports with non-isolated transceivers
2x mPCIe full-size sockets with PCIe and USB support
1 M.2 M Key (2280 or 2242) NVMe expansion slots (4 lane PCIe Gen 3)
1 M.2 E key 2230 socket
Dimensions 120 x 115mm / 4.7 x 4.5” (Carrier board only)
Power input 7-20VDC
Operating temperature -25 to +80C (same as Orin module)
