| Pandora for Diamond SBCs |
| Rugged enclosure for Diamond Systems PC/104 SBCs: Athena III, Aurora, Helios & Rhodeus
| |
| |
|
Description |
Pandora is a compact, light weight, rugged enclosure
system for Diamond Systems’ PC/104 form factor single
board computers. Pandora offers a unique approach to packaging by
eliminating most internal cables. This speeds up the
assembly process and improves reliability and
ruggedness.
In the Pandora system, one end cap serves
as a base plate on which the PC/104 stack is assembled
with the panel I/O board atop the stack. Once the stack
is complete, it is inserted into the enclosure and bolted
into place with direct connections to both the top and
bottom of the enclosure for extra rigidity. The
rear/bottom panel provides convenient holes for
mounting the stack.
The Pandora enclosure, coupled with the panel I/O board, features fast and easy assembly because most or all internal cables can be eliminated. Rather than requiring the installation of special corner mounts or forcing the stack into a set of corner guides, the entire stack is bolted directly to the front plate of the case, forming a rugged, easily-handled assembly.
|

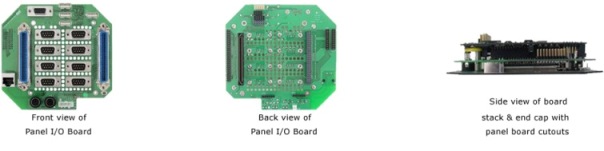

Panel I/O Board |
Our unique Panel I/O Board system is offered on most of our PC/104 single board computers and provides industry standard I/O connectors for the I/O, including CRT, Ethernet, USB, Serial, Parallel, PS/2,
and data acquisition. Status LEDs and PC speaker are also included.
For use with Aurora SBCs is the Aurora panel I/O board, PNL-AUR-01. For use with Athena III SBCs is the PNL-ATHE-01 panel I/O board. For use with Helios SBCs is the Helios panel I/O board, PNL-HLV-01. For use with Rhodeus SBCs is the Rhodeus panel I/O board, PNL-RDS-01.
The panel I/O board can also accommodate I/O output from one or two add-on PC/104 modules without requiring costly and time consuming custom enclosure design. One pin header can be used with any PC/104 board with a 50-pin I/O connector.
Power input is through a 4-pin Molex connector. Both regulated 5V and unregulated 7VDC-28VDC inputs are supported. An on-off power switch is provided.
|
Pandora Case |
The PC/104 Pandora case measures 5.5" wide by 5.75" high. It comes in four lengths:
- The 1.7"(43.18mm) case accommodates the SBC, the panel I/O board, and an optional notebook hard drive.
- The 3.0"(76.2mm) case accommodates the SBC, panel I/O board, up to two additional PC/104 boards, and an optional notebook hard drive.
- The 5.0"(127mm) case accommodates the SBC, panel I/O board, up to five additional PC/104 boards,
and an optional notebook hard drive.
- The 7.0"(178mm) case accommodates the SBC, panel I/O board, up to seven additional PC/104
boards, and an optional notebook hard drive.
|
PBEC-00-K: Blank end plate
|
|
PBEC-01-K: Top of stack end plate
|
|
PBEC-02-K: Bottom of stack end plate
|
|
PBEC-14-K: Front cap for PNL-HLV-01 Panel I/O Board
|
|
PBEC-15-K: Front cap for PNL-RDS-01 Panel I/O Board
|
|
PBEC-16-K: Rear cap for Rhodeus SBC
|
|
PBEC-19-K: Front cap for PNL-AUR-01 Panel I/O Board
|
|
PBEC-20-K: Rear cap for Aurora SBC
|
|
PBEC-21-301: Front cap for PNL-ATHE-01 Panel I/O Board
|
|

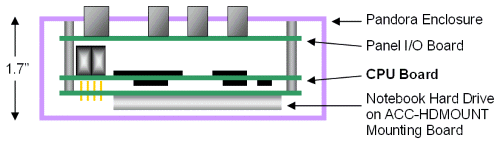

Interior view of Pandora case showing ACC-HDDMOUNT accessory board for
mounting a notebook hard drive conveniently on the PC/104 stack.
|
Case lengths accommodate PC/104 boards with stackthrough configuration (long pins on the bottom side) at the bottom of the stack so no special effort is required to obtain non-stackthrough boards or to cut the connector pins. The length is also sufficient to enable mounting a notebook hard drive below the bottom board and attaching it to the rear end plate.
The 3.0" length is designed with the intention of accommodating two additional boards. A typical configuration might include a VGA board and a DC/DC power supply for use in mobile applications. However any two boards can be installed.
The interior cavity is wide enough to install any PC/104 board with almost any I/O connector, including pin headers with ejector latches.
Each Pandora case includes case body, front plate to accommodate the panel board, rear plate, and all mounting hardware (screws and spacers). Additional end plates are available separately.
Assembly Method
Installation of boards inside Pandora is as follows. The panel I/O board first mounts on top of the SBC. Spacers are installed between the two boards and above the panel board. The panel board is then fitted to the case front plate and attached using 4 screws driven into the spacers as well as screwlocks driven into the 7 Dsub connectors on the panel board. In this fashion the entire SBC assembly is mounted directly and securely to the end plate. This assembly can now be easily attached to the front of the case body using 8 flathead screws. (All necessary hardware is provided with the case and/or the panel I/O board.) The rear plate can now be attached with 8 more screws, and the assembly is complete.

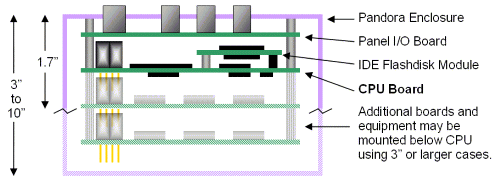

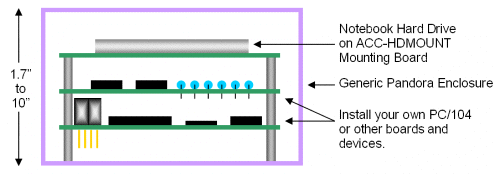

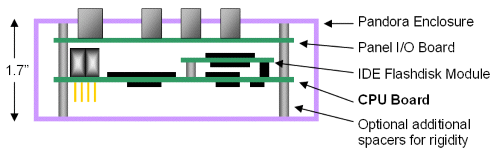

Pandora Cross Section Drawings
The following cross-section drawings illustrate the relative positions of the components inside the 1.7" and larger cases. These can serve as a quick overview of the proper assembly method. We recommend you start with the face plate and work your way down to ensure that all the mounting hardware aligns properly.
Front and Rear End Plates
The standard Pandora package includes a front end plate containing cutouts for use with the panel I/O board specific to the SBC (models with and without the data acquisition cutout are available). The rear end plate contains PC/104 mounting holes that may be used to attach to the bottom of the stack using additional spacers if desired for extra rigidity, although for a 2-board system these are not needed. The lengths of the cases have been selected to allow the use of standard PC/104 spacers, such as Diamond Systems' SPC-104.
Each Pandora case includes a case body, front plate to accommodate the panel I/O board, rear plate, and all mounting hardware (screws and spacers). Additional end plates are available separately.
|
The PC/104 System with UPS |
This PC/104 system with UPS
- PC/104 SBC with data acquisition
- HESC-104 power supply with battery charger
- BAT104-NiMh backup battery
|
|
...fits into this compact Pandora enclosure!
- Dimensions 5.5" x 5.75" x 3.0"
- Quick, rugged assembly
- Only 1 small cable is required!
(Power input to HESC-104, battery to HESC-104)
- -40ºC to +85ºC operation
|
|
PC/104 Stack Height (inches/mm)
# Boards |
1st Board / Non-Stackthrough(inches/mms) |
1st Board / Stackthrough (inches/mms) |
1 |
0.60 / 15.2 |
0.92 / 23.4 |
2 |
1.26 / 32.1 |
1.58 / 40.2 |
3 |
1.92 / 48.9 |
2.24 / 57.0 |
4 |
2.59 / 65.7 |
2.91 / 73.8 |
5 |
3.25 / 82.5 |
3.57 / 90.6 |
6 |
3.91 / 99.3 |
4.23 / 107.4 |
7 |
4.57 / 116.1 |
4.89 / 124.3 |
8 |
5.23 / 132.9 |
5.55 / 141.1 |
|
Ordering Guide |
Select length < L > in part numbers below: |
< L >: |
170 1.7" / 43mm 300 3.0" / 76mm 500 5.0" / 127mm 700 7.0" / 178mm |
PB-< L >-K |
Pandora generic enclosure; specify length |
PB-ATHE-300-K |
Pandora enclosure for Athena III SBCs |
PB-AUR-170-K |
Pandora enclosure for Aurora SBCs |
PB-HLV-< L >-K |
Pandora enclosure for Helios SBCs |
PB-RDS-< L >-K |
Pandora enclosure for Rhodeus SBCs |
PNL-ATHE-01 |
Panel I/O board for Athena III SBCs |
PNL-AUR-01 |
Panel I/O board for Aurora SBCs |
PNL-HLV-01 |
Panel I/O board for Helios SBCs |
PNL-RDS-01 |
Panel I/O board for Rhodeus SBCs |
PBEC-00-K |
Blank end cap |
PBEC-01-K |
Blank front end cap with PC/104 mounting holes |
PBEC-02-K |
Blank rear end cap with PC/104 mounting holes |
|
Models and Accessories |
|
|
Pandora for Diamond SBCs |
|
|
|
|
|
Pandora Enclosure, 3.0"L, for Athena III SBC, Blue |
|
|
|
|
|
Pandora Enclosure, 1.7", with Helios panel I/O board and front panel |
|
|
|
|
|
Pandora Enclosure, 3.0", with Helios panel I/O board and front panel |
|
|
|
|
|
Pandora Enclosure, 5.0", with Helios panel I/O board and front panel |
|
|
|
|
|
Pandora Enclosure, 7.0", with Helios panel I/O board and front panel |
|
|
|
|
|
Pandora Enclosure, 1.7", with Rhodeus panel I/O board and front panel |
|
|
|
|
|
Pandora Enclosure, 3.0", with Rhodeus panel I/O board and front panel |
|
|
|
|
|
Pandora Enclosure, 5.0", with Rhodeus panel I/O board and front panel |
|
|
|
|
|
Pandora Enclosure, 7.0", with Rhodeus panel I/O board and front panel |
|
|
|
|
|
Athena III Panel I/O Board with mounting hardware |
|
|
|
|
|
Helios Panel I/O Board with mounting hardware |
|
|
|
|
|
Cable, Centronics 50 pin to IDC 50 pin |
|
|
|
|
|
Pandora Helios Enclosure front end cap with cutouts and mounting holes for PNL-HLV-01 |
|
|
|
|
|
Pandora Rhodeus enclosure front end cap with cutouts & mounting holes for PNL-RDS-01 |
|
|
|
|
|
Pandora Rhodeus Rear / Wall Mount Panel, 4 holes |
|
|
|
|
|
Pandora Enclosure front end cap with cutouts and mounting holes for PNL-ATHE-01 panel board, blue, with silkscreen |
|
|
|
|
|
Pandora End Cap, Aries SBC, Rear, Heat Plate, Clear |
|
|
|
|
|
Pandora blank end cap, black |
|
|
|
|
|
Pandora blank front end cap with PC/104 mounting holes, black |
|
|
|
|
|
Pandora blank rear end cap with PC/104 mounting holes, black |
|
|
|
|
|
