ZIGGYBOX  Compact, cost-effective system for NVIDIA Jetson TX2/TX2i modules
   nvidia

ZiggyBox: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson TX2/TX2i
ZiggyBox: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson TX2/TX2i
Ziggy carrier board and TX2 module installed inside ZiggyBox
FEATURES
1x 10/100/1000 Ethernet (RJ-45)
1x USB 3.0 Type A + 1x USB 2.0 Type A
1x USB 2.0 micro with OTG support
1x HDMI
2x RS-232
6x analog inputs, 12-bit resolution, 0-3.3V output range, up to 1Msps throughput
2x analog outputs, 12-bit resolution, 0-3.3V output range
12x digital I/O, 3.3V logic levels
Input voltage: 9-15VDC (with TX2 installed) / 9V-19VDC (with TX2i installed)
Dimensions: 63x67x96mm / 2.4x2.6x3.7"
Operating temperature: -40°C to +85°C

Miniature, Low Cost Solution

The ZiggyBox provides a compact and highly cost effective solution for AI at the edge and machine learning applications for industrial and lab applications. It is based oround the NVIDIA® Jetson™ TX2/TX2i advanced computing module with NVIDIA Pascal™-family GPU technology. The Jetson module is housed in a rugged miniature enclosure measuring only 2" x 3.5" (5 cm x 9 cm).

ZiggyBox offers easy access to the most popular Jetson I/O features, including Ethernet, USB 3.0 / 2.0 / OTG ports, HDMI display, and 2 RS-232 ports. The built-in carrier board adds a valuable data acquisition circuit with real-world analog and digital I/O features and software support. An integrated heat sink provides reliable operation at up to 85°C without forced air. With its integrated Linux OS and table-top / DIN rail mounting options, ZiggyBox is ready to be deployed wherever the combination of high-performance computing and ultra-compact size are required.

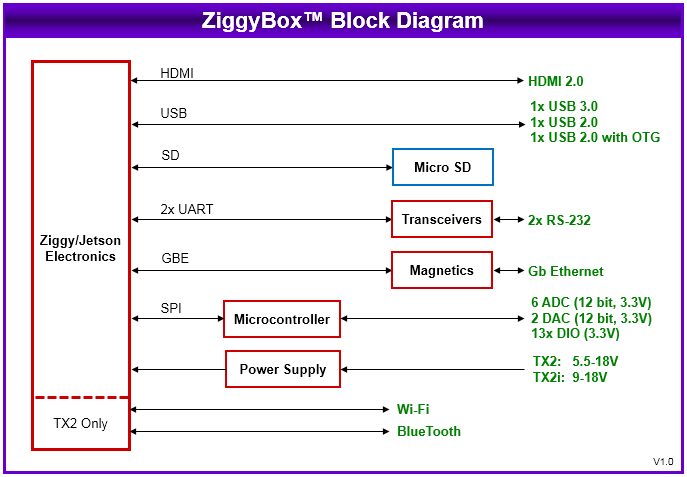

Ziggy Block Diagram

ZiggyBox: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson TX2/TX2i

Data Acquisition

ZiggyBox contains a full-fledged analog and digital I/O circuit that provides control and monitoring of real-world events such as sensor inputs, temperature control, keypads/switches, and industrial processes. The 6 analog inputs feature 0-3.3V input range and programmable 12-bit up to 16-bit resolution, with user-controllable filtering and averaging for noise reduction. The 2 analog outputs offer 12-bit resolution and 0-3.3V output range. The 13 DIO feature 3.3V logic levels. All features are supported by Diamond's built-in data acquisition driver software, featuring a programming library with application demos plus an interactive GUI-based control program that offers real-time access and control.

ZiggyBox: Nvidia Solutions, NVIDIA Jetson Embedded Computing Solutions, NVIDIA Jetson TX2/TX2i

Models and Accessories


ZiggyBox
Available Models:
ZIGGYBOX-20-HD
ZiggyBox with TX2 module, heat sink (no fan), DIN bracket
EOL
ZIGGYBOX-21-HD
ZiggyBox with TX2i Industrial module, heat sink (no fan), DIN bracket
EOL
Please login or signup for an online quote request.
