Products   >   Ethernet Switches

Ethernet Switches


Diamond Systems offers a variety of small form factor, managed Layer 2+ switching and Layer 3 routing/switching Ethernet switches with various combinations of 1G and 10G ports. Diamond Ethernet switches are optimized for use in rugged and industrial applications and are found in transportation, medical, aerospace and defense and other applications operating in the harshest environments.

All I/O connectors on our switches are latching, providing enhanced reliability over the RJ-45 connectors used in commercial Ethernet switches. A 50% thicker PCB provides better protection against vibration in vehicle environments. The -40ºC to +85ºC operating range makes DSC Ethernet switches suitable for use in outdoor and vehicle applications. Ultra-wide input voltage is standard on all standalone products, enabling easier integration into larger systems. Most products offer heat spreader cooling, which provides superior thermal management over traditional heat sinks. This is especially important for high-port-count applications with 10G ports in high temperature environments, where reliable operation is essential to mission success.

All switch functions are managed by a microprocessor embedded directly into the switch running advanced layer 2 or layer 3 software. The processor is accessed via an in-band web interface over one of the Ethernet ports or via an out-of-band command-line interface over an RS-232 serial port. The integrated web interface provides an intuitive GUI for use in configuring and managing all switch functionality. On-board memory holds dual application images, boot code, MAC addresses, and other parameters, and can also be used for program execution.

In addition to full-featured standalone switches, Diamond offers compact, feature-rich switch modules, which provide the core switching hardware and software technology in a compact subassembly, similar to a COM. These modules can be easily integrated onto customer-design boards, enabling the rapid creation of custom switch solutions with low risk and high functionality. Typically only the “last inch” of magnetics and connectors is needed to convert the switch module into a complete switch solution. Our ultra-rugged SabreNet switches utilize the same board-level products shown here.

ProductDescriptionCopper
Ports
Fiber PortsForm
Factor
Dimensions

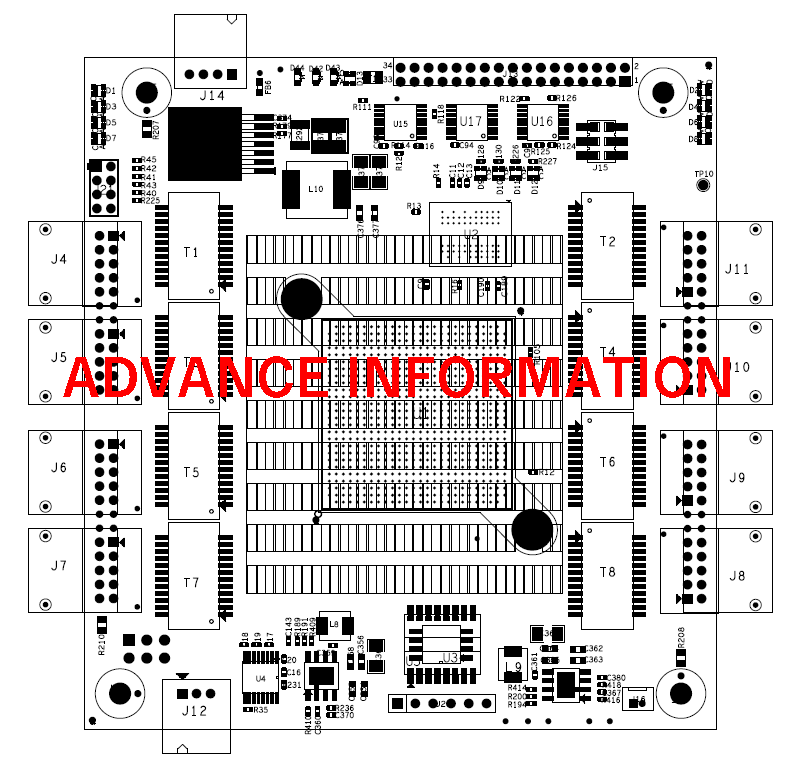

EPS-8100
Layer 2+ managed 8-Port Gigabit Ethernet switch8PC/1043.550 x 3.775"

EPS-12G2
EPS-12G2

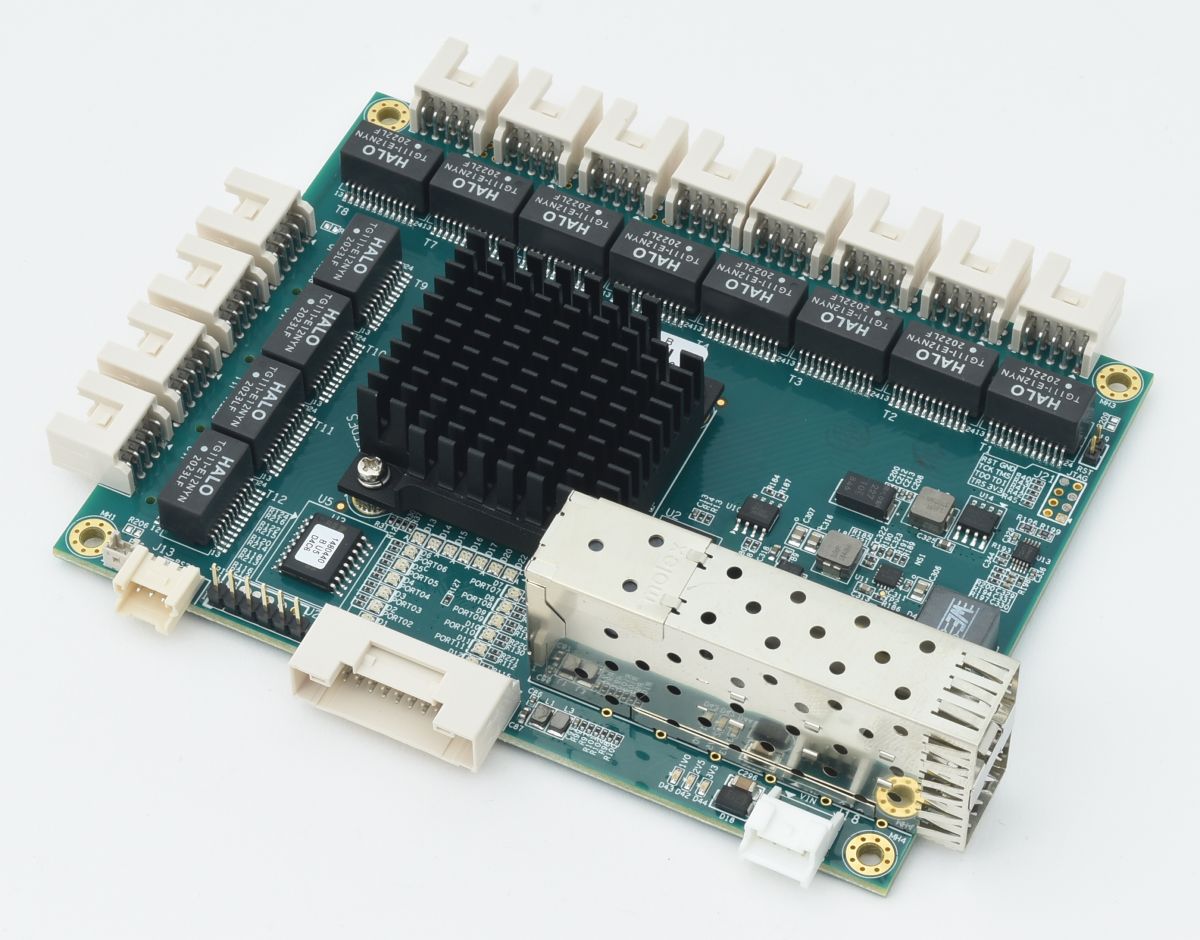

Layer 2+ managed 12-Port Gigabit Ethernet Switch
122 1G/2.5GCOM Express95mm x 125mm
EPS-12G1
Layer 2+ managed 12-Port Gigabit Ethernet Switch
121 1G/2.5GCOM Express95mm x 125mm
EPS-12G0
Layer 2+ managed 12-Port Gigabit Ethernet Switch
12COM Express95mm x 125mm

EPS-12000-CM

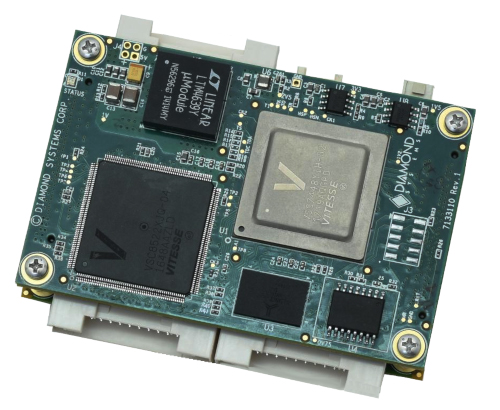

Layer 2+ / Layer 3 managed 12-Port Gigabit Ethernet Switch12COM Express Mini84mm x 55mm

EPS-24000
EPS-24026-104
Layer 2+ managed 26-Port Gigabit Ethernet switch
242 1G/2.5GPC/1044.550 x 3.775"
EPS-24016-104
Layer 2+ managed 16-Port Gigabit Ethernet switch

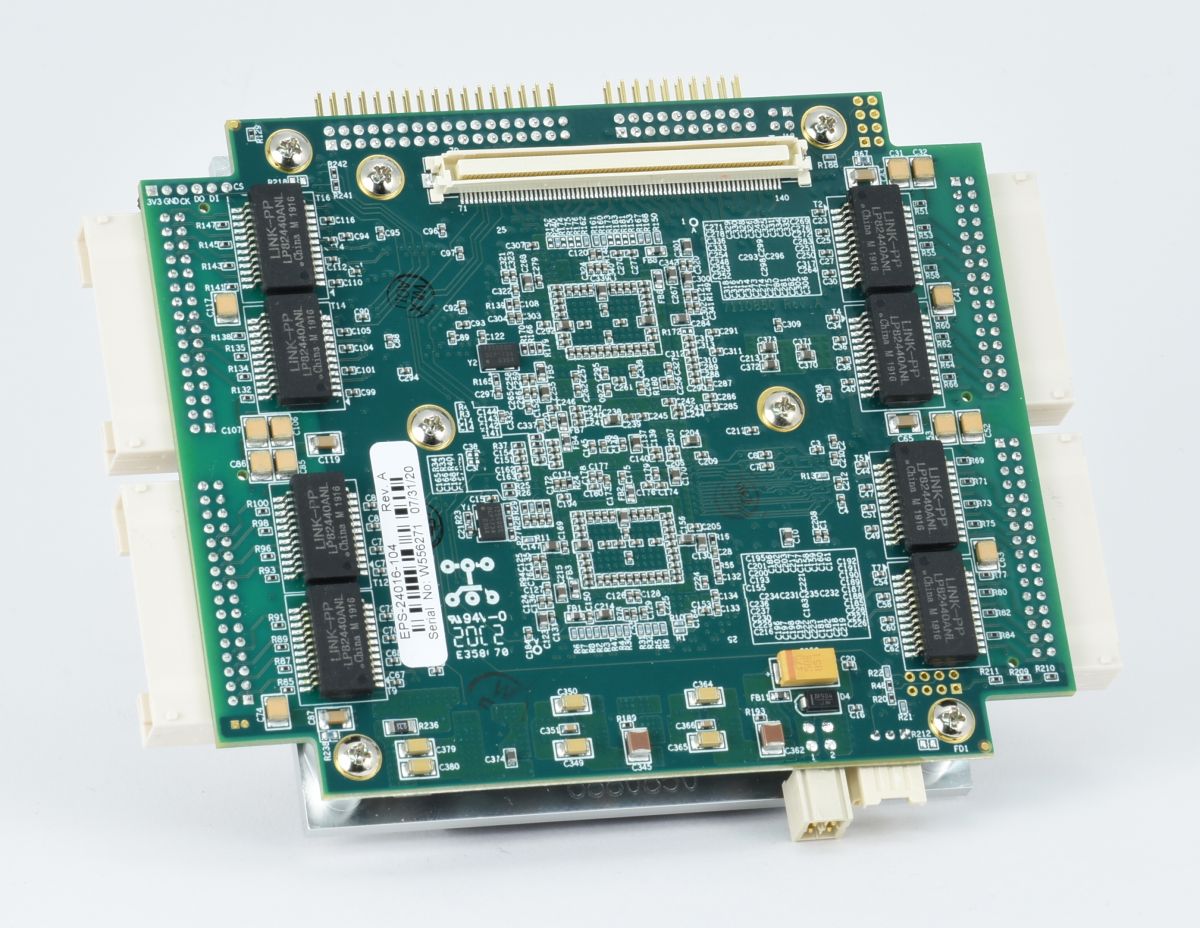

16PC/1044.550 x 3.775"

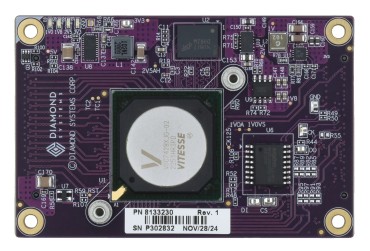

EPSM-12G2F
Layer 2+ managed 26-Port Gigabit Ethernet switch module242 1 / 2.5GCOM Express Mini84x55mm / 3.3x2.2”

EPSM-10GX
Layer 2+ / Layer 3 managed 26-Port Gigabit Ethernet switch module242 10GCOM Express Mini84x55mm / 3.3x2.2”

EPSM-10GX4

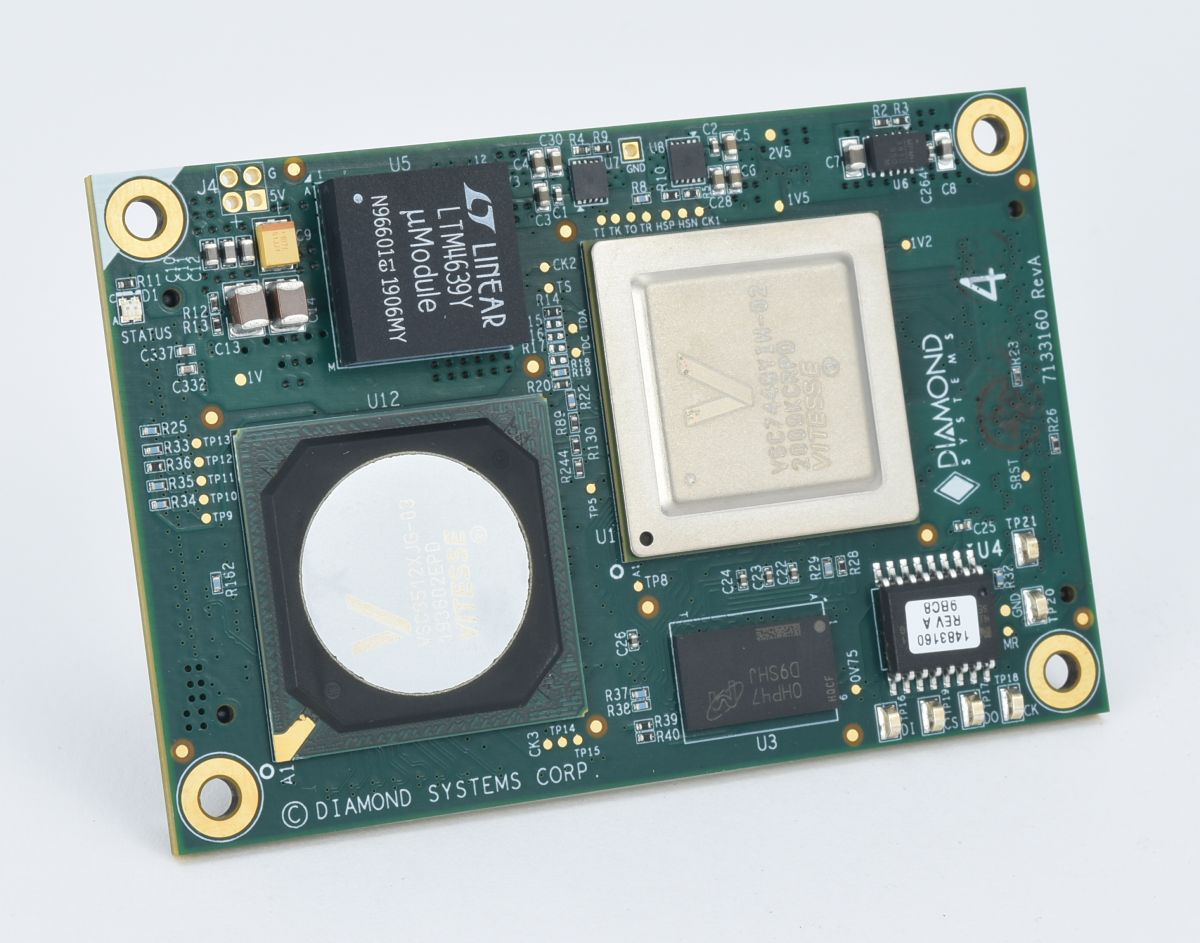

Layer 2+ / Layer 3 managed 28-Port Gigabit Ethernet switch module244 10GCOM Express Mini84x55mm / 3.3x2.2”

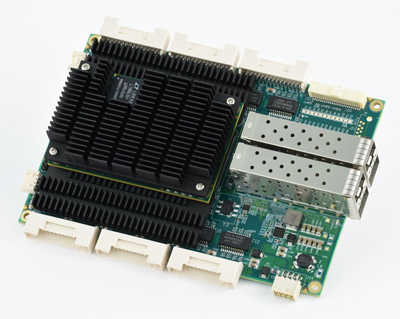

EPS-24G4X
Layer 2+ / Layer 3 managed 28-Port Gigabit Ethernet Switch244 10G6.1x4.2”
