Description

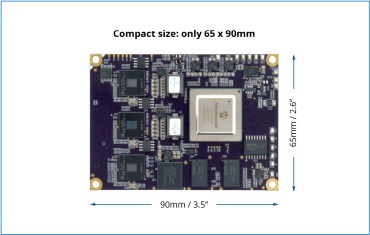

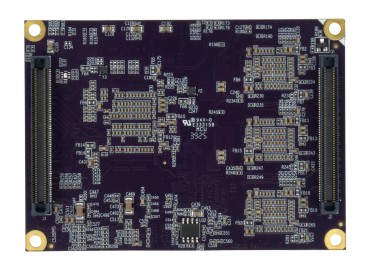

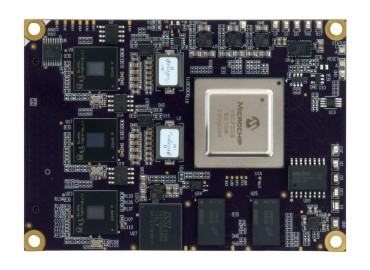

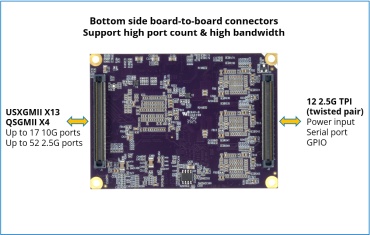

The EPSM-10GX12 is a high bandwidth, high port-count managed Ethernet switch module in a compact 2.56" x 3.54" (65 x 90mm) size offering up to 70 2.5Gbps copper ports, 12 10Gbps SFI ports, and 180Gbps total bandwidth. The module is intended to be used on a carrier board to implement a complete Ethernet switching solution. The core Ethernet switching technology is almost fully encapsulated on the module; for many applications, only the "last inch" of magnetics and I/O connectors is required to complete the circuit, enabling easy development of custom form factor compact, rugged Ethernet switch solutions.

The small size makes EPSM-10GX12 a perfect choice for use as a building block for creating custom Ethernet switch solutions in a variety of space-demanding applications,such as drones, ground and underwater vehicles, and robots. A typical application combines the EPSM-10GX12 with a high-performance COM to create a thin, high- performance embedded computing platform for aviation, military, and other applications where size and weight are critical factors.

A development kit is available providing a ready-to-use complete switch based onEPSM-10GX12 and including complete schematics for the carrier board along with a design guide.

Customers looking for a complete off-the-shelf solution may be interested in our EPS-25000 product line, which provides all of the switch's features in a compact, rugged 2-or 3-board stack with integrated latching I/O connectors and SFP+ socket. Diamond Systems also offers custom carrier board design and manufacturing services to provide a perfect fit solution for your application.

Embedded Software

The Layer 3 embedded software provided with EPSM-10GX12 offers an impressive array of features for management of embedded networks. A partial list of features is shown below. Download the complete feature list here

• VLAN
• MSTP
• RSTP
• Link aggregation
• IGMP snooping
• Port mirroring
• Software- and hardware-based IPv4 / IPv6 L3 static routing
• QoS
• Storm control
• Port and Queue policers
• Port-based single and multiple 802.1x
• RADIUS accounting
• JSON-RPC
• IPv4/IPv6 ping and traceroute
• Port speed/duplex mode/flow control
• 802.1Qbb priority-based flow control
• Jumbo frame support
• Link monitoring
• Port statistics
